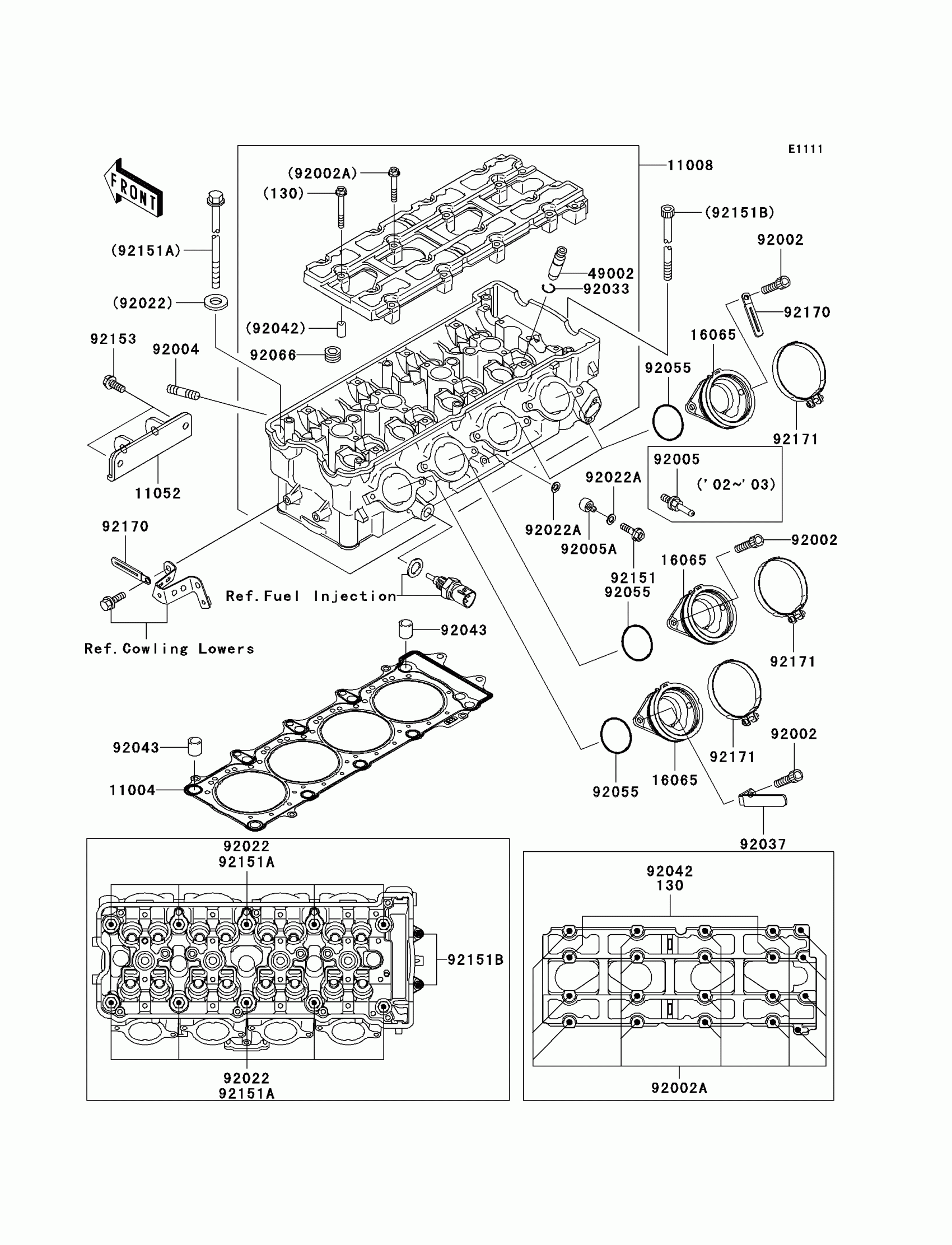

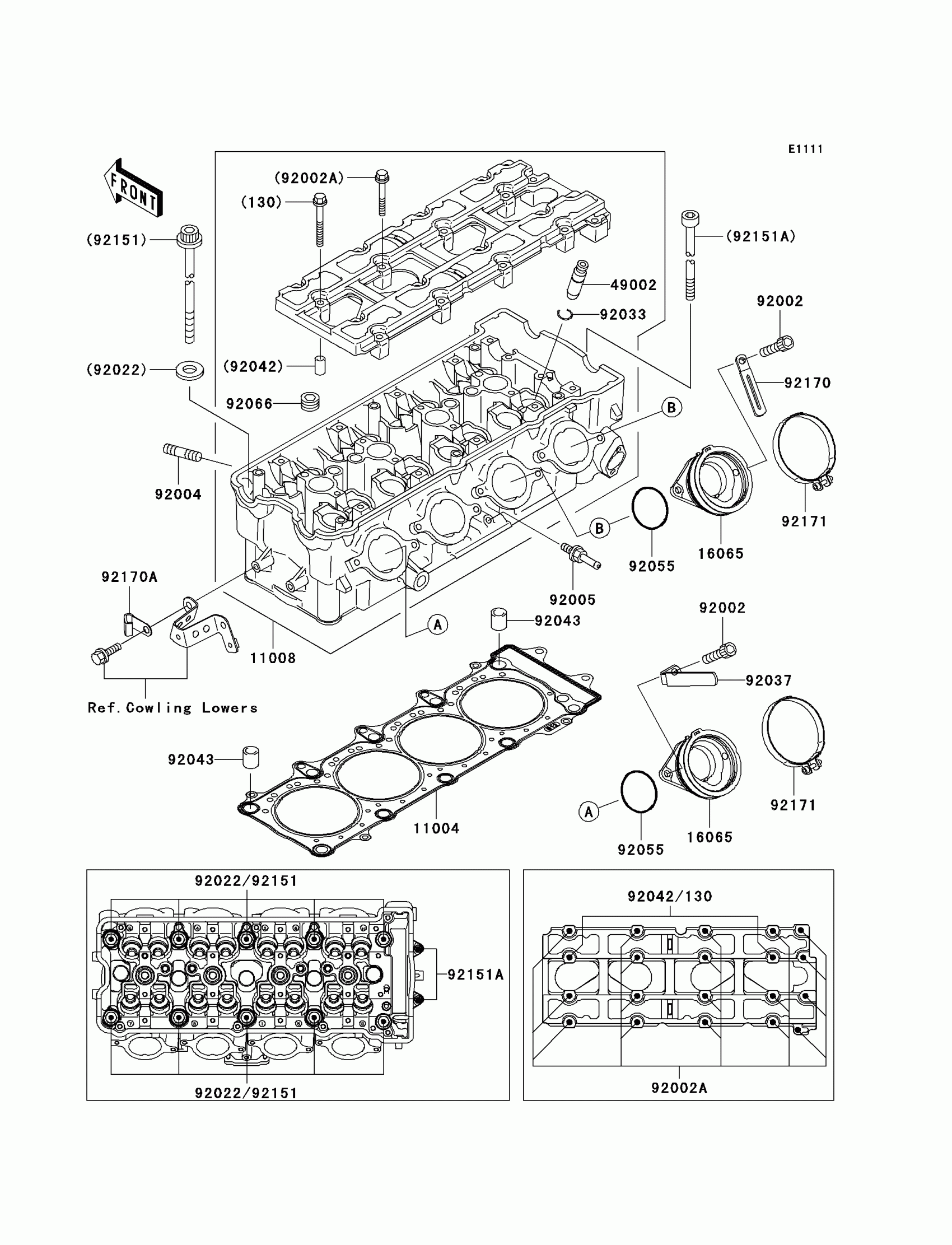

Kawasaki Ninja® ZX™-12R Cylinder Head Diagram

Description

Price

130

BOLT-FLANGED,6X50

130Z0650

$4.54

11004

GASKET-HEAD

11004-1365

Unavailable

11008

HEAD-COMP-CYLINDER

11008-1372

Unavailable

16065

HOLDER-CARBURETOR

16065-1364

Unavailable

49002

GUIDE-VALVE

49002-1140

Unavailable

92002

BOLT,6X16

92002-1143

$3.92

92002A

BOLT,6X40

92002-1756

$4.69

92004

STUD,8X22

92004-1249

$3.87

92005

FITTING,BLEED PIPE

92005-1337

$23.31

92022

WASHER,11.5X20.5X1.6

92022-1720

$4.31

92033

RING-SNAP

92033-1247

$3.91

92037

CLAMP

92037-1679

$5.52

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,14X14

92043-1593

$6.67

92055

RING-O,47X1.9

92055-1600

$9.19

92066

PLUG,PT1/2X12.5

92066-1253

$8.98

92151

BOLT,11X168

92151-1513

$17.76

92151A

BOLT,SOCKET,7X120

92151-1804

$11.63

92170

CLAMP

92170-1514

$4.31

92170A

CLAMP,HARNESS

92170-1900

$6.26

92171

CLAMP

92171-1089

$14.04
