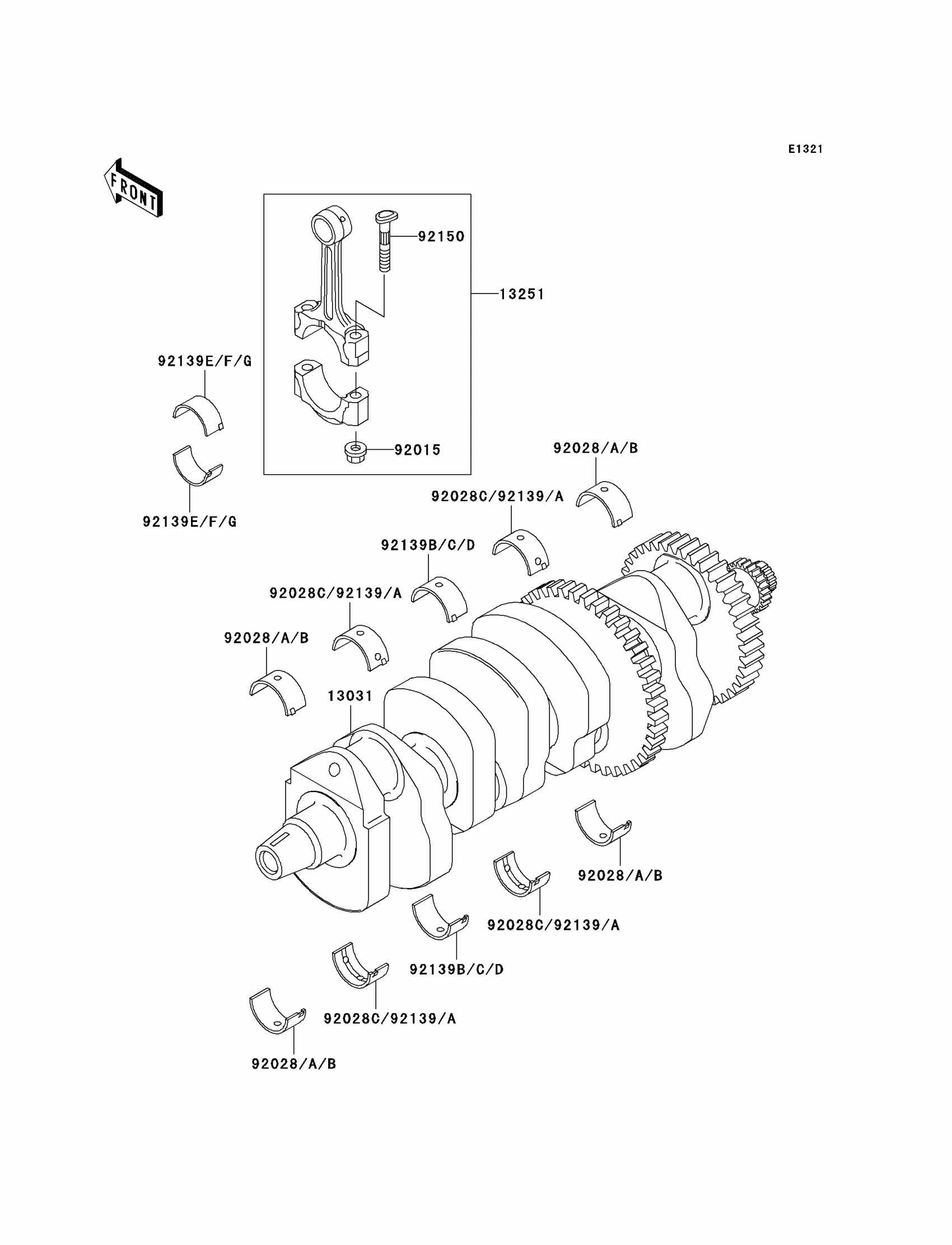

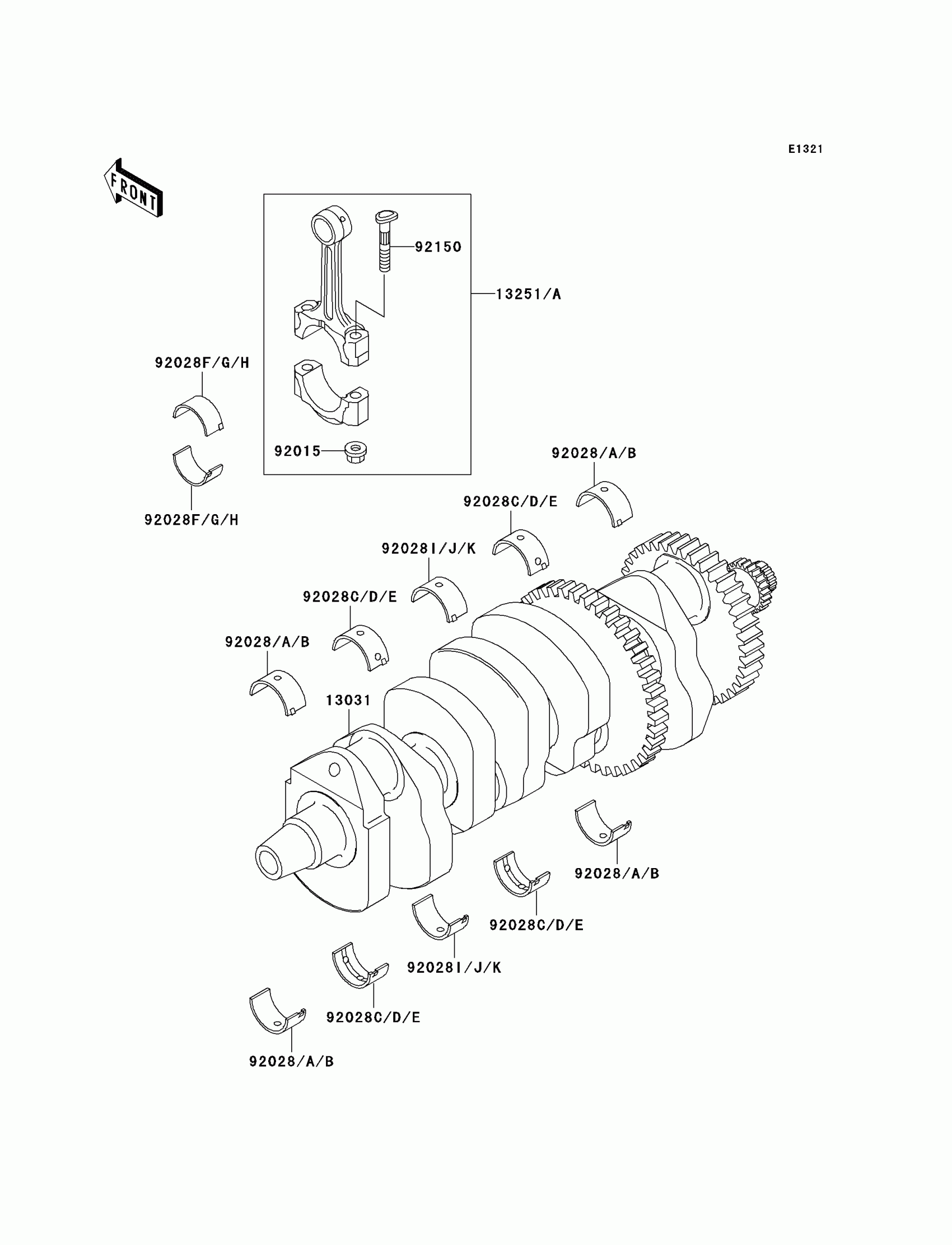

Kawasaki Ninja® ZX™-12R Crankshaft Diagram

#

Description
Price

13031

CRANKSHAFT-COMP

13031-1460

$1,380.70

92015

NUT,CONNECTING ROD

92015-1559

$6.22

92028

BUSHING,CRANK,#1,BLUE

92028-1925

$28.94

92028A

BUSHING,CRANK,#1,BLACK

92028-1926

Unavailable

92028B

BUSHING,CRANK,#1,BROWN

92028-1927

Unavailable

92028C

BUSHING,CRANK,#2,BLUE

92028-1931

$27.83

92028D

BUSHING,CRANK,#2,BLACK

92028-1932

Unavailable

92028E

BUSHING,CRANK,#2,BROWN

92028-1933

Unavailable

92028F

BUSHING,CONNECTING ROD,BLUE

92028-1941

$26.25

92028G

BUSHING,CONNECTING ROD,BLACK

92028-1942

Unavailable

92028H

BUSHING,CONNECTING ROD,BROWN

92028-1943

Unavailable

92028I

BUSHING,CRANK,#3,BLUE

92028-1983

$28.94

92028J

BUSHING,CRANK,#3,BLACK

92028-1984

Unavailable

92028K

BUSHING,CRANK,#3,BROWN

92028-1985

Unavailable

92150

BOLT,CONNECTING ROD,9MM

92150-1362

$17.60

13251

ROD-ASSY-CONNECTING,JJ

13251-1126-JJ

Unavailable

13251A

ROD-ASSY-CONNECTING,K

13251-1135-KK

Unavailable
