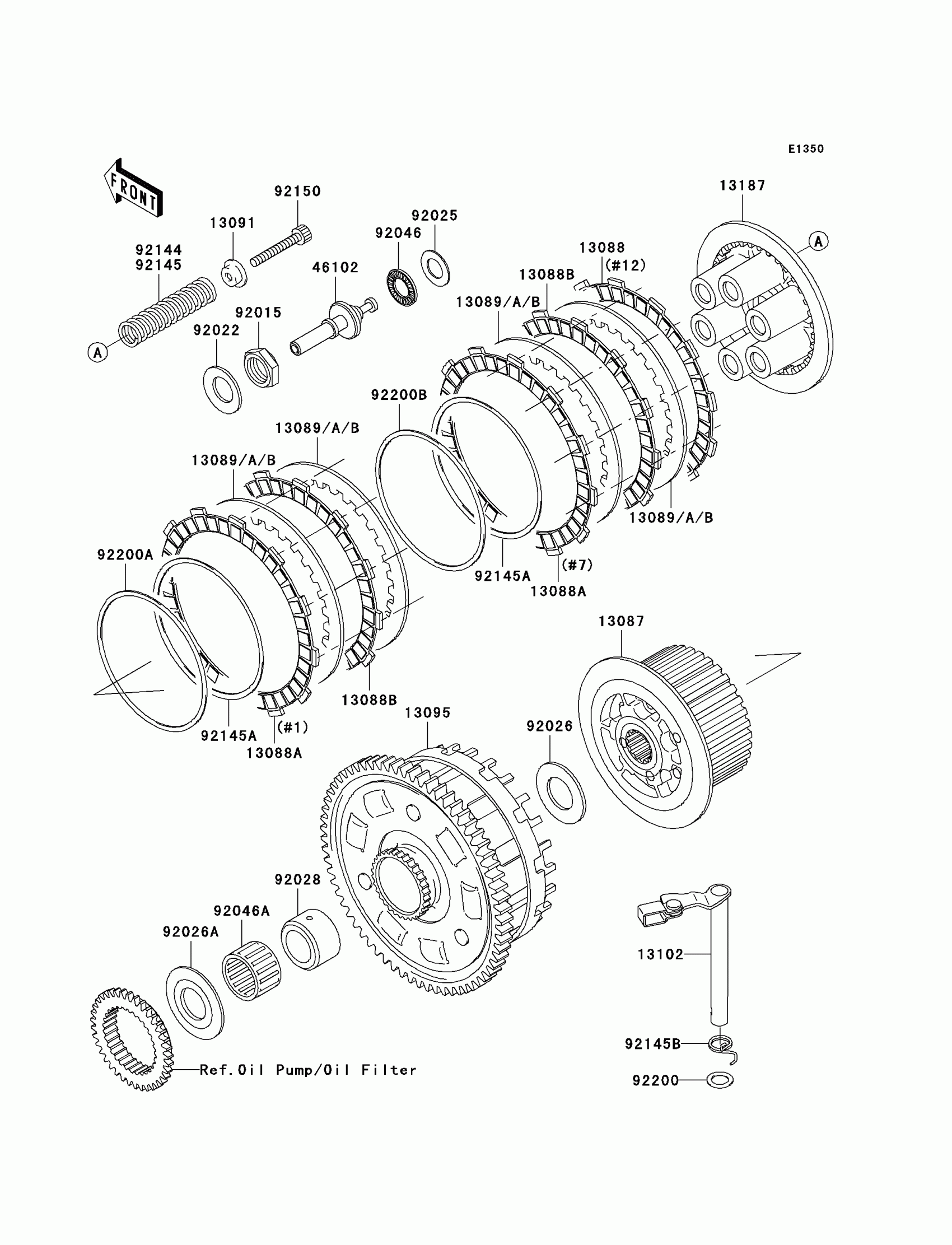

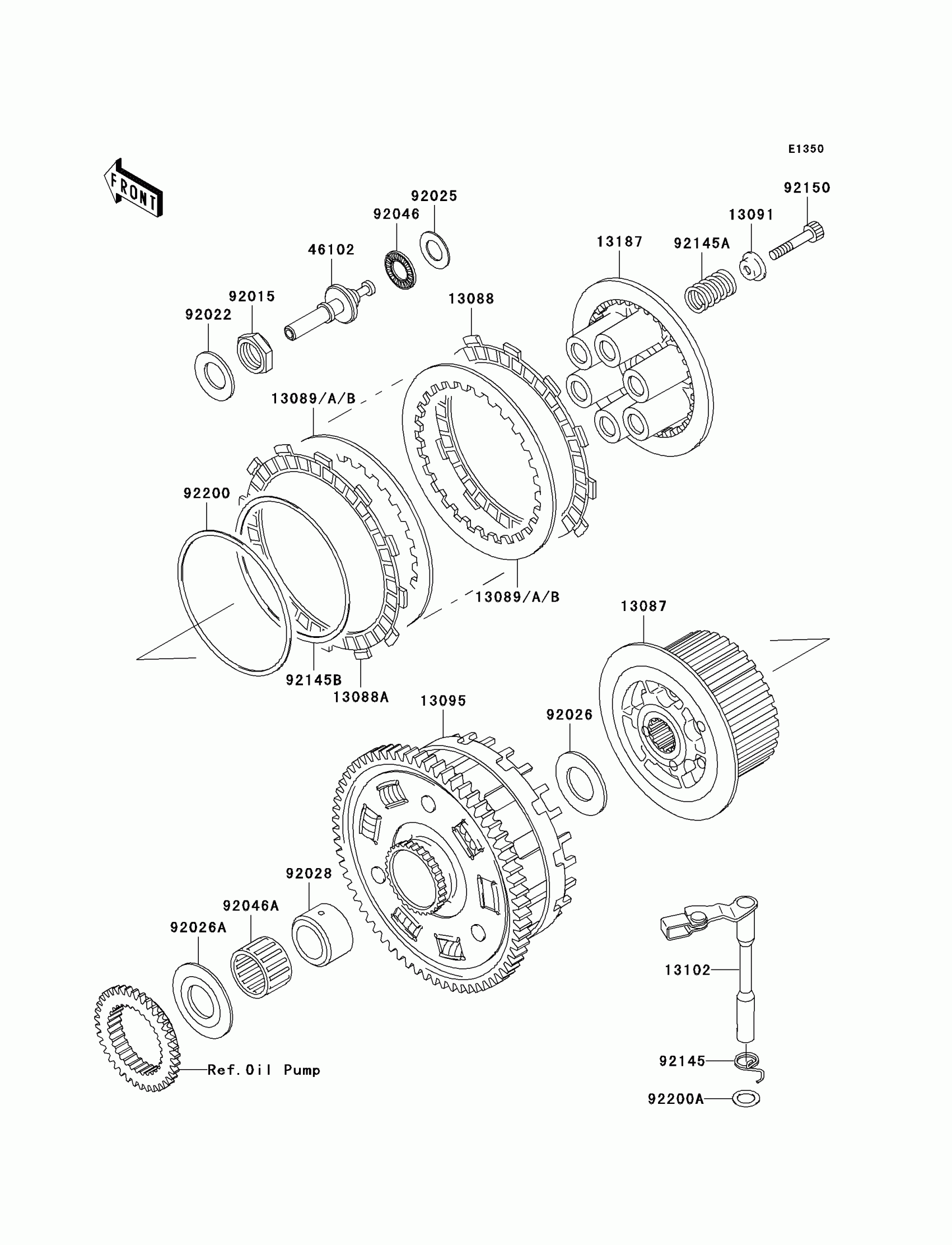

Kawasaki Ninja® ZX™-12R Clutch Diagram

#

Description
Price

13087

HUB-CLUTCH

13087-1176

Unavailable

13088

PLATE-FRICTION

13088-1131

$19.47

13088A

PLATE-FRICTION

13088-1132

Unavailable

13089

PLATE-CLUTCH,T=1.6

13089-1123

$13.20

13089A

PLATE-CLUTCH,T=2.0

13089-1124

Unavailable

13089B

PLATE-CLUTCH,T=1.4

13089-1125

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1041

$12.23

13095

HOUSING-COMP-CLUTCH

13095-1374

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1140

$71.18

13187

PLATE-CLUTCH OPERATING

13187-1084

$90.51

46102

ROD,CLUTCH RELEASE

46102-1429

$55.02

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X3.7

92022-1868

$9.51

92025

SHIM,15.3X27.5X1.20

92025-1137

$8.58

92026

SPACER,25.5X47X2.5

92026-022

$9.91

92026A

SPACER

92026-1497

$11.28

92028

BUSHING

92028-1934

$42.41

92046

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92046A

BEARING-NEEDLE

92046-1267

$48.46

92145

SPRING,CLUTCH RELEASE

92145-1170

$9.00

92145A

SPRING

92145-1249

$9.13

92145B

SPRING

92145-1250

$19.32

92150

BOLT,CLUTCH OPERATING

92150-1855

$5.24

92200

WASHER

92200-1469

$10.49

92200A

WASHER,12X18.5X0.5

92200-1487

$2.75
