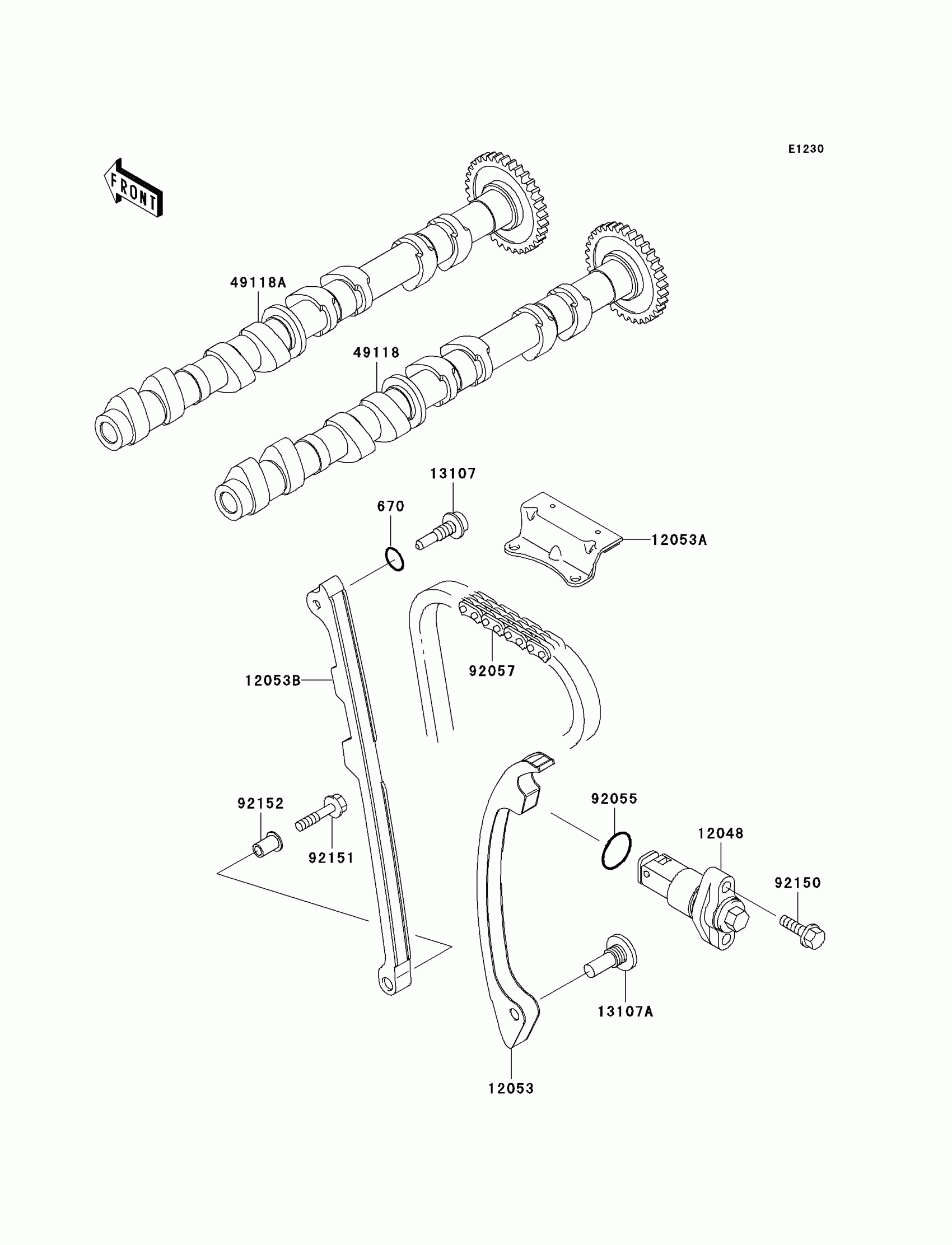

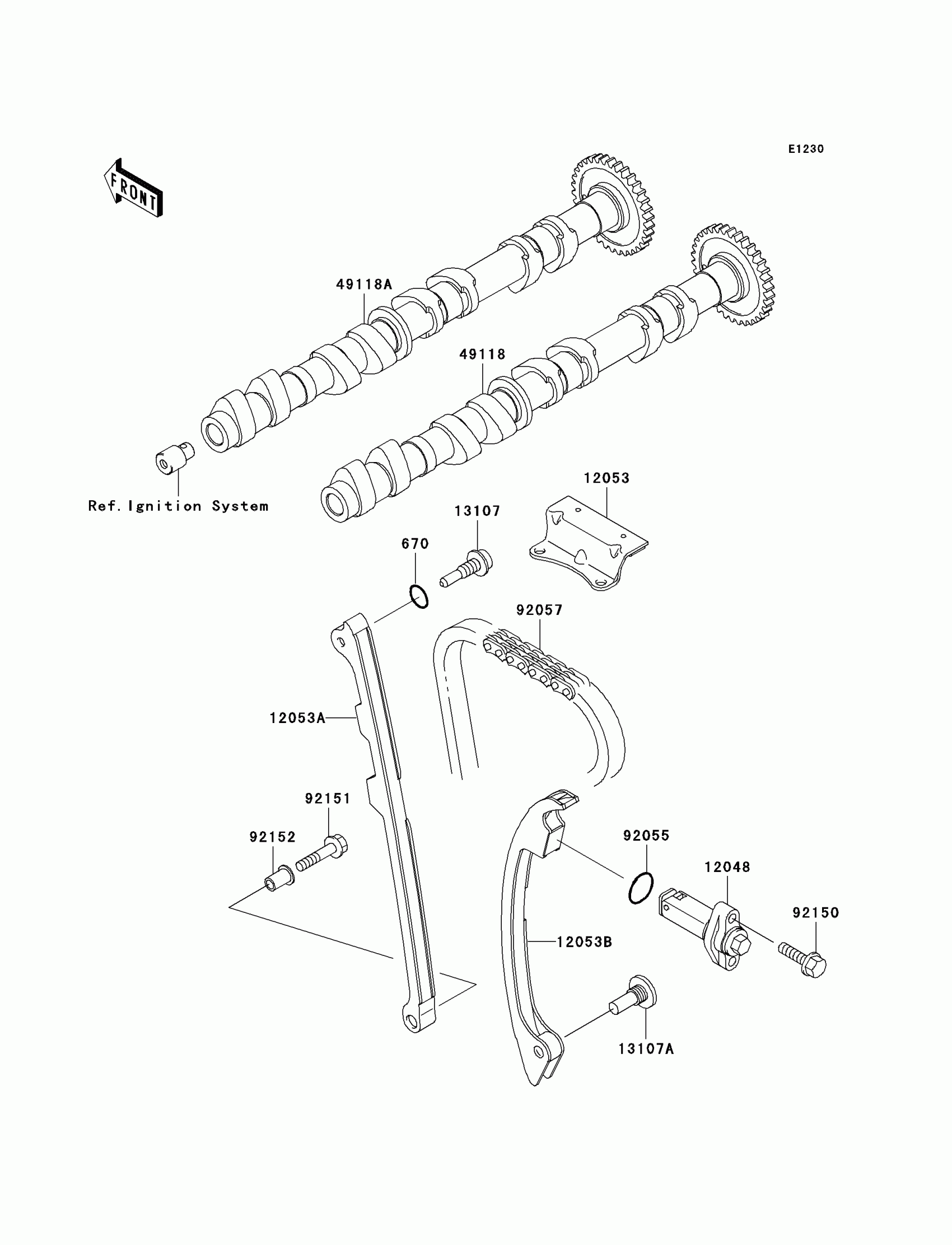

Kawasaki Ninja® ZX™-12R Camshaft(s)/Tensioner Diagram

Description

Price

670

O RING,9MM

670D1509

$4.69

12048

TENSIONER-ASSY

12048-1179

Unavailable

12053

GUIDE-CHAIN,RR

12053-1431

Unavailable

12053A

GUIDE-CHAIN,UPP

12053-1432

$37.49

12053B

GUIDE-CHAIN,FR

12053-1433

$86.45

13107

SHAFT,CHAIN GUIDE,FR

13107-1416

Unavailable

13107A

SHAFT,CHAIN GUIDE,RR

13107-1417

$8.82

49118

CAMSHAFT-COMP,INTAKE

49118-1185

Unavailable

49118A

CAMSHAFT-COMP,EXHAUST

49118-1186

Unavailable

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,CAM

92057-1475

$100.22

92150

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92151

BOLT,6X30

92151-1134

$2.15

92152

COLLAR

92152-1167

$6.00
