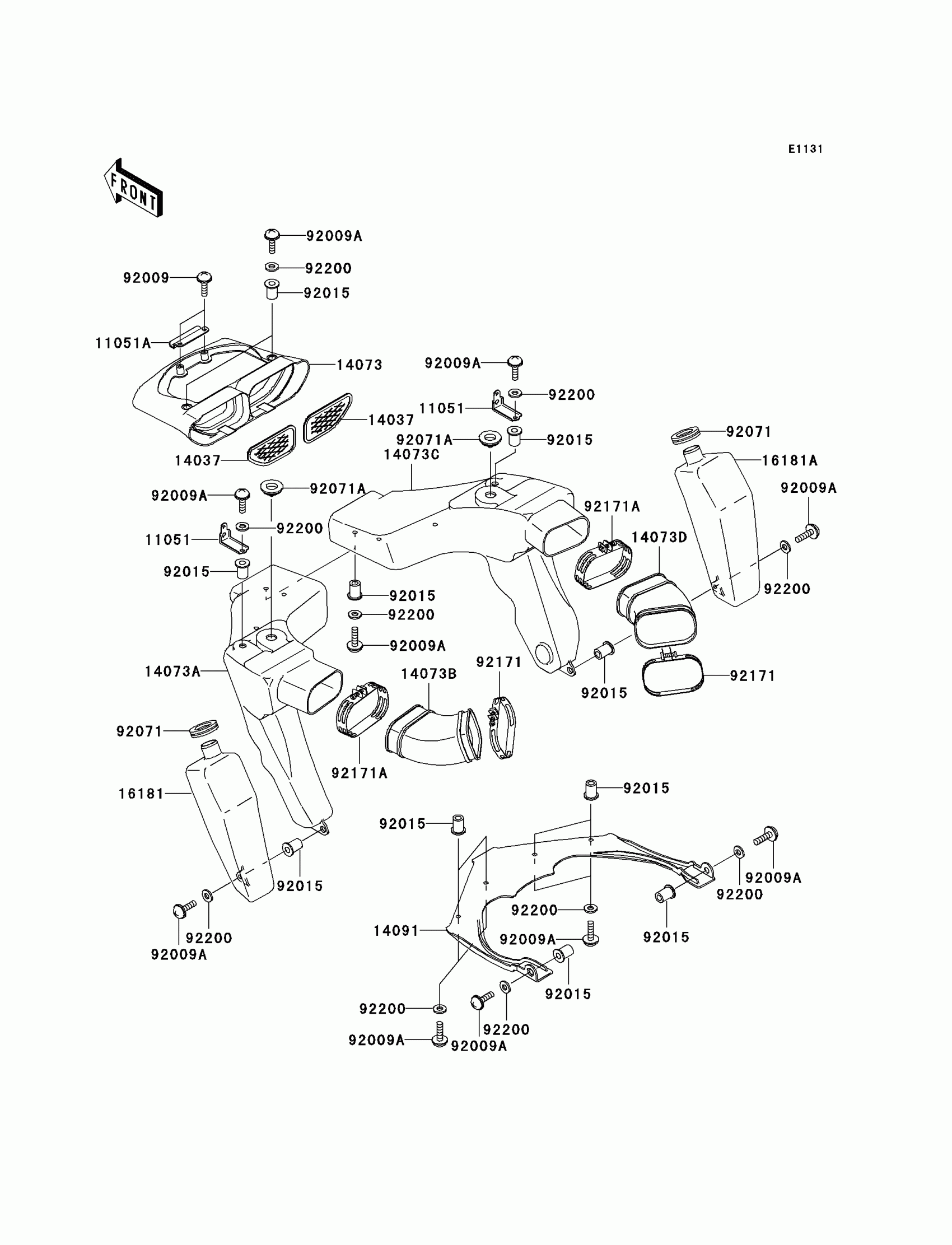

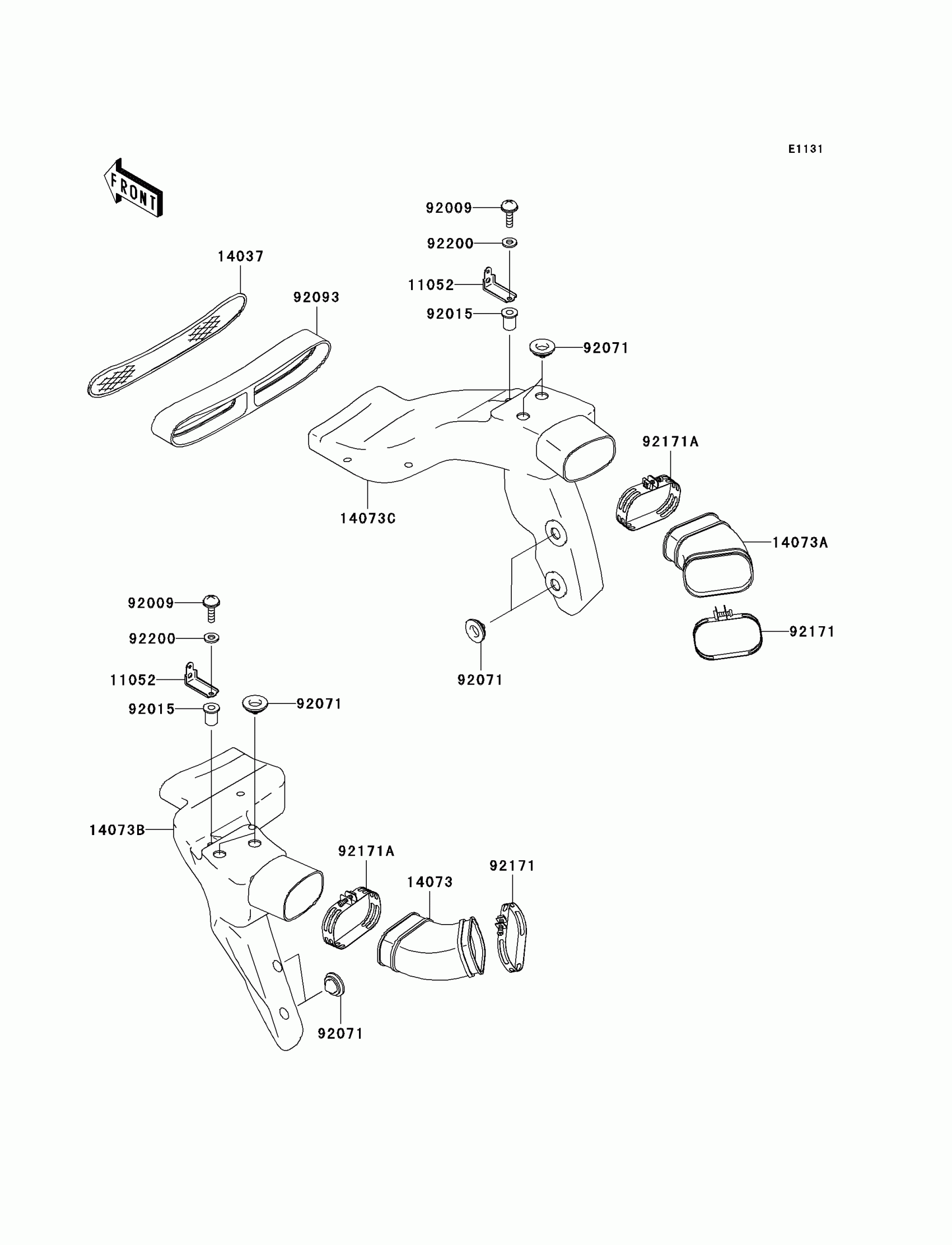

Kawasaki Ninja® ZX™-12R Air Duct Diagram

Description

Price

11051

BRACKET

11051-1468

Unavailable

11051A

BRACKET

11051-1863

$8.52

14037

SCREEN,DUCT

14037-1286

$37.57

14073

DUCT,M.F.C.GRAY

14073-1745-3L

Unavailable

14073A

DUCT,LH

14073-1747

Unavailable

14073B

DUCT,LH

14073-1748

$57.34

14073C

DUCT,RH

14073-1749

Unavailable

14073D

DUCT,RH

14073-1750

$52.17

14091

COVER

14091-1158

Unavailable

16181

TANK-RESONATOR

16181-1093

Unavailable

16181A

TANK-RESONATOR

16181-1094

$55.97

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92009A

SCREW,5X16

92009-1909

$2.03

92015

NUT,WELL,5MM

92015-1757

$7.29

92071

GROMMET,AIR FILTER

92071-1013

$6.46

92071A

GROMMET

92071-1222

$6.55

92171

CLAMP

92171-1093

$19.11

92171A

CLAMP

92171-1169

$22.32

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59
