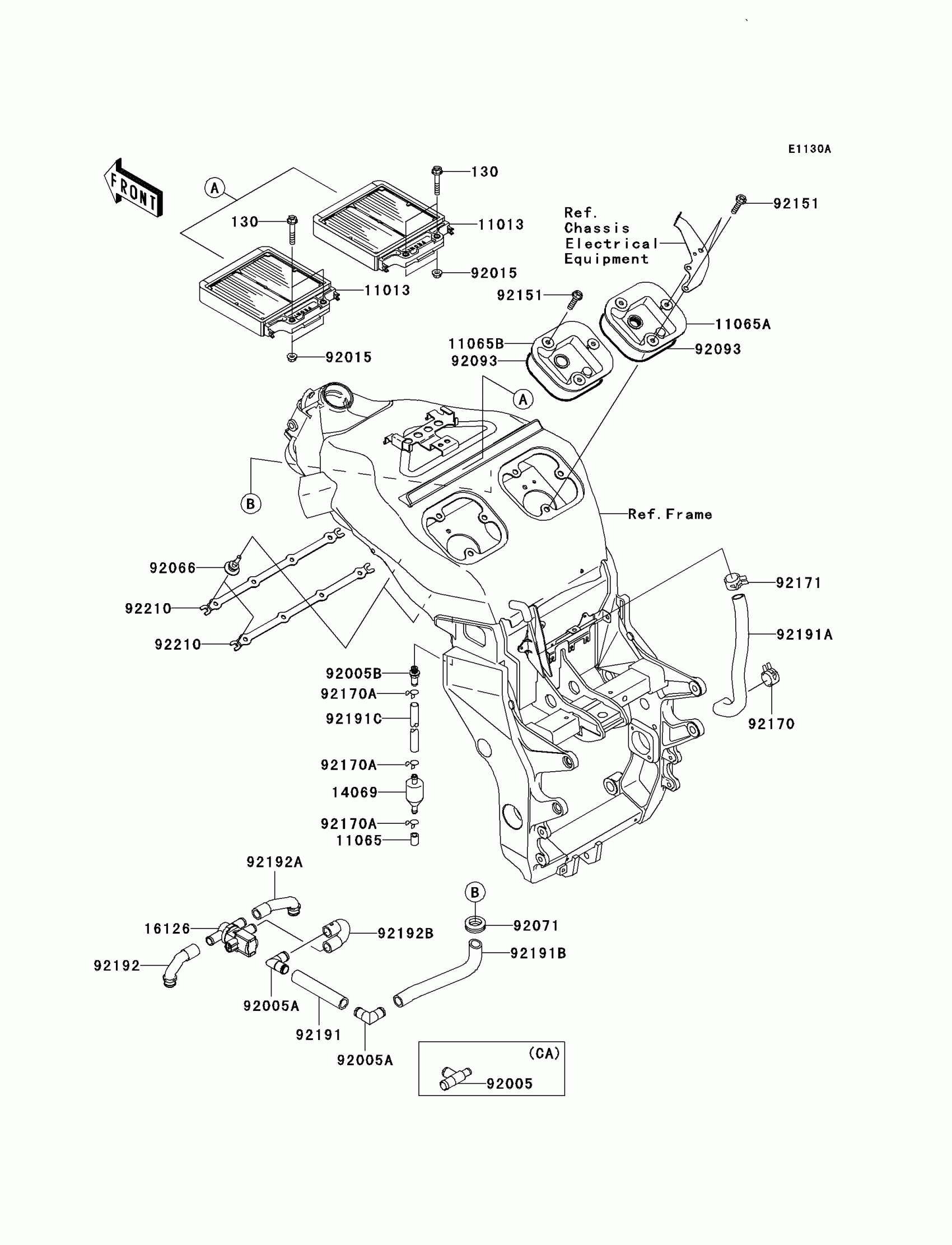

Kawasaki Ninja® ZX™-12R Air Cleaner(B3/B4) Diagram

Description

Price

130

BOLT-FLANGED,6X35

130L0635

Unavailable

11013

ELEMENT-AIR FILTER

11013-0005

$39.63

11065

CAP,BREATHER

11065-1088

$2.14

11065A

CAP,FRAME,RH

11065-1129

$41.14

11065B

CAP,FRAME,LH

11065-1130

$41.14

14069

BREATHER

14069-1051

$7.76

16126

VALVE,AIR SWITCHING

16126-1437

$165.68

92005B

FITTING

92005-1365

$21.30

92015

NUT,6MM

92015-1365

$3.81

92066

PLUG

92066-1576

$4.12

92071

GROMMET,AIR FILTER

92071-1042

$5.55

92093

SEAL

92093-1507

$3.65

92151

BOLT,6X22

92151-1236

Unavailable

92170

CLAMP

92170-1060

$7.93

92170A

CLAMP

92170-1529

$4.25

92171

CLAMP

92171-1277

$2.25

92191

TUBE,14X20X111

92191-1215

$4.07

92191A

TUBE,ENGINE-CLEANER

92191-1352

$24.32

92191B

TUBE,AIR SWITCH-CLEANER

92191-1353

$14.22

92191C

TUBE,7X12X460

92191-1517

$8.88

92192

TUBE,VALVE-ASWV LH

92192-0090

$17.22

92192A

TUBE,VALVE-ASWV RH

92192-0091

$17.22

92192B

TUBE,ASWV-FITTING

92192-0092

$17.22

92210

NUT

92210-1183

$18.59

92005

FITTING,T-TYPE

92005-1252

$10.63

92005A

FITTING

92005-1309

$11.19

92005A

FITTING

92005-1309

$11.19
