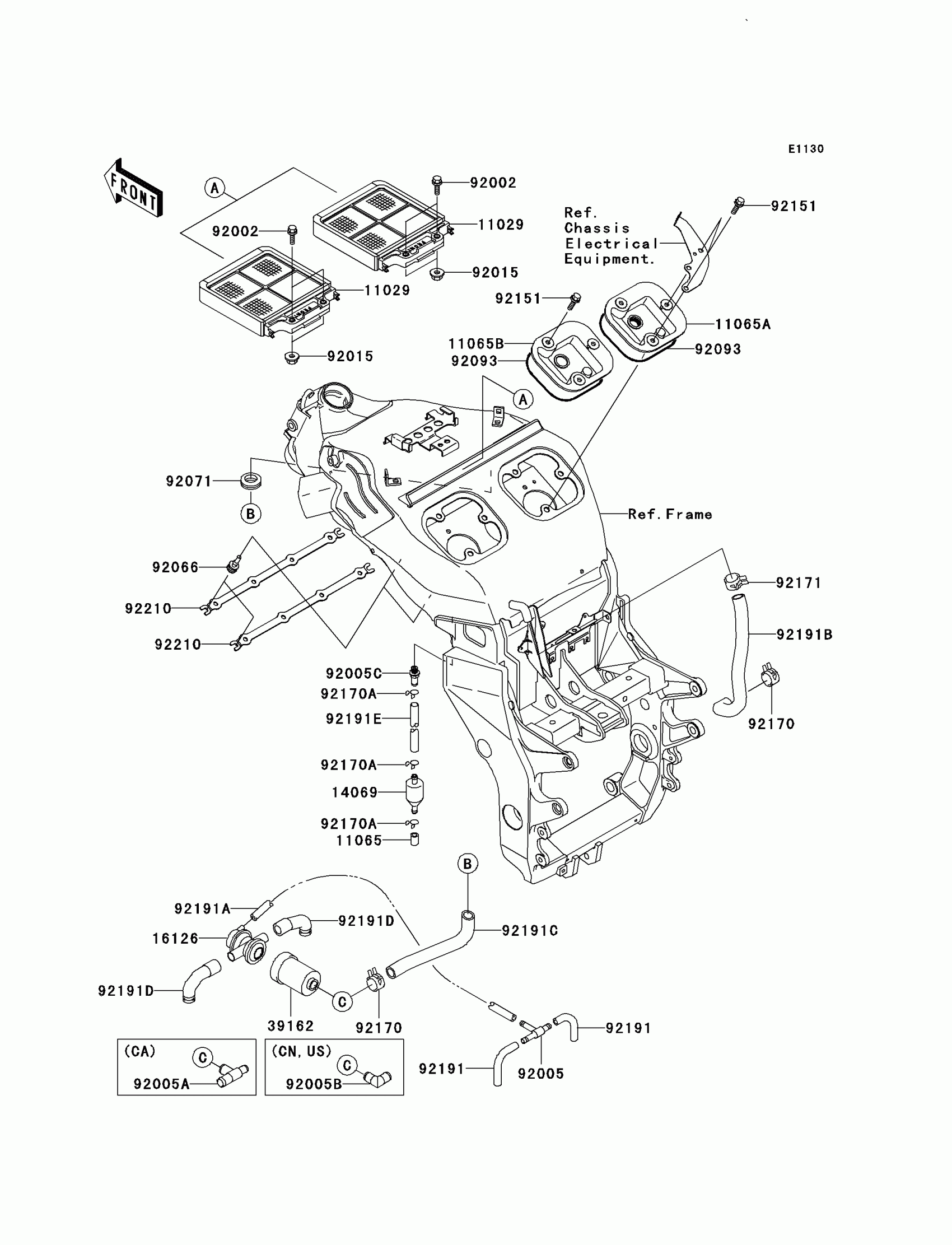

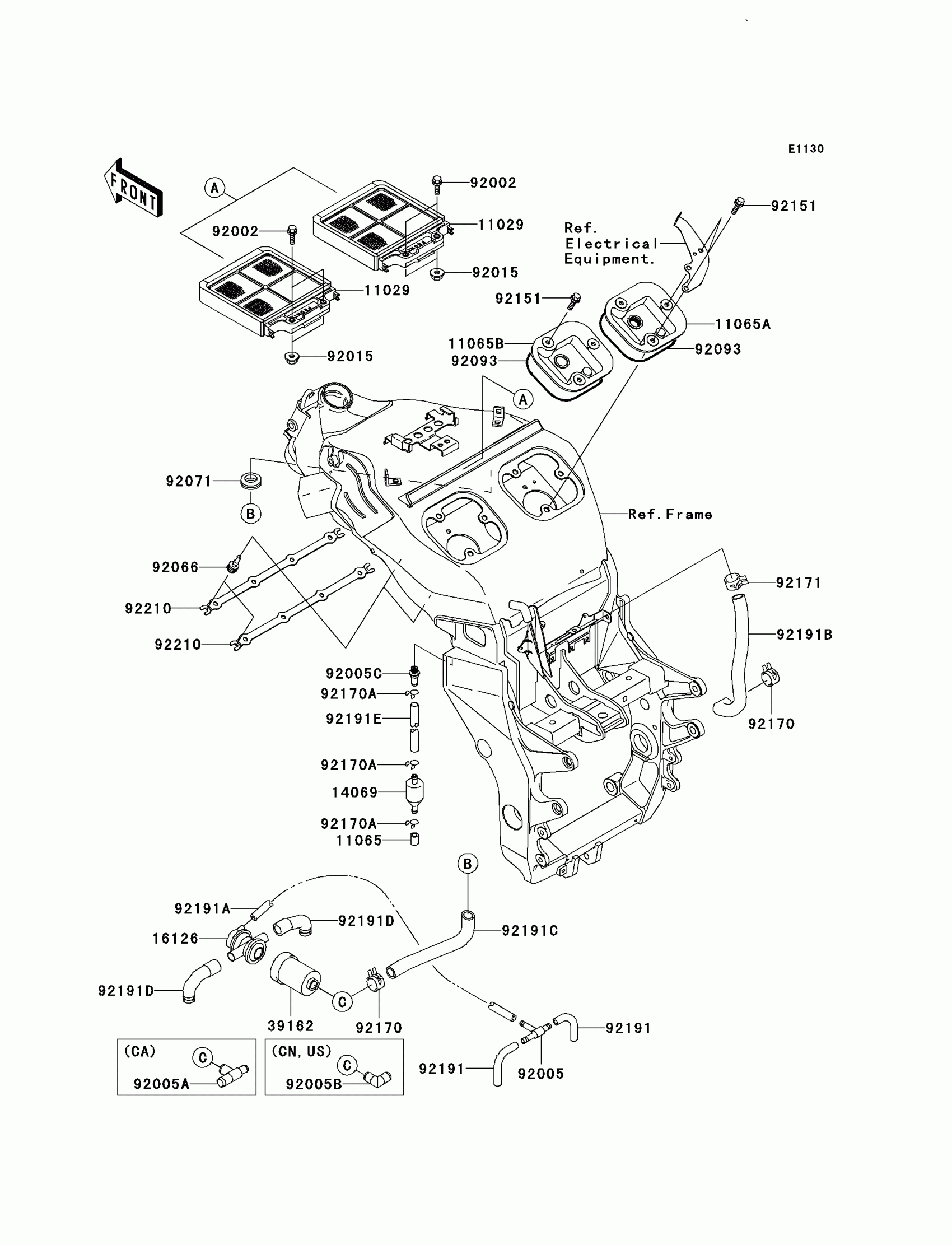

Kawasaki Ninja® ZX™-12R Air Cleaner Diagram

#

Description
Price

11029

ELEMENT-ASSY-AIR FILTER

11029-1016

$56.37

11065

CAP,BREATHER

11065-1088

$2.60

11065A

CAP,FRAME,RH

11065-1129

$40.36

11065B

CAP,FRAME,LH

11065-1130

$40.36

14069

BREATHER

14069-1051

$10.19

16126

VALVE,AIR SWITCH

16126-1409

$218.93

39162

SILENCER-INTAKE

39162-1091

$72.85

92002

BOLT,FLANGED,6X35

92002-1051

$4.76

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005C

FITTING

92005-1365

$23.95

92015

NUT,6MM

92015-1365

$5.00

92066

PLUG

92066-1512

$4.94

92071

GROMMET,AIR FILTER

92071-1042

$7.27

92093

SEAL

92093-1507

$4.78

92151

BOLT,6X22

92151-1236

Unavailable

92170

CLAMP

92170-1060

$8.10

92170A

CLAMP

92170-1529

$4.78

92171

CLAMP

92171-1277

$2.75

92191

TUBE

92191-1060

$4.06

92191A

TUBE,4X9X266

92191-1077

$8.90

92191B

TUBE,ENGINE-CLEANER

92191-1352

$25.90

92191C

TUBE,AIR SWITCH-CLEANER

92191-1353

$15.02

92191D

TUBE,AIR SWITCH-VALVE

92191-1354

Unavailable

92191E

TUBE,7X12X460

92191-1517

$9.13

92210

NUT

92210-1183

$19.90

92005A

FITTING,T-TYPE

92005-1252

$10.78

92005B

FITTING

92005-1309

$11.38
