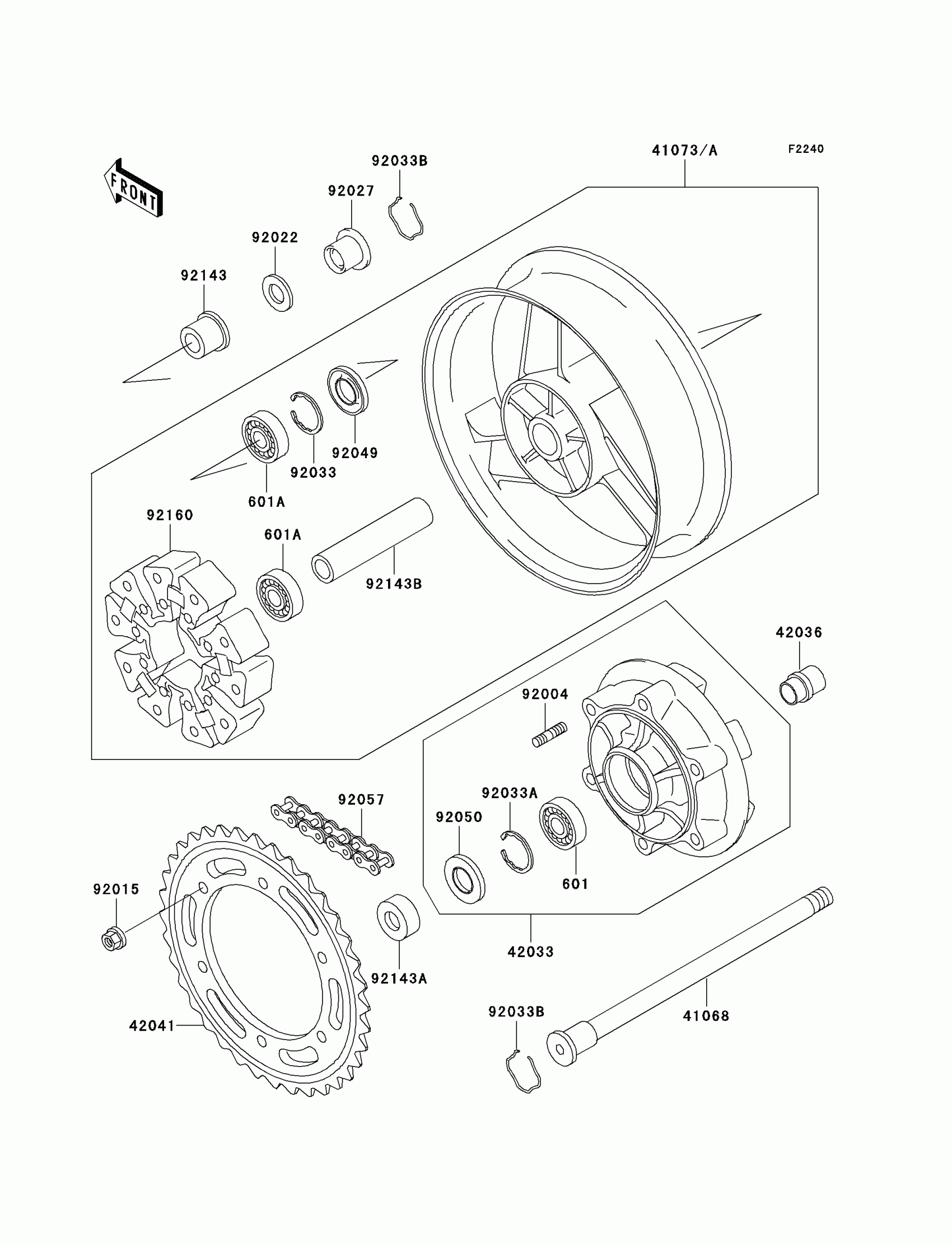

Kawasaki Ninja® ZX™-11 Rear Wheel/Chain Diagram

Description

Price

601

BEARING-BALL,#6206UUC3

601B6206UU

$40.38

601A

BEARING-BALL,#6304UUC3

601B6304UU

$34.48

41068

AXLE,RR

41068-1354

$116.29

41073A

WHEEL-ASSY,RR,C.GRAY

41073-1555-JD

Unavailable

42033

COUPLING-ASSY,RR HUB,C.GRAY

42033-1160-EZ

$345.60

42036

SLEEVE,RR AXLE,L=45

42036-1302

$38.24

42041

SPROCKET-HUB,45T

42041-1283

$119.30

92004

STUD,10X24

92004-1146

$5.60

92015

NUT,10MM

92015-1720

$5.24

92022

WASHER,23X32X2.3

92022-1618

$6.22

92027

COLLAR,RR AXLE,L=28

92027-1810

$32.00

92033

RING-SNAP,52MM

92033-1043

$8.05

92033A

RING-SNAP,62MM

92033-1044

$11.29

92033B

RING-SNAP,RR AXLE

92033-1156

$4.96

92049

SEAL-OIL,28X52X5

92049-1061

$19.15

92050

SEAL-OIL,AJN40627

92050-027

$20.96

92057

CHAIN,DRIVE,EK50ZV-XX110L

92057-1368

Unavailable

92143

COLLAR,L=23

92143-1042

$37.73

92143A

COLLAR,RR AXLE,L=12

92143-1385

$32.76

92143B

COLLAR,REAR AXLE,L=116

92143-1390

$40.70

92160

DAMPER,SHOCK,RR HUB

92160-1398

$128.27
