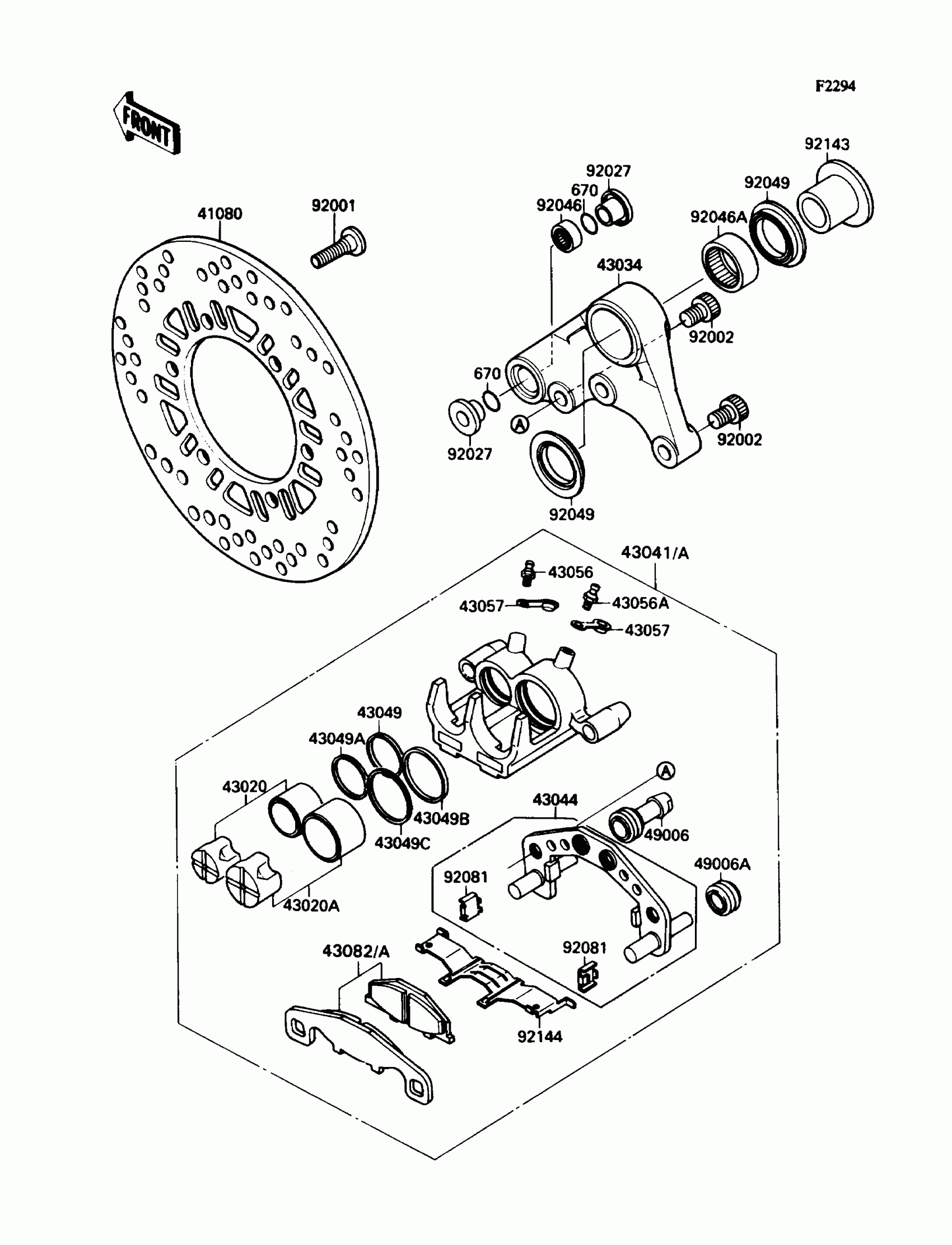

Kawasaki Ninja® ZX™-11 Rear Caliper Diagram

#

Description
Price

41080

DISC,RR,SILVER NO.1

41080-1219-CM

Unavailable

43020

PISTON-COMP-BRAKE

43020-1068

$74.19

43020A

PISTON-COMP-BRAKE

43020-1069

$74.19

43034

HOLDER-BRAKE,REAR CALIPER,GRAY

43034-1090-GD

$172.65

43041A

CALIPER-ASSY,RR,M.F.GRAY

43041-1433-FE

$510.19

43044

HOLDER-COMP-CALIPER

43044-1067

$162.04

43049

PACKING,PISTON SEAL

43049-1054

$9.44

43049A

PACKING,PISTON

43049-1055

$8.59

43049B

PACKING,PISTON SEAL

43049-1056

$9.96

43049C

PACKING,PISTON

43049-1057

$9.61

43056

BREATHER

43056-003

$19.94

43056A

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082A

PAD-ASSY-BRAKE

43082-1123

$67.40

49006

BOOT,CALIPER

49006-1094

$9.30

49006A

BOOT,CALIPER

49006-1095

$5.55

92001

BOLT,DISC PLATE,8X30

92001-1951

$3.57

92002

BOLT,SOCKET,10X17

92002-1713

$5.61

92027

COLLAR,L=11.5

92027-1040

Unavailable

92046

BEARING-NEEDLE,HK1216LL

92046-1009

$17.71

92046A

BEARING-NEEDLE,BM2817

92046-1111

$17.68

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.08

92081

SPRING,PAD STOPPER

92081-1661

$9.22

92143

COLLAR,L=35

92143-1043

$41.66

92144

SPRING,PAD

92144-1070

$30.43

670

O RING,11MM

670B2011

$0.98
