Description

Price

13091

HOLDER,BEARING

13091-1326

$14.36

13091A

HOLDER,COVER

13091-1327

$19.45

13091B

HOLDER,BEARING

13091-1328

$13.56

13091C

HOLDER,BRUSH

13091-1465

$111.23

13091D

RECTIFIER

13091-1466

$510.53

13227

HOUSING,GENERATOR

13227-1079

$795.76

14014

PLATE-POSITION

14014-1065

$21.80

14025

COVER,RECTIFIER

14025-1942

$11.05

16073

INSULATOR

16073-1062

$21.97

16146

COVER-ASSY,GENERATOR

16146-1074

$208.38

21001

GENERATOR

21001-1104

$1,099.35

21007

ROTOR,GENERATOR

21007-1196

$555.15

21039

BRUSH,CARBON

21039-1052

$28.46

21066

REGULATOR-VOLTAGE

21066-1076

$415.67

26011

WIRE-LEAD,GENERATOR

26011-1432

$87.77

92002

SCREW,4X8

92002-1379

$5.23

92002A

SCREW,5X17.5

92002-1380

$5.05

92002B

BOLT,SOCKET,8X45

92002-1716

$7.90

92002C

SCREW

92002-1856

$15.30

92004

STUD

92004-1196

$24.67

92015

NUT

92015-1800

Unavailable

92045

BEARING-BALL,#6002NC

92045-1133

$53.37

92045A

BEARING-BALL,#6002

92045-1350

$50.61

92049

SEAL-OIL

92049-1200

$35.38

92055

RING-O,3.5MM

92055-1264

$4.04

92055A

RING-O,70.6X2.4

92055-1366

$29.25

92081

SPRING,BRUSH

92081-1759

$8.03

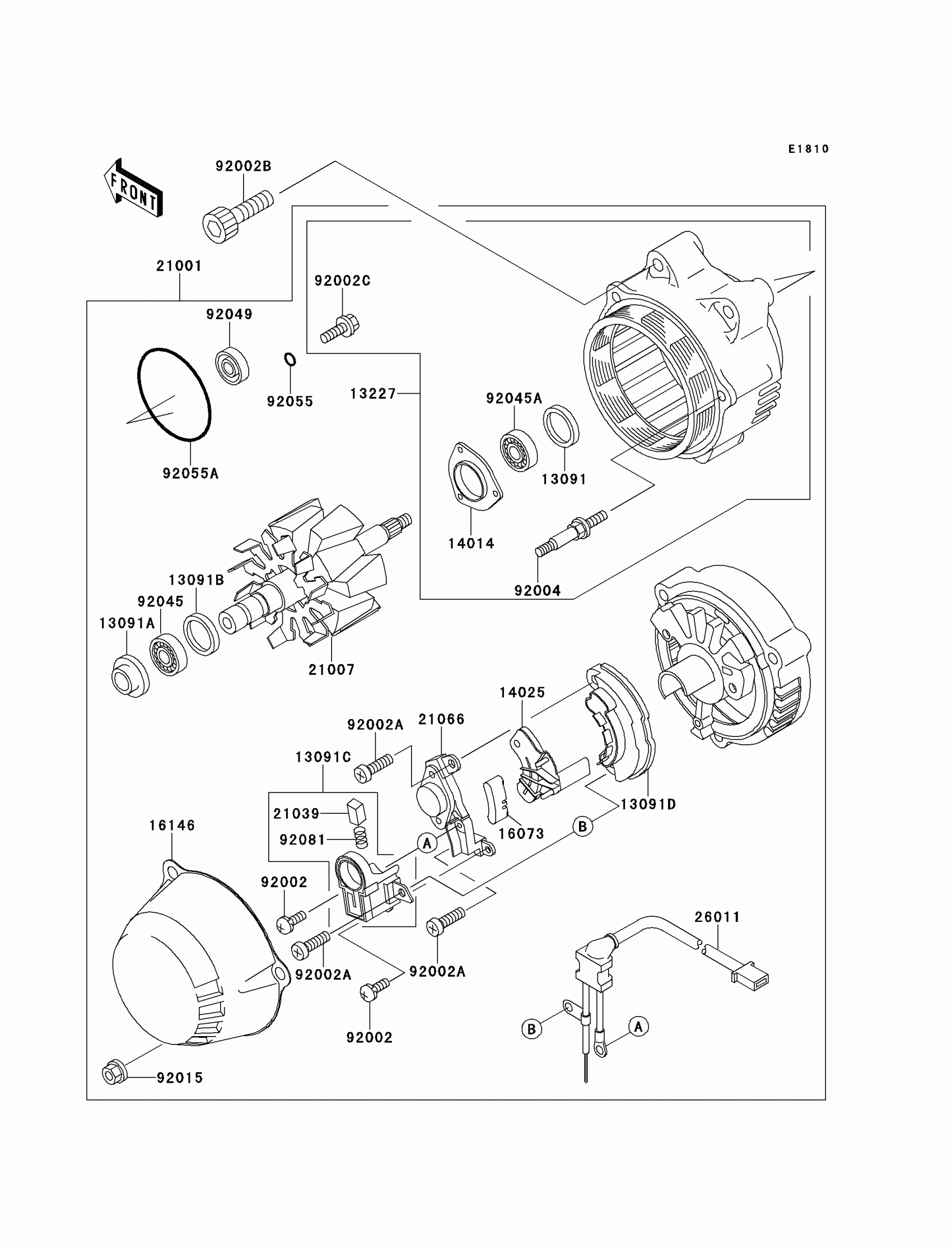

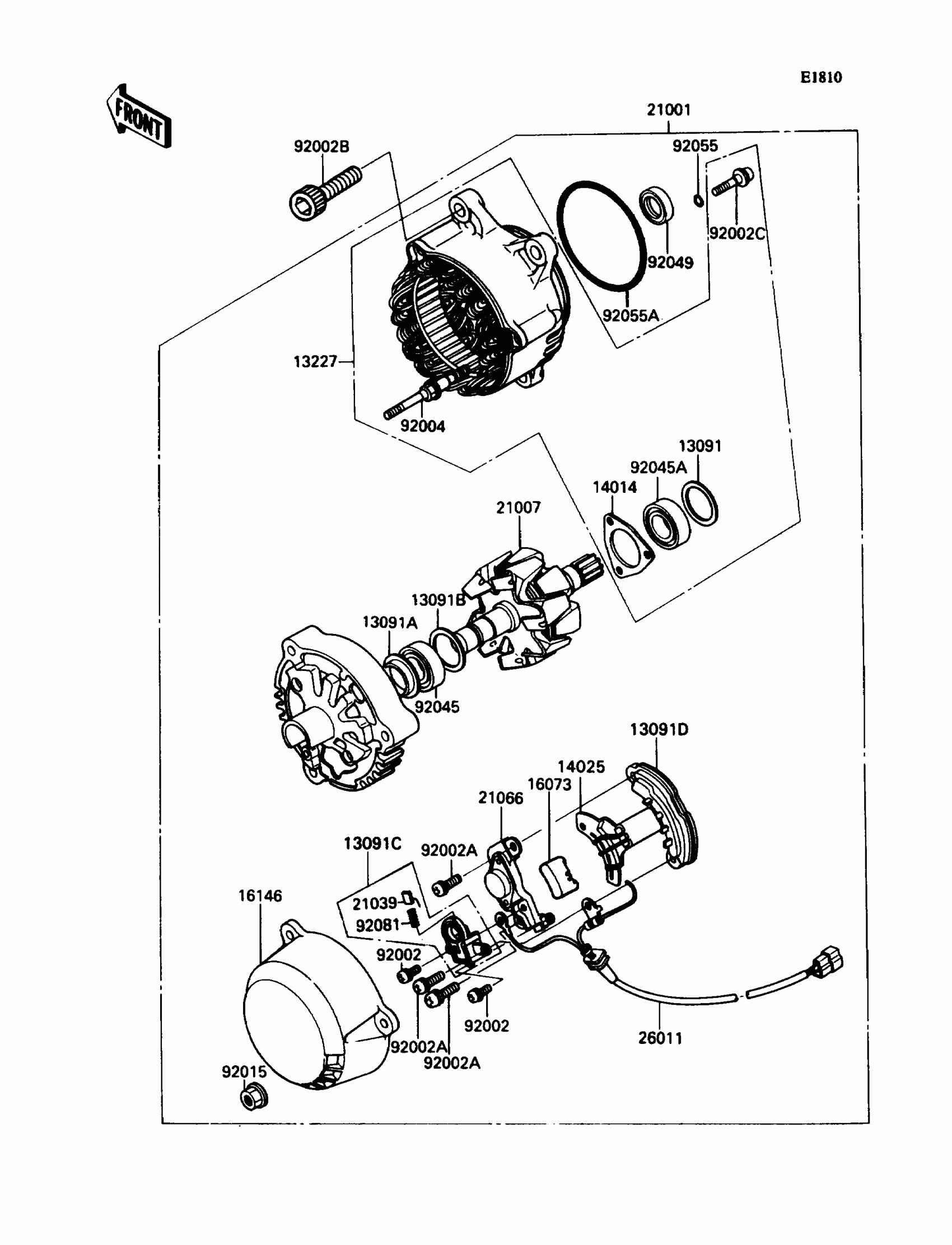

Kawasaki Ninja® ZX™-11 Generator Diagram

HOLDER,BEARING

HOLDER,COVER

HOLDER,BEARING

HOLDER,BRUSH

RECTIFIER

HOUSING,GENERATOR

PLATE-POSITION

COVER,RECTIFIER

INSULATOR

COVER-ASSY,GENERATOR

GENERATOR

ROTOR,GENERATOR

BRUSH,CARBON

REGULATOR-VOLTAGE

WIRE-LEAD,GENERATOR

SCREW,4X8

SCREW,5X17.5

BOLT,SOCKET,8X45

SCREW

STUD

NUT

BEARING-BALL,#6002NC

BEARING-BALL,#6002

SEAL-OIL

RING-O,3.5MM

RING-O,70.6X2.4

SPRING,BRUSH
