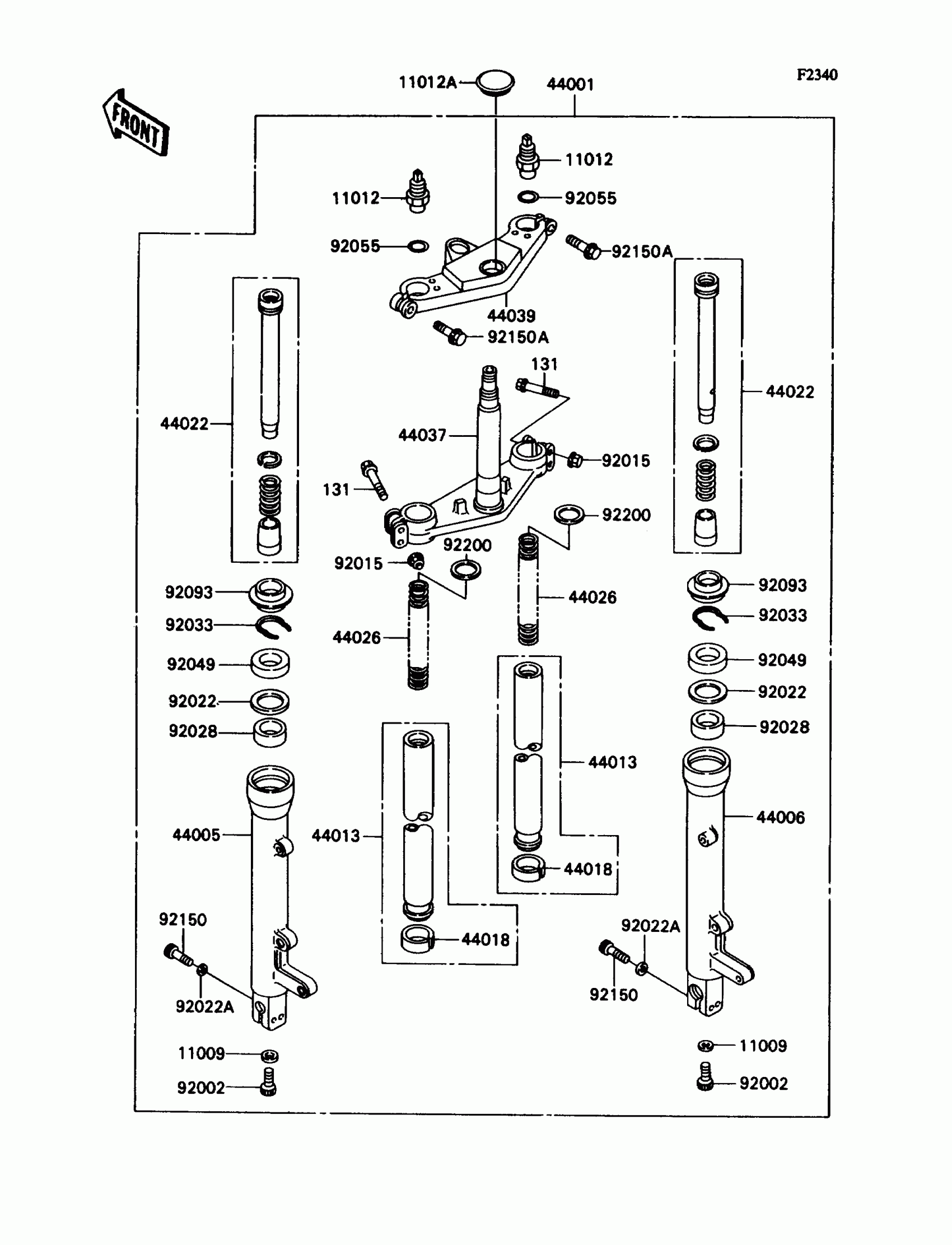

Kawasaki Ninja® ZX™-11 Front Fork(ZX1100-C1/C2) Diagram

Description

Price

11009

GASKET,FORK DRAIN PLUG

11009-1553

$4.20

11012

CAP,FORK

11012-1744

Unavailable

11012A

CAP,FORK,G.GRAY

11012-1750-GD

Unavailable

44001

FORK-FRONT,BLACK

44001-1824-10

$3,524.59

44005

PIPE-LEFT FORK OUTER,BLACK

44005-1305-10

$475.38

44006

PIPE-RIGHT FORK OUTER,BLACK

44006-1302-10

$475.38

44013

PIPE-FORK INNER

44013-1316

Unavailable

44018

PISTON-FORK,INNER PIPE

44018-1053

$25.19

44022

CYLINDER-FORK

44022-1251

Unavailable

44026

SPRING-FRONT FORK

44026-1457

$91.54

44037

HOLDER-FORK UNDER

44037-1266

$583.65

44039

HOLDER-FORK UPPER,G.GRAY

44039-1200-GD

$319.35

92002

BOLT,FORK DRAIN

92002-1650

$11.63

92015

NUT,FLANGED,8MM

92015-1485

$4.26

92022

WASHER

92022-1299

$6.55

92022A

WASHER

92022-1598

$8.20

92028

BUSHING

92028-1553

$17.61

92033

RING-SNAP

92033-1077

$3.78

92049

SEAL-OIL,FORK OUTER TUBE

92049-1392

$23.37

92055

RING-O

92055-1123

$4.67

92093

SEAL,FORK OUTER TUBE

92093-1330

$19.36

92150

BOLT,SOCKET,8X40

92150-1194

$1.98

92150A

BOLT,FLANGED,10X45

92150-1210

$9.31

92200

WASHER

92200-1023

Unavailable

131

BOLT-FLANGED

131G0850

Unavailable
