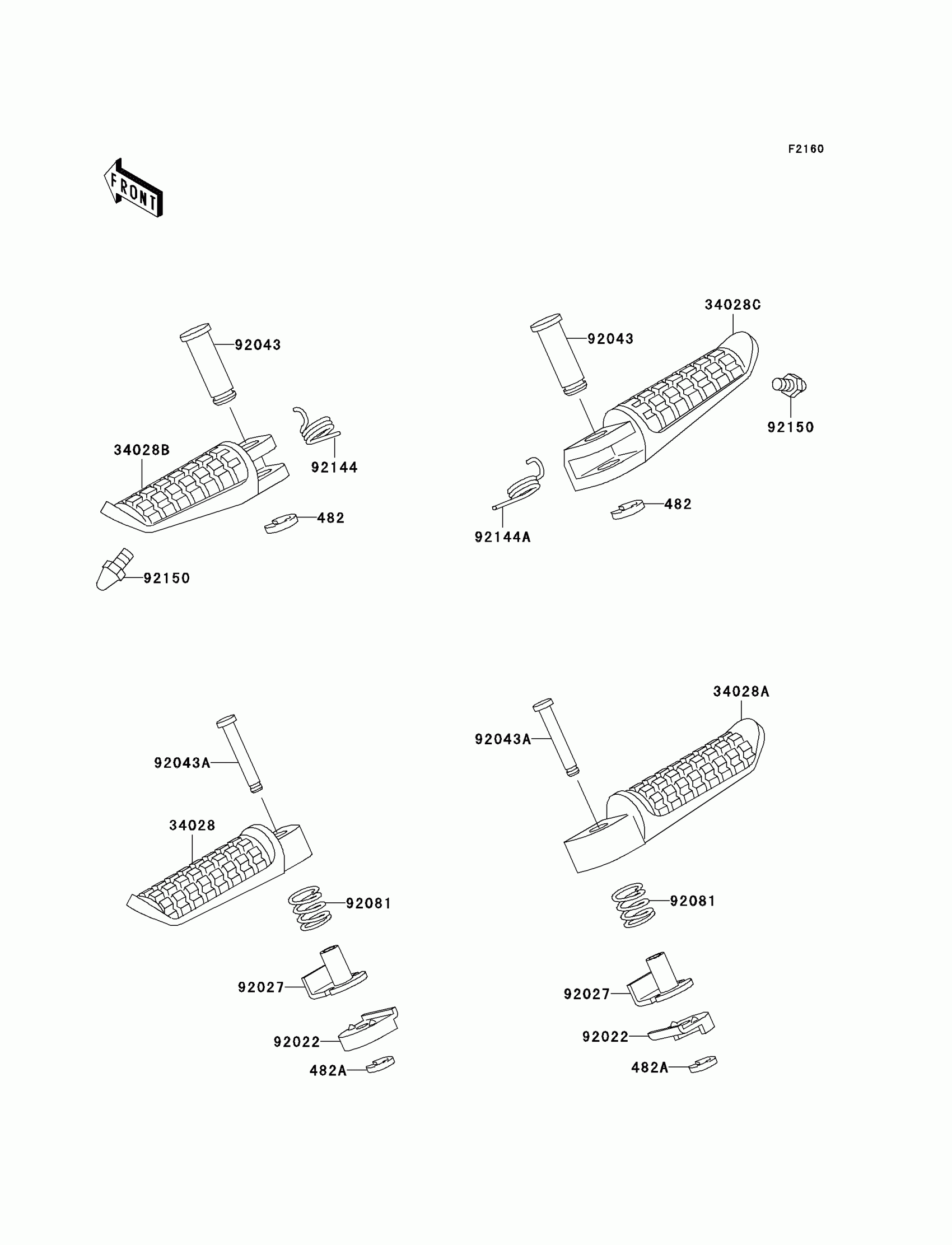

Kawasaki Ninja® ZX™-11 Footrests Diagram

Description

Price

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.73

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.34

34028

STEP,RR,LH

34028-1191

$66.47

34028A

STEP,RR,RH

34028-1192

$66.47

34028B

STEP,FR,LH

34028-1334

$48.65

34028C

STEP,FR,RH

34028-1335

$48.65

92022

WASHER,STEP,RR

92022-1507

$5.24

92027

COLLAR,STEP

92027-1732

$11.16

92043

PIN,12X42.5

92043-1145

$9.57

92043A

PIN,6X38.5

92043-1328

$5.24

92081

SPRING,STEP,RR

92081-1612

$4.26

92144

SPRING,STEP RETURN

92144-1567

$6.51

92144A

SPRING,STEP RETURN

92144-1568

$6.51

92150

BOLT,BANK SENSOR

92150-1114

$11.39
