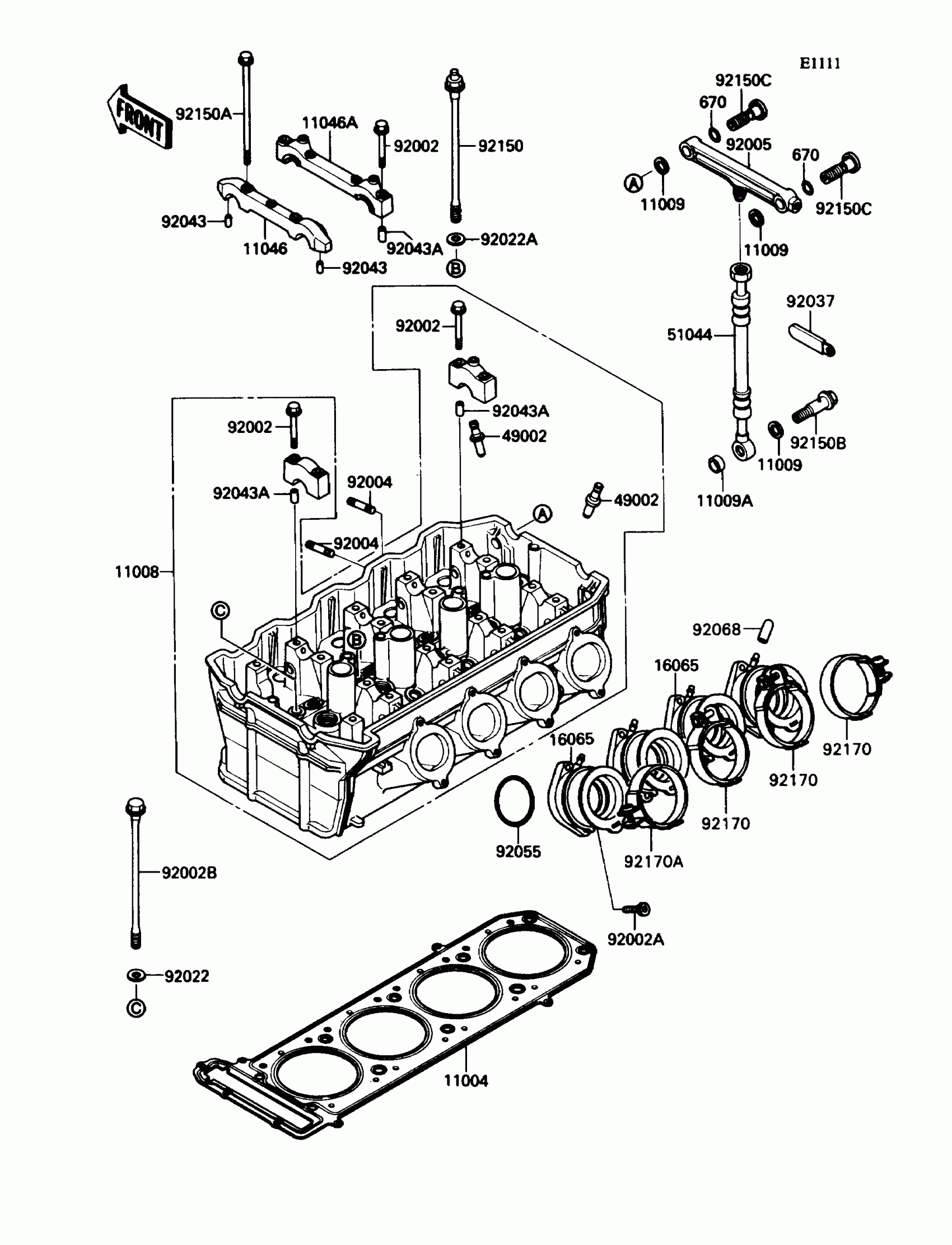

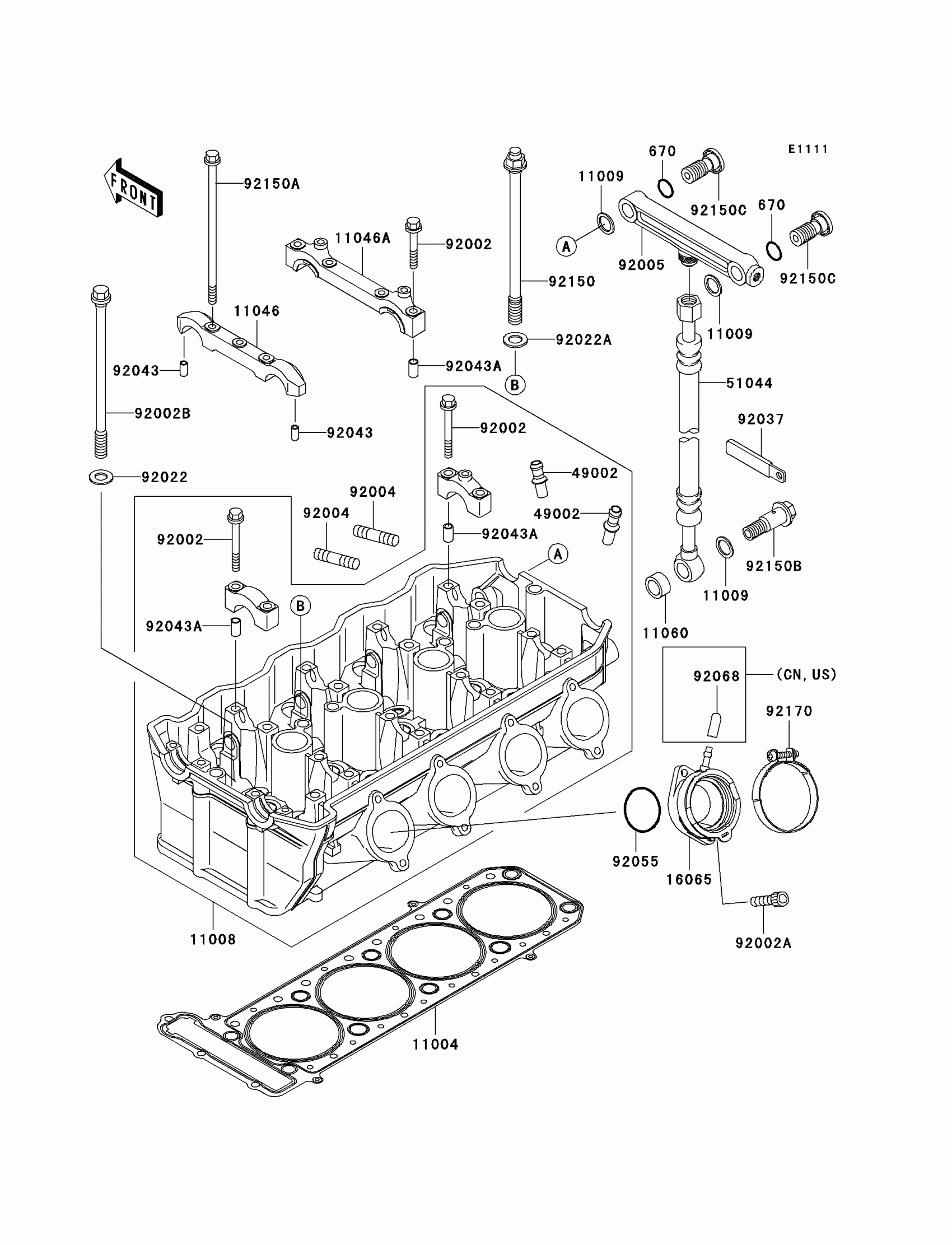

Kawasaki Ninja® ZX™-11 Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-1201

Unavailable

11008

HEAD-COMP-CYLINDER

11008-1233

Unavailable

11009

GASKET,14X19.5X1.4

11009-1461

$4.96

11009A

GASKET,14X20X10

11009-1726

Unavailable

11046

BRACKET,CAMSHAFT,#9

11046-1150

$47.06

11046A

BRACKET,CAMSHAFT,#10

11046-1151

$47.06

16065

HOLDER-CARBURETOR

16065-1210

$45.80

49002

GUIDE-VALVE

49002-1097

Unavailable

51044

TUBE-ASSY

51044-1094

Unavailable

92002

BOLT,6X40

92002-1756

$4.69

92002A

BOLT,SOCKET,6X16

92002-1778

$5.00

92002B

BOLT,10X164

92002-1943

$15.30

92004

STUD,8X22

92004-1181

$5.05

92005

FITTING

92005-1168

$87.26

92022

WASHER,10.5X20X1.6

92022-1591

$4.34

92022A

WASHER,11.5X20.5X1.6

92022-1720

$4.31

92037

CLAMP

92037-1997

$4.67

92043

PIN,4.2X6X12

92043-1262

$4.31

92043A

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,43.7X1.9

92055-1401

$13.75

92068

PLUG,12X25

92068-006

$4.26

92150

BOLT,11X164

92150-1075

$19.83

92150A

BOLT,6X148

92150-1076

$8.66

92150B

BOLT,BANJO,12X40.5

92150-1077

$18.75

92150C

BOLT

92150-1078

$27.86

92170

CLAMP

92170-1160

$11.34

92170A

CLAMP

92170-1161

$12.72

670

O RING,15MM

670B2015

$1.42
