Description

Price

220

SCREW-PAN-CROS,4X8

220D0408

$0.68

220A

SCREW-PAN-CROS,4X14

220D0414

$4.60

11012

CAP,DRAIN SCREW

11012-1675

$9.20

13091

HOLDER,NEEDLE JET

13091-1698

$39.96

14041

COVER-COMP,MIXING

14041-1100

$86.95

16007

SEAT-SPRING,VALVE

16007-1117

$25.03

16009

NEEDLE-JET,N96X

16009-1786

$39.96

16014

SCREW-PILOT AIR

16014-1086

$37.39

16016

PLUNGER,STARTER

16016-1090

$66.52

16030

VALVE-FLOAT

16030-1077

$110.73

16031

FLOAT

16031-1080

$59.39

16035

JET-AIR,LEAK

16035-1055

$15.74

16126

VALVE,VACUUM

16126-1247

$213.79

92009

SCREW,4X4.4

92009-1549

$5.24

92009A

SCREW,4X8

92009-1550

$4.38

92009B

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92055

RING-O,FLOAT CHAMBER

92055-1426

$20.99

92063

JET-MAIN,#152

92063-1331

$14.79

92063A

JET-MAIN,#155

92063-1332

$14.79

92063B

JET-MAIN,#158

92063-1344

$14.79

92063C

JET-MAIN,#160

92063-1345

$14.79

92063D

JET-MAIN,#162

92063-1346

$15.74

92063E

JET-MAIN,#165

92063-1347

$16.92

92064

JET-PILOT,#38

92064-1119

$19.05

92144

SPRING,THROTTLE VALVE

92144-1535

$139.73

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

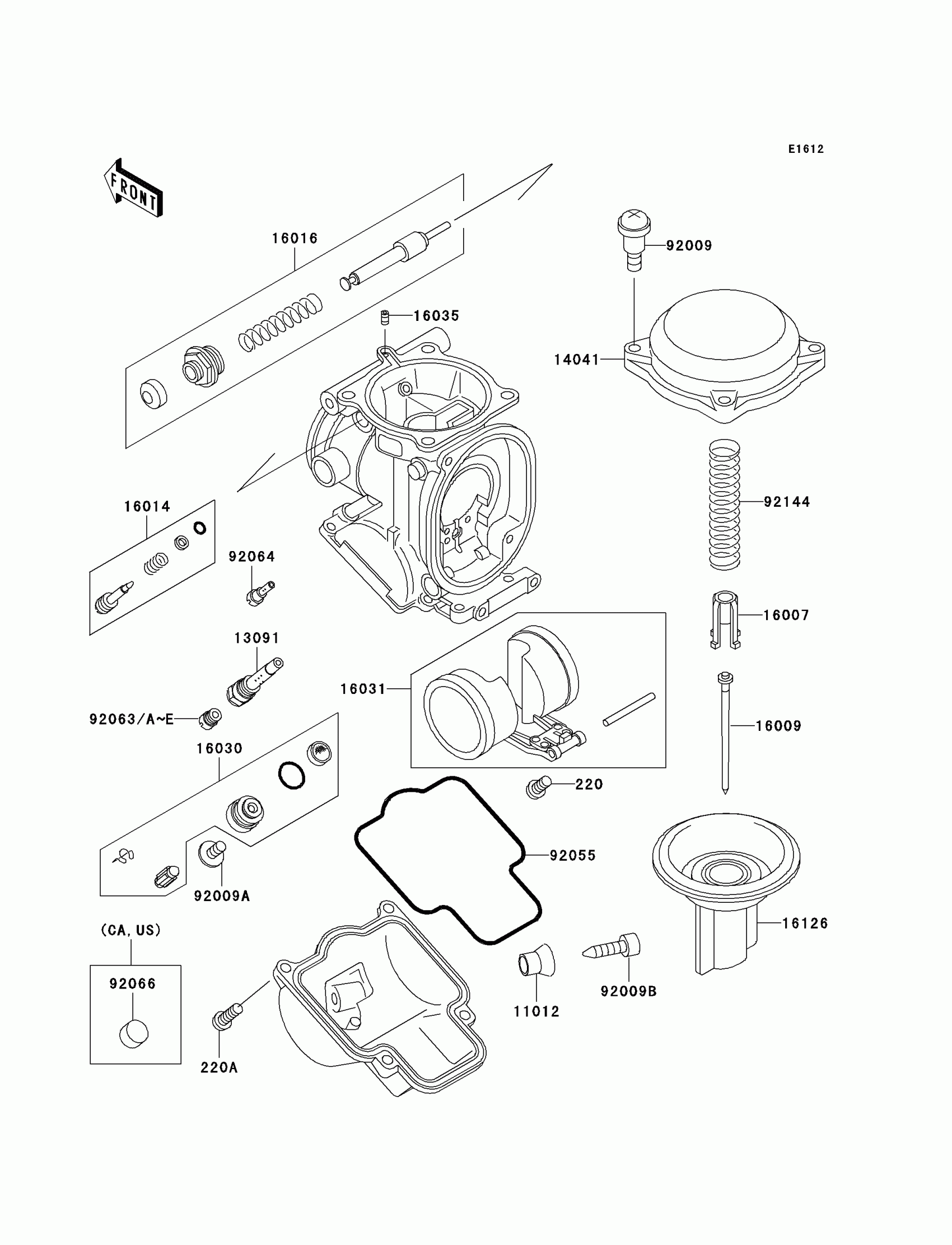

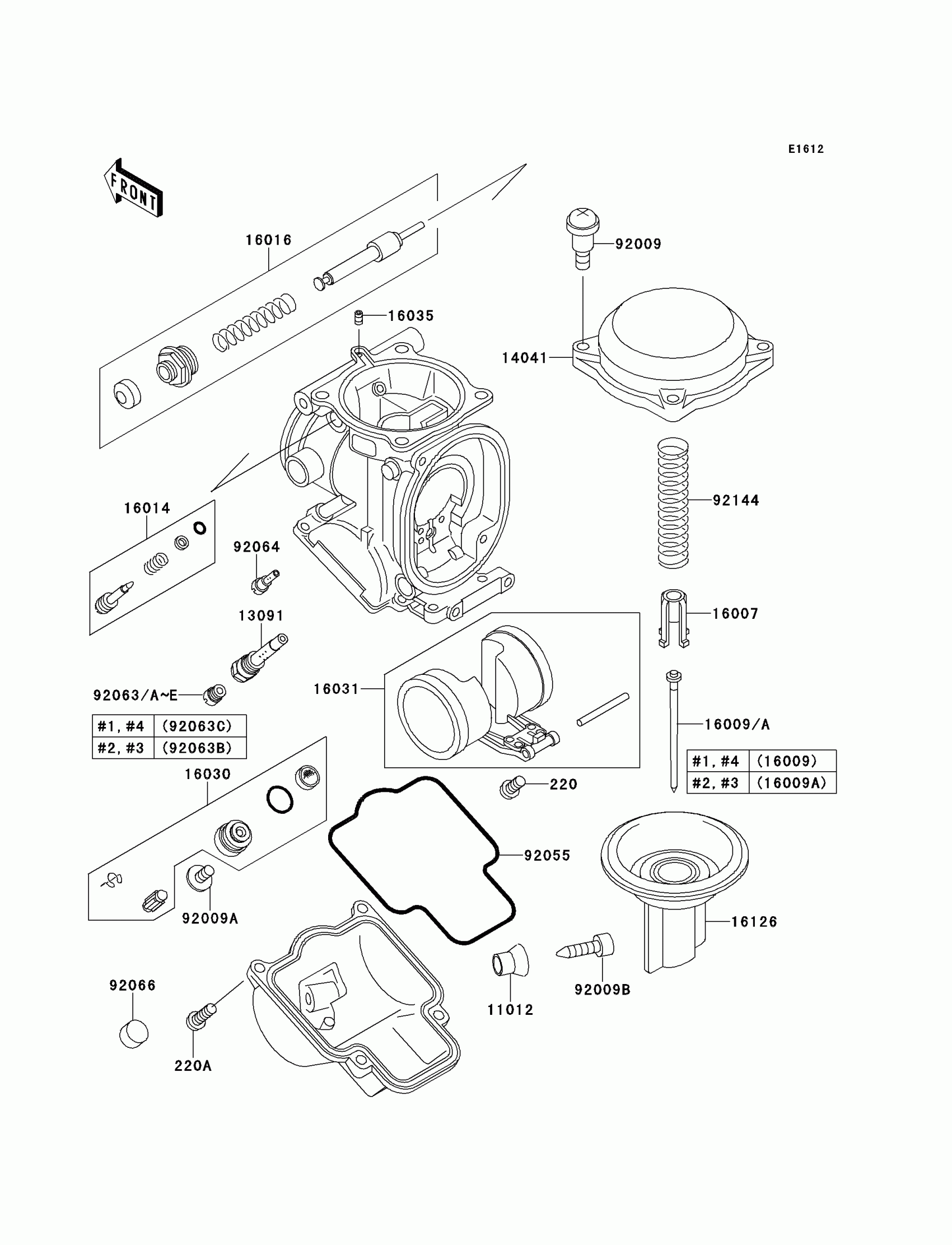

Kawasaki Ninja® ZX™-11 Carburetor Parts Diagram

SCREW-PAN-CROS,4X8

SCREW-PAN-CROS,4X14

CAP,DRAIN SCREW

HOLDER,NEEDLE JET

COVER-COMP,MIXING

SEAT-SPRING,VALVE

NEEDLE-JET,N96X

SCREW-PILOT AIR

PLUNGER,STARTER

VALVE-FLOAT

FLOAT

JET-AIR,LEAK

VALVE,VACUUM

SCREW,4X4.4

SCREW,4X8

SCREW,DRAIN,M6X0.75

RING-O,FLOAT CHAMBER

JET-MAIN,#152

JET-MAIN,#155

JET-MAIN,#158

JET-MAIN,#160

JET-MAIN,#162

JET-MAIN,#165

JET-PILOT,#38

SPRING,THROTTLE VALVE

PLUG,PILOT AIR SCREW,6.9X2
