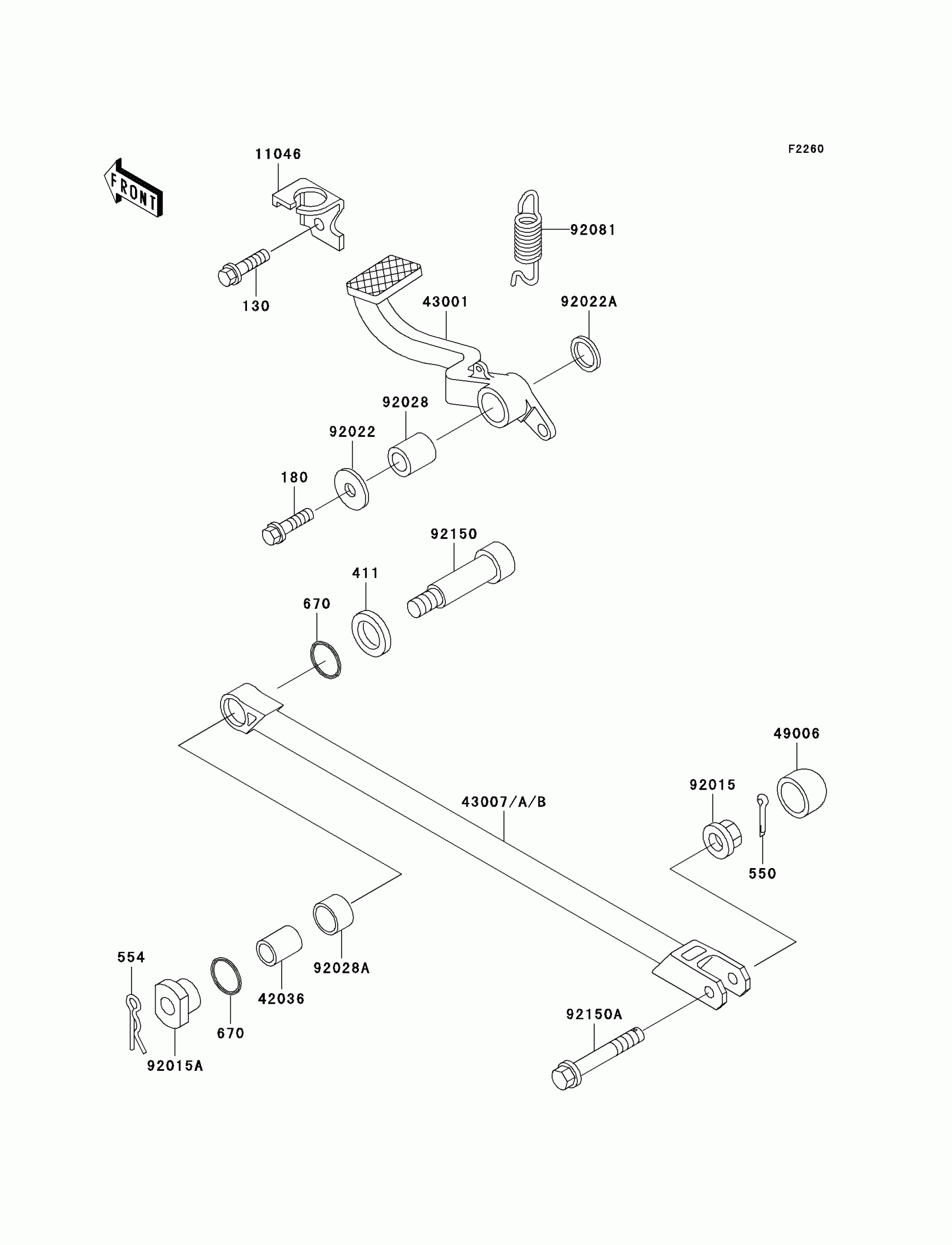

Kawasaki Ninja® ZX™-11 Brake Pedal/Torque Link Diagram

Description

Price

130

BOLT-FLANGED,6X10

130H0610

Unavailable

180

BOLT-UPSET-WS,6X14

180H0614

Unavailable

411

WASHER-PLAIN,10MM

411D1000

$4.25

550

PIN COTTER 2.0X15

550D2015

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable

670

O RING,16MM

670B2016

$1.04

11046

BRACKET,REAR BRAKE SWITCH

11046-1252

Unavailable

42036

SLEEVE,10.1X16X20

42036-1242

$17.92

43001

LEVER-BRAKE,PEDAL

43001-1292

$118.02

49006

BOOT

49006-1218

$5.05

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,8MM

92015-1747

$17.32

92022

WASHER,7X28X1.6

92022-1282

$3.57

92022A

WASHER,15.3X24X1

92022-326

$2.99

92028

BUSHING,BRAKE PEDAL

92028-1282

$13.39

92028A

BUSHING

92028-1468

$10.00

92081

SPRING,BRAKE PEDAL

92081-1833

$7.76

92150

BOLT,SOCKET,8X61

92150-1167

Unavailable

92150A

BOLT,FLANGED,8X47

92150-1539

Unavailable

43007

ROD-TORQUE,G.GRAY

43007-1165-GD

Unavailable

43007B

ROD-TORQUE,SILVER NO.35

43007-1165-VZ

Unavailable
