Description

Price

13127

SHAFT-TRANSMISSION INPUT,15T

13127-0671

$306.05

13128

SHAFT-TRANSMISSION OUTPUT

13128-0670

$234.25

13144

SPROCKET-OUTPUT,17T,#525

13144-0004

$51.53

13262

GEAR,OUTPUT LOW,39T

13262-1207

$175.26

13262A

GEAR,INPUT 2ND,19T

13262-1529

$77.12

13262B

GEAR,INPUT 3RD&4TH,17T&20T

13262-1530

$255.54

13262C

GEAR,INPUT 5TH,21T

13262-1531

$125.26

13262D

GEAR,INPUT 6TH,23T

13262-1532

$127.20

13262E

GEAR,OUTPUT 2ND,41T

13262-1533

$196.68

13262F

GEAR,OUTPUT 3RD,32T

13262-1534

$102.76

13262G

GEAR,OUTPUT 4TH,33T

13262-1535

$124.79

13262H

GEAR,OUTPUT 5TH,31T

13262-1536

$186.15

13262I

GEAR,OUTPUT 6TH,30T

13262-1537

$199.69

92033

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92033A

RING-SNAP,T=1.5

92033-1249

$4.96

92045

BEARING-BALL,830045-5SH2

92045-0047

$36.26

92045A

BEARING-BALL,DG2152RDDSH2

92045-0048

$41.98

92045B

BEARING-BALL,63/22LU

92045-0156

$32.84

92045C

BEARING-BALL,63/28

92045-1189

$48.00

92055

RING-O,21.5X1.5

92055-1293

$5.00

92139

BUSHING,GEAR,6TH IN

92139-0036

$26.39

92139A

BUSHING,GEAR,LOW OUT

92139-0038

$13.24

92139B

BUSHING,25.0X31.0X9.4

92139-0309

$21.29

92139C

BUSHING,28.1X31.0X13.5

92139-0324

$21.29

92139D

BUSHING,28.1X31.0X11.5

92139-0734

$10.80

92152

COLLAR

92152-0885

$29.34

92200

WASHER,28.3X34.0X1.6

92200-0050

$4.15

92200A

WASHER,22.1X32.0X1.4

92200-0138

$3.73

92200B

WASHER,25.8X40.5X1.5

92200-1522

$4.83

92200C

WASHER,25.2X37.0X1.0

92200-1523

$6.36

92200D

WASHER

92200-1720

$3.63

92210

NUT,20MM

92210-0850

$14.39

600

BALL-STEEL,5/32

600A0500

$0.81

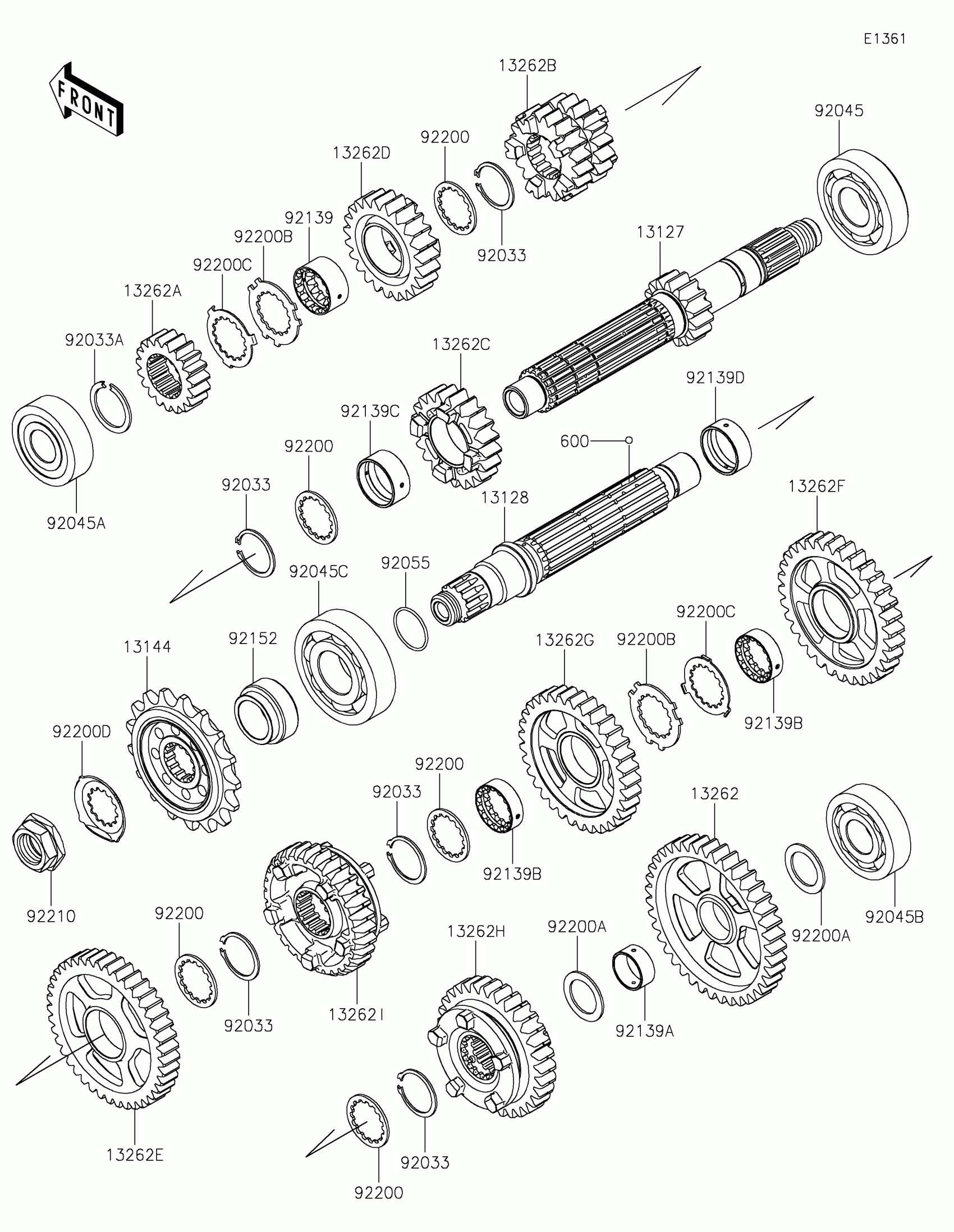

Kawasaki Ninja® ZX™-10RR (US) Transmission Diagram
