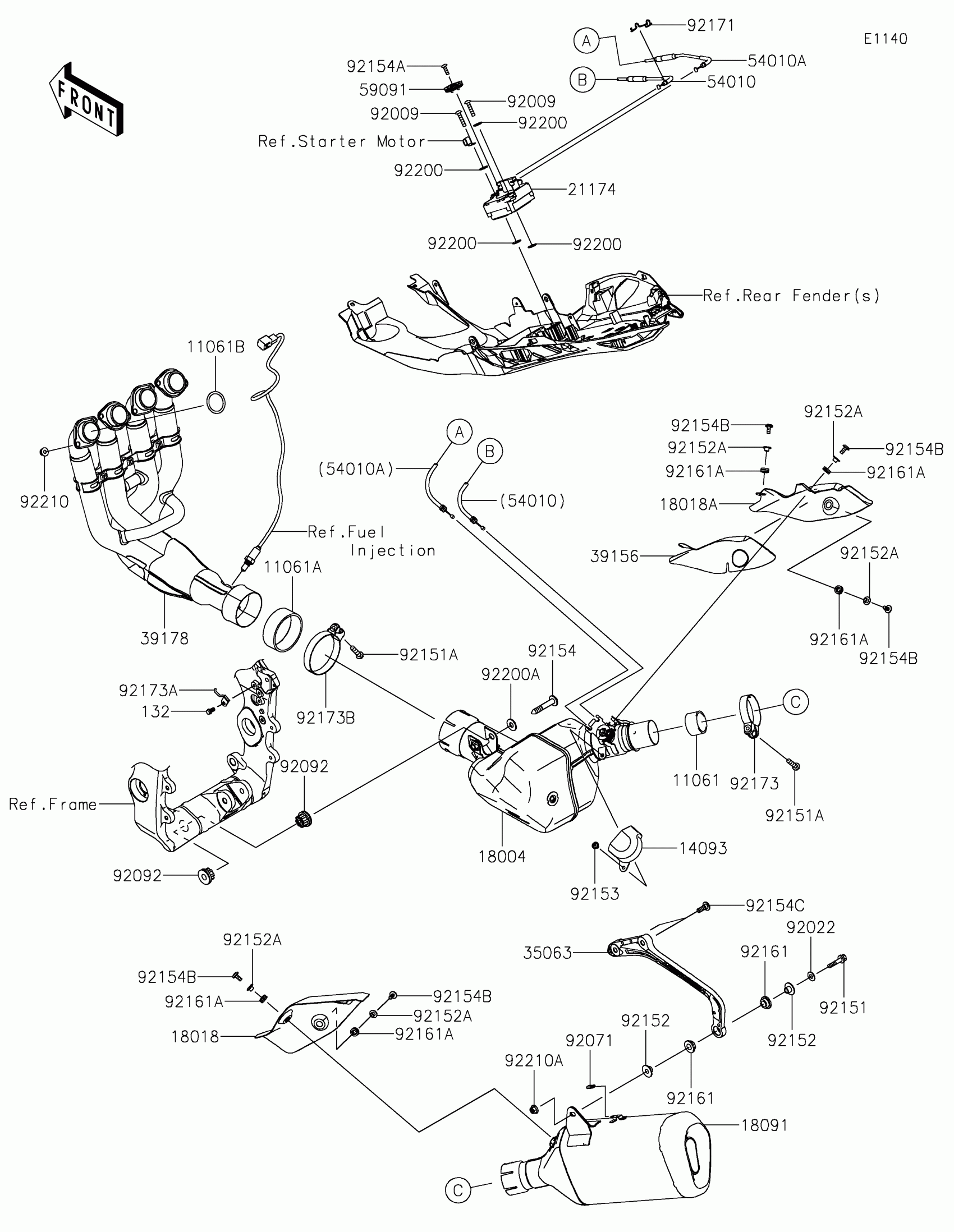

Kawasaki Ninja® ZX™-10RR (US) Muffler(s) Diagram

#

Description
Price

11061

GASKET,50.8X62X30

11061-0447

$25.48

11061A

GASKET,76X84X30

11061-1384

$25.51

11061B

GASKET,EXHAUST PIPE

11061-1387

$10.80

14093

COVER,PULLEY

14093-1062

$32.72

18004

CHAMBER-PREMUFFLER

18004-0114

$1,812.67

18018

PLATE-HEAT GUARD,MUFFLER

18018-0627

$374.40

18018A

PLATE-HEAT GUARD,CHAMBER

18018-0628

$263.46

18091

BODY-COMP-MUFFLER

18091-1195

$1,967.96

21174

MOTOR-ELECTRIC

21174-0009

$337.67

35063

STAY

35063-1380

$178.55

39156

PAD,HEAT GUARD

39156-2619

$11.86

39178

MANIFOLD-COMP-EXHAUST

39178-0390

$2,423.81

54010

CABLE,OPEN

54010-0610

$82.60

54010A

CABLE,CLOSE

54010-0611

$82.60

59091

PULLEY

59091-0007

$22.29

92009

SCREW,TAPPING,6X30

92009-1481

$4.69

92022

WASHER,8.5X19X1.2

92022-3730

$4.31

92071

GROMMET

92071-1270

$7.22

92092

BUSHING-RUBBER,MUFFLER

92092-1087

$19.90

92151

BOLT,FLANGED,8X40

92151-1532

$2.67

92151A

BOLT,FLANGED,8X35

92151-1537

$2.67

92152

COLLAR

92152-0188

$3.73

92152A

COLLAR,6.3X8.3X16

92152-2180

$5.69

92153

BOLT,SOCKET,6X10

92153-1527

$1.78

92154

BOLT,SOCKET,10X61

92154-0125

$13.18

92154A

BOLT,TORX,5X18

92154-0217

$3.71

92154B

BOLT,SOCKET,6X14

92154-0907

$1.97

92154C

BOLT,SOCKET,8X23

92154-1901

$3.63

92161

DAMPER

92161-0135

$3.44

92161A

DAMPER

92161-0308

$3.90

92171

CLAMP

92171-0292

$10.11

92173

CLAMP,64.5MM

92173-0284

$32.48

92173A

CLAMP

92173-1528

$9.67

92173B

CLAMP

92173-2317

$50.89

92200

WASHER

92200-0078

$2.12

92200A

WASHER,10.5X25X2.0

92200-1377

$4.18

92210

NUT,8MM

92210-0076

$5.48

92210A

NUT,8MM

92210-0121

$2.26

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20
