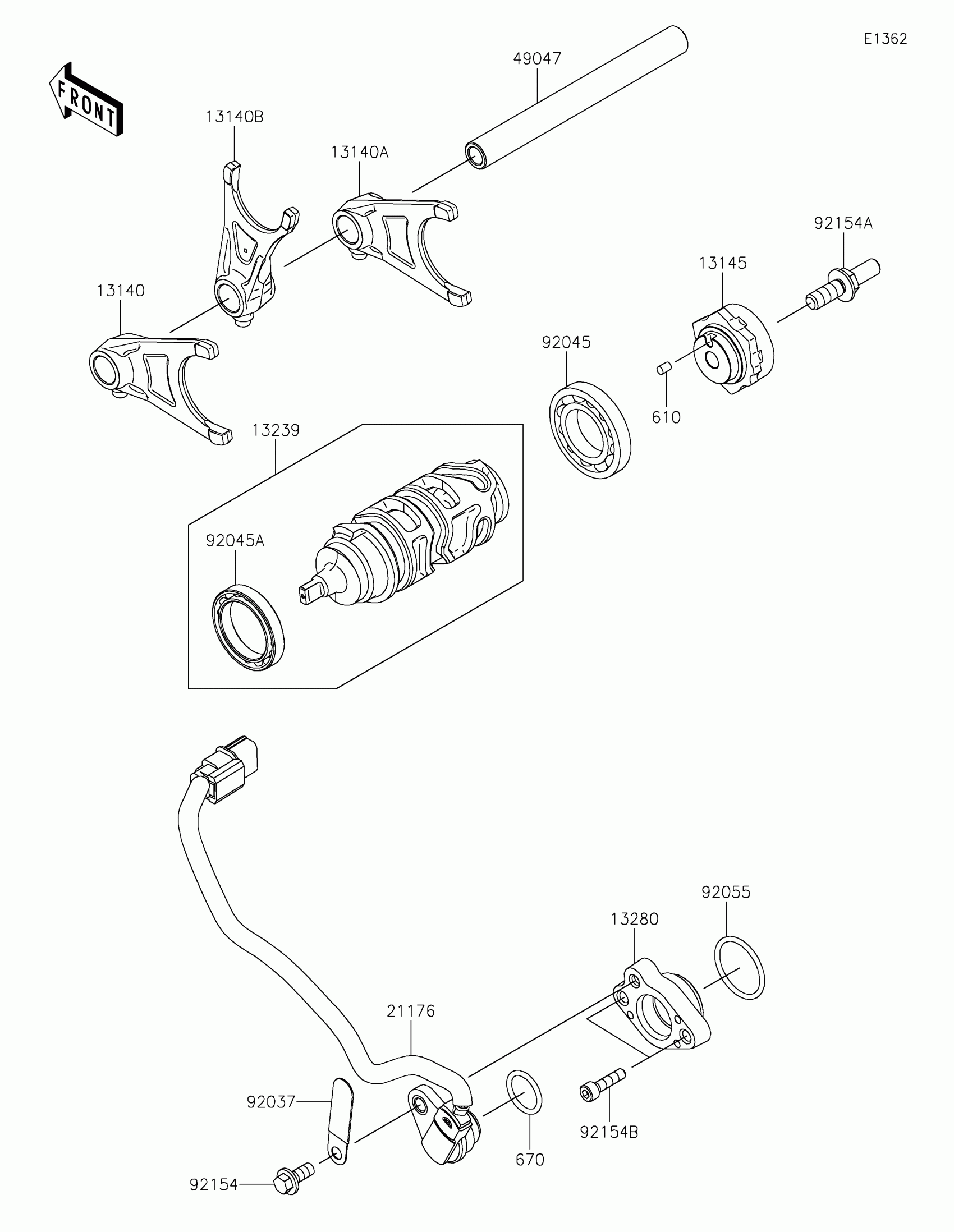

Kawasaki Ninja® ZX™-10RR (US) Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT,OUTPUT,LH

13140-0064

$106.75

13140A

FORK-SHIFT,OUTPUT,RH

13140-0065

$106.75

13140B

FORK-SHIFT,INPUT,CNT

13140-0650

$112.82

13145

CAM-CHANGE DRUM

13145-0051

$57.18

13239

DRUM-ASSY-CHANGE

13239-0041

$211.21

13280

HOLDER,GEAR POSITION SENSOR

13280-0846

$29.62

21176

SENSOR,GEAR POSITION

21176-0820

$151.78

49047

ROD-SHIFT

49047-0623

$54.11

92037

CLAMP,L=45

92037-1539

$5.00

92045

BEARING-BALL,16005

92045-1045

$28.25

92045A

BEARING-BALL,6806

92045-1152

$45.82

92055

RING-O,27.7X2.4

92055-091

$6.22

92154

BOLT,FLANGED,6X14

92154-1797

$3.29

92154A

BOLT

92154-1883

$13.08

92154B

BOLT,SOCKET,5X20

92154-2084

$2.26

610

ROLLER,4X6

610A0406

$4.31

670

O RING,18MM

670D2018

$1.91
