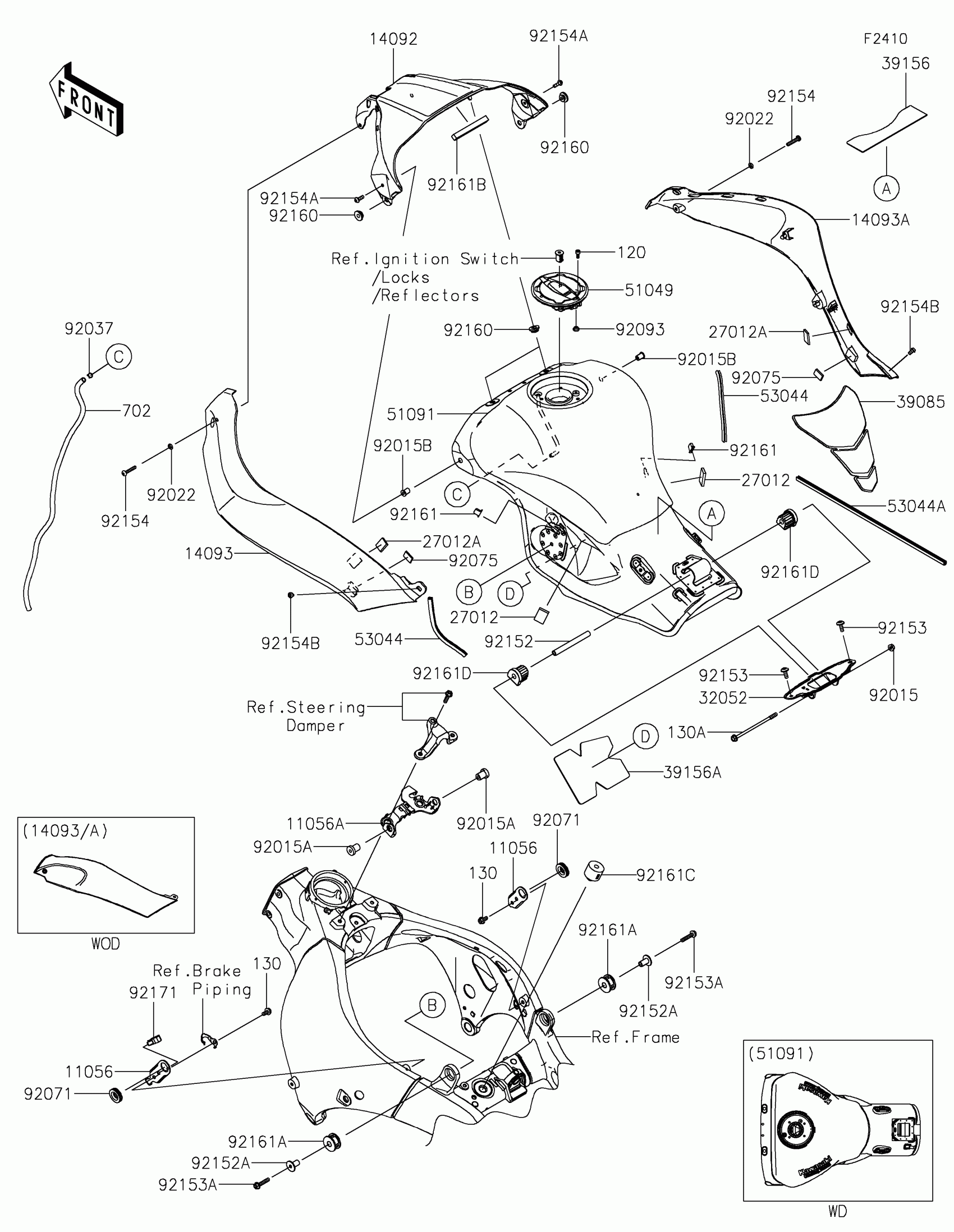

Kawasaki Ninja® ZX™-10RR (US) Fuel Tank Diagram

#

Description
Price

11056

BRACKET,TANK COVER,SIDE

11056-0242

$7.98

11056A

BRACKET,TANK COVER,FR

11056-7782

$10.46

14092

COVER,TANK,CNT,L.GREEN

14092-0786-777

$166.35

14093

COVER,TANK,LH,L.GREEN

14093-0680-777

$205.31

14093A

COVER,TANK,RH,L.GREEN

14093-0681-777

$205.31

27012

HOOK

27012-0170

$5.54

27012A

HOOK

27012-0171

$5.91

32052

BRACKET-TANK

32052-0154

$36.45

39085

PAD-TANK

39085-0011

$120.02

39156

PAD,40X180X1.0

39156-0745

$19.13

39156A

PAD,106X141X2

39156-2403

$12.82

51049

CAP-TANK,FUEL

51049-0756

$136.31

51091

TANK-COMP-FUEL,L.GREEN

51091-5475-777

$988.43

53044

TRIM,L=157

53044-1276

$8.86

53044A

TRIM,L=400

53044-1310

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,RUBBER,6MM

92015-1692

$7.34

92015B

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER-PLAIN

92022-183

$3.92

92037

CLAMP,TUBE

92037-010

$3.92

92071

GROMMET

92071-1043

$5.46

92075

DAMPER

92075-1982

$4.39

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.8X10X60

92152-1182

$4.83

92152A

COLLAR,6.8X10X20.1

92152-2200

$6.24

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92153A

BOLT,FLANGED,6X28

92153-1580

$2.15

92154

BOLT,SOCKET,6X30

92154-0206

$2.75

92154A

BOLT,SOCKET,5X16

92154-0209

$2.75

92154B

BOLT,SOCKET,5X10

92154-0211

$2.12

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0365

$5.33

92161A

DAMPER,10X30X16

92161-0869

$4.41

92161B

DAMPER,10X90X10

92161-0963

$1.94

92161C

DAMPER

92161-1116

$9.19

92161D

DAMPER,FUEL TANK,RR

92161-1330

$6.18

92171

CLAMP

92171-0782

$3.90

120

BOLT-SOCKET,5X12

120CA0512

$1.57

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X75

130BA0675

$1.63

702

TUBE-RUBBER,6X9X660

702A06660

$5.48
