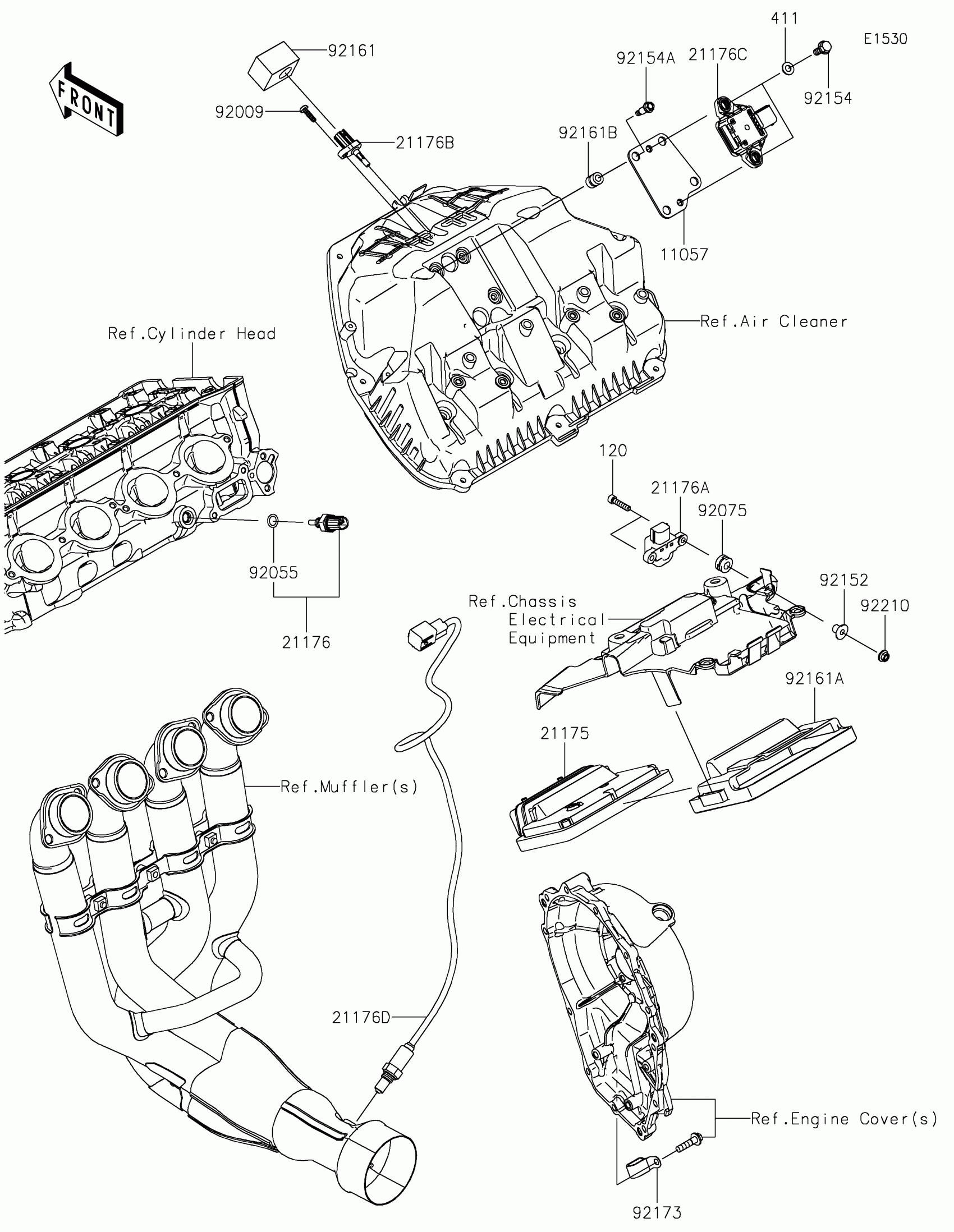

Kawasaki Ninja® ZX™-10RR (US) Fuel Injection Diagram

Description

Price

11057

BRACKET,GYRO SENSOR

11057-1847

$8.98

21175

CONTROL UNIT-ELECTRONIC

21175-1662

$1,481.76

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176C

SENSOR,INERTIAL

21176-0878

$666.31

21176D

SENSOR,OXYGEN

21176-0933

$235.01

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92055

RING-O,9.5X1.9

92055-0016

$8.89

92075

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-1969

$61.28

92154

BOLT,FLANGED,6X16

92154-1851

$2.15

92154A

BOLT,FLANGED,5X13.1

92154-3841

$7.43

92161

DAMPER

92161-0985

$6.00

92161A

DAMPER,ECU

92161-2140

$27.22

92161B

DAMPER,GYRO SENSOR

92161-2142

$7.43

92173

CLAMP

92173-1549

$5.23

92210

NUT,FLANGED,5MM

92210-0950

$3.92

120

BOLT-SOCKET,5X22

120R0522

$2.55

411

WASHER-PLAIN,6MM

411S0600

$2.06
