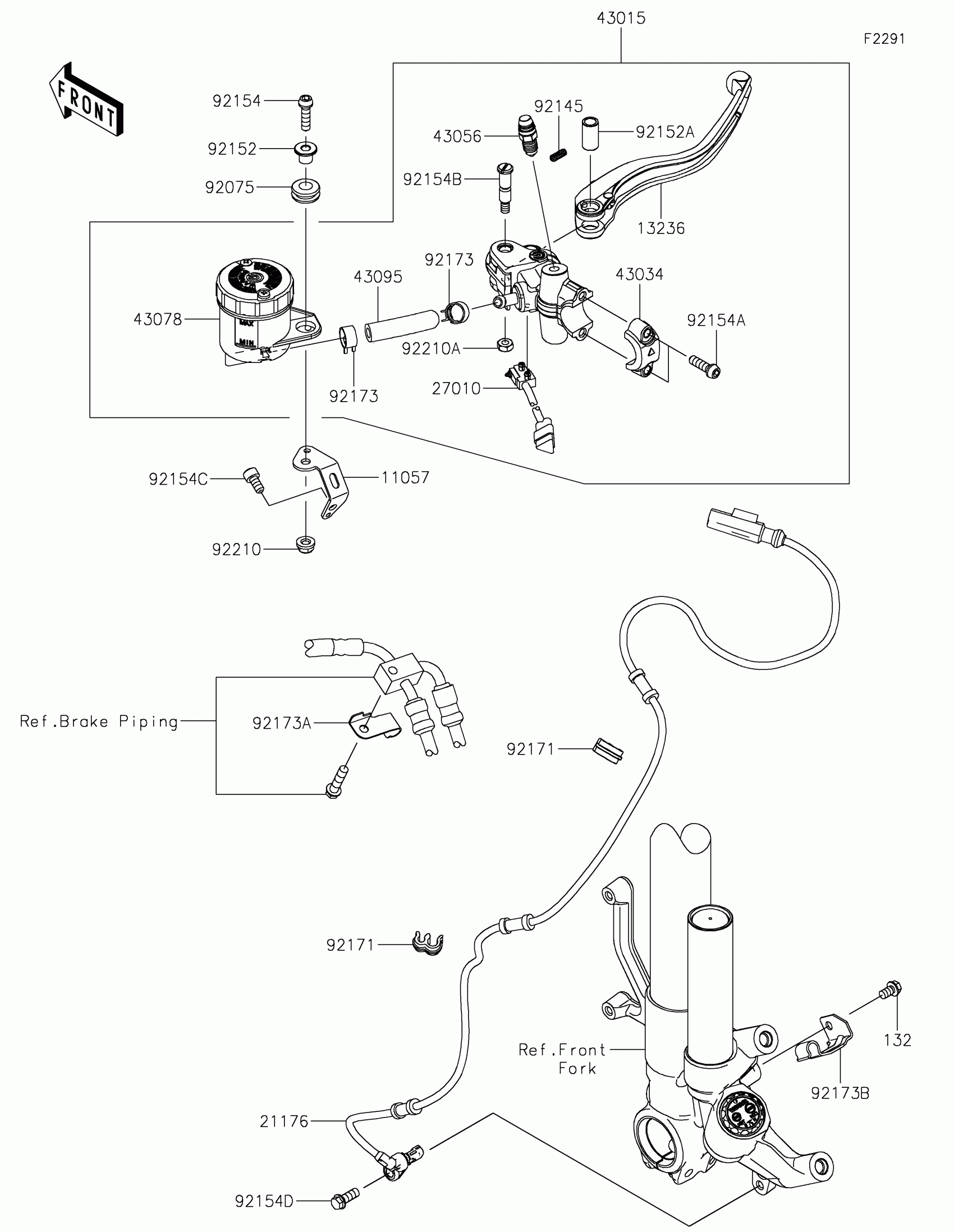

Kawasaki Ninja® ZX™-10RR (US) Front Master Cylinder Diagram

Description

Price

11057

BRACKET,RESERVOIR TANK

11057-4250

$15.80

13236

LEVER-COMP,BRAKE

13236-0770

$104.60

21176

SENSOR,FR WHEEL

21176-0979

$110.68

27010

SWITCH,BRAKE

27010-0946

$84.38

43015

CYLINDER-ASSY-MASTER,FR

43015-0773

$446.54

43034

HOLDER-BRAKE

43034-0121

$51.23

43056

BREATHER-BRAKE

43056-0019

$24.76

43078

RESERVOIR

43078-0577

$29.79

43095

HOSE-BRAKE

43095-0908

$16.39

92075

DAMPER

92075-1028

$3.57

92145

SPRING

92145-1683

$2.63

92152

COLLAR,6X16X10.6

92152-2110

$22.61

92152A

COLLAR,LEVER

92152-2151

$11.03

92154

BOLT,SOCKET,6X22

92154-1456

$1.32

92154A

BOLT,SOCKET,6X20

92154-1644

$1.77

92154B

BOLT,LEVER

92154-1809

Unavailable

92154C

BOLT,SOCKET,6X12

92154-1978

$2.05

92154D

BOLT,FLANGED,6X16

92154-4217

$1.39

92171

CLAMP

92171-0921

$4.14

92173

CLAMP,HOSE

92173-1498

$1.88

92173A

CLAMP,UNDER BRACKET

92173-1507

$4.98

92173B

CLAMP,AXLE,LH

92173-1887

$11.54

92210

NUT,6MM

92210-0991

$5.66

92210A

NUT,U

92210-1424

$1.88

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27
