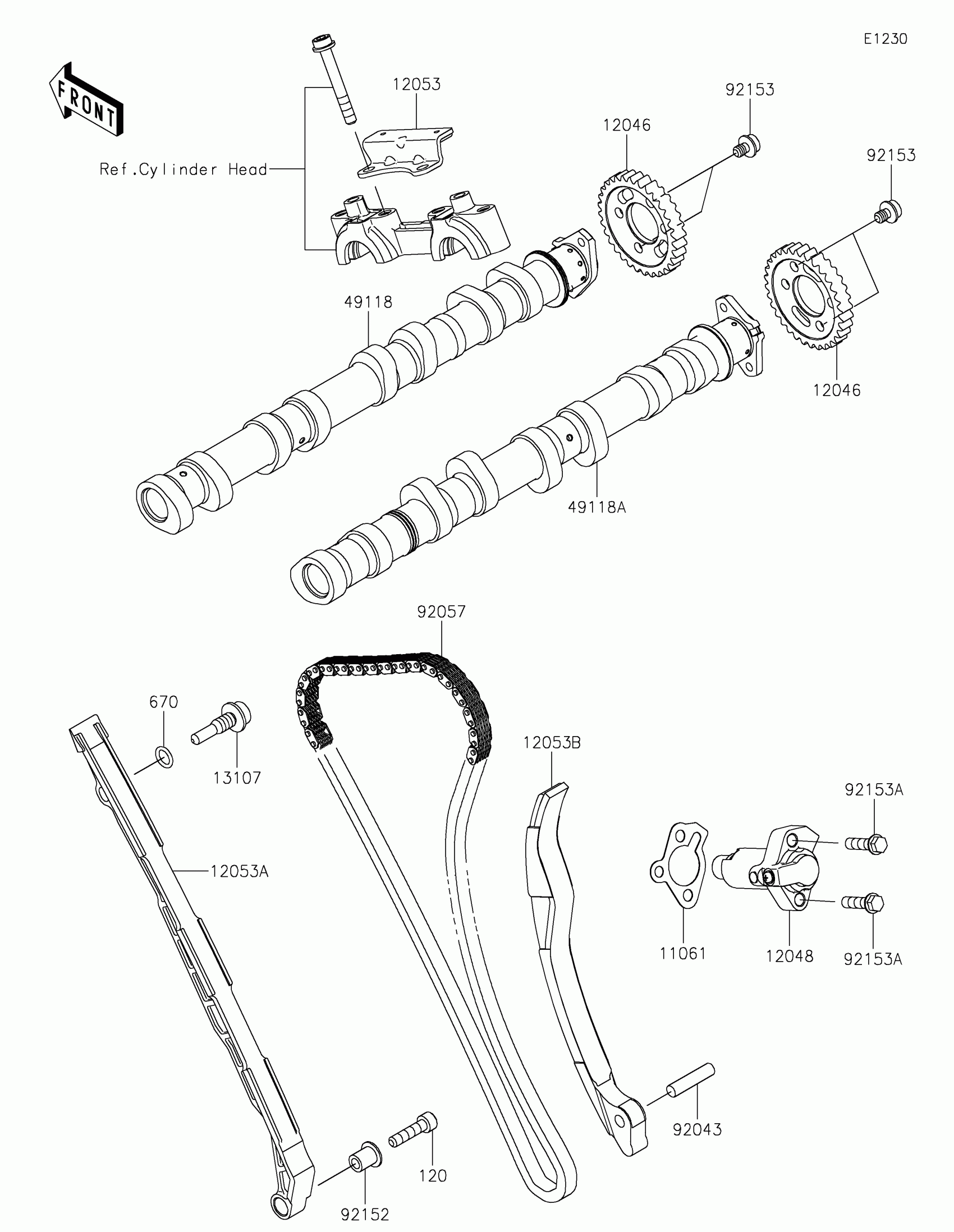

Kawasaki Ninja® ZX™-10RR (US) Camshaft(s)/Tensioner Diagram

Description

Price

11061

GASKET,TENSIONER

11061-0796

$2.64

12046

SPROCKET,32T

12046-0610

$71.07

12048

TENSIONER-ASSY

12048-0117

$185.93

12053

GUIDE-CHAIN,UPP

12053-0264

$66.63

12053A

GUIDE-CHAIN,FR

12053-0265

$75.36

12053B

GUIDE-CHAIN,RR

12053-0266

$113.02

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

49118

CAMSHAFT-COMP,EXHAUST

49118-0967

$498.78

49118A

CAMSHAFT-COMP,INTAKE

49118-1228

$547.59

92043

PIN,7X30.7

92043-0062

$5.25

92057

CHAIN,98XRH2020-128N2

92057-0755

$150.52

92152

COLLAR

92152-0413

$8.68

92153

BOLT,FLANGED,6X8

92153-0455

$2.55

92153A

BOLT,FLANGED-SMALL,6X22

92153-1560

$2.15

120

BOLT-SOCKET,6X25

120CA0625

$2.06

670

O RING,9MM

670D1509

$4.69
