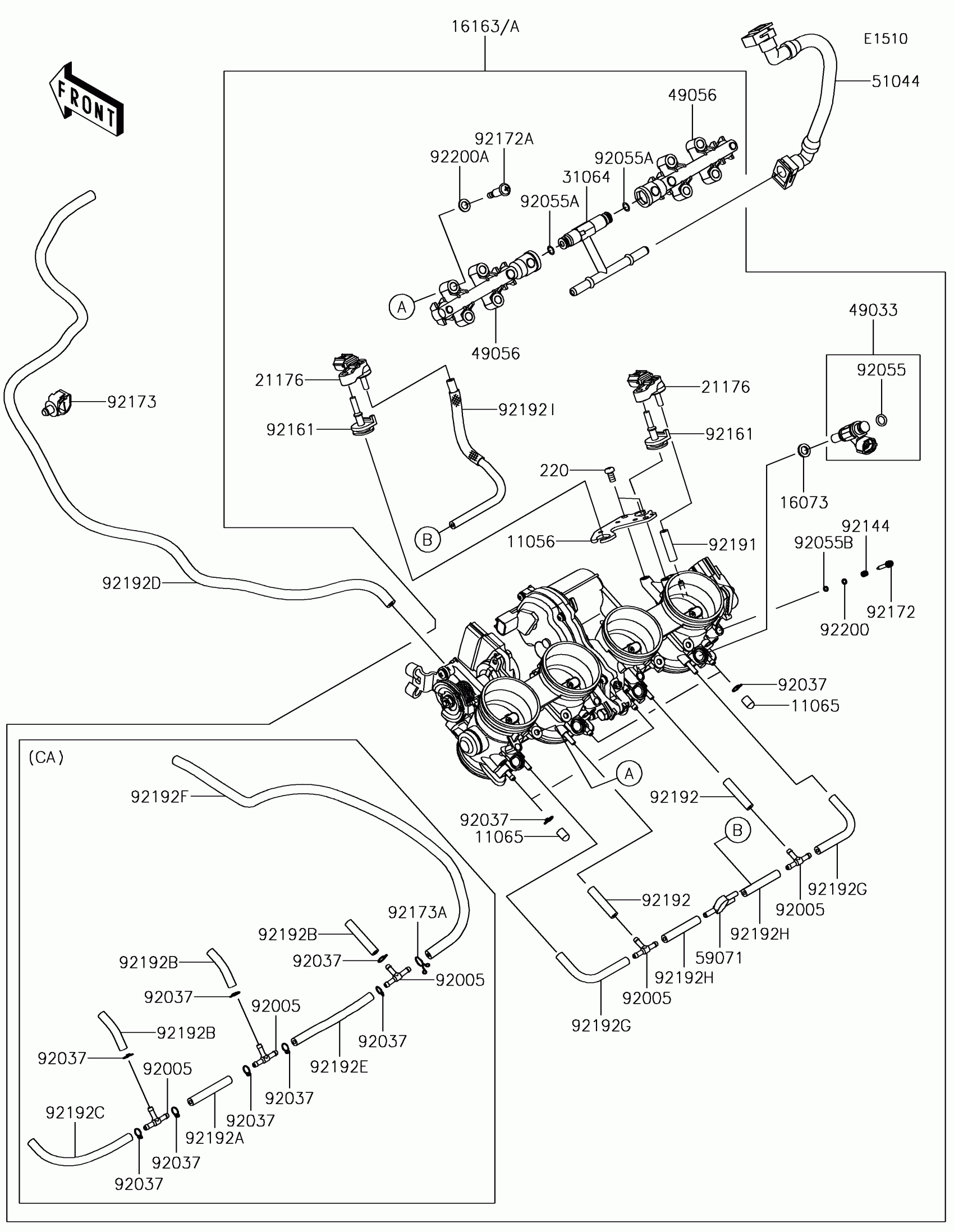

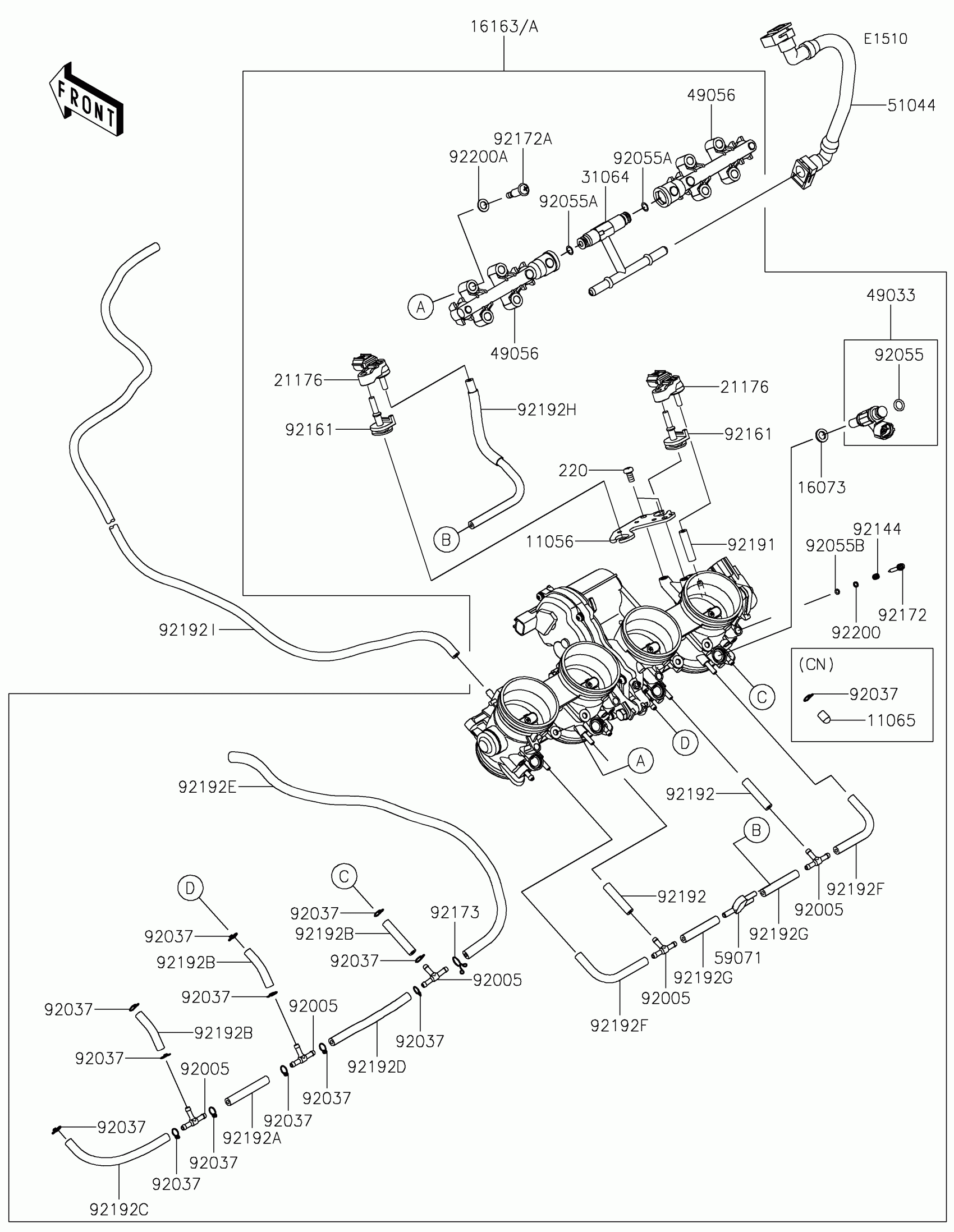

Kawasaki Ninja ZX-10RR Throttle Diagram

#

Description
Price

11056

BRACKET

11056-7844

$38.30

11065

CAP

11065-0072

$7.20

16073

INSULATOR

16073-0848

$11.51

16163

THROTTLE-ASSY

16163-1216

$2,023.98

16163A

THROTTLE-ASSY

16163-1217

Unavailable

21176

SENSOR,PRESSURE

21176-0906

$222.28

31064

PIPE-COMP

31064-0686

$108.99

49033

NOZZLE-INJECTION

49033-0564

$132.97

49056

PIPE-INJECTION

49056-0046

$110.89

51044

TUBE-ASSY,FUEL

51044-0859

$76.19

59071

JOINT

59071-0022

$17.44

92005

FITTING

92005-1380

$16.65

92037

CLAMP,TUBE

92037-1124

$6.11

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92055A

RING-O

92055-0761

$7.40

92055B

RING-O

92055-0840

$2.06

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92161

DAMPER

92161-0673

$5.54

92172

SCREW

92172-0156

$15.20

92172A

SCREW,PIPE INJECTION

92172-0828

$3.02

92173

CLAMP

92173-1568

$4.96

92191

TUBE,3.2X7.4X30

92191-1550

$2.39

92192

TUBE,3.2X7.4X35

92192-1234

$7.64

92192A

TUBE,3.5X7.5X55

92192-1349

$13.73

92192B

TUBE,3.5X7.5X40

92192-1494

$9.84

92192C

TUBE,3.5X7.5X125

92192-1497

$24.31

92192D

TUBE,3.5X7.5X100

92192-1521

$24.31

92192E

TUBE,L=450

92192-1612

$54.33

92192F

TUBE,3.2X7.4X85

92192-1616

$11.40

92192G

TUBE,3.2X7.4X45

92192-1617

$7.52

92192H

TUBE,3.2X7.4X200

92192-1618

$42.62

92192I

TUBE

92192-2610

$8.14

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58

92200A

WASHER

92200-3807

$6.00

220

SCREW-PAN-CROS,5X10

220AA0510

$0.71

92005

FITTING

92005-1380

$16.65

92037

CLAMP,TUBE

92037-1124

$6.11
