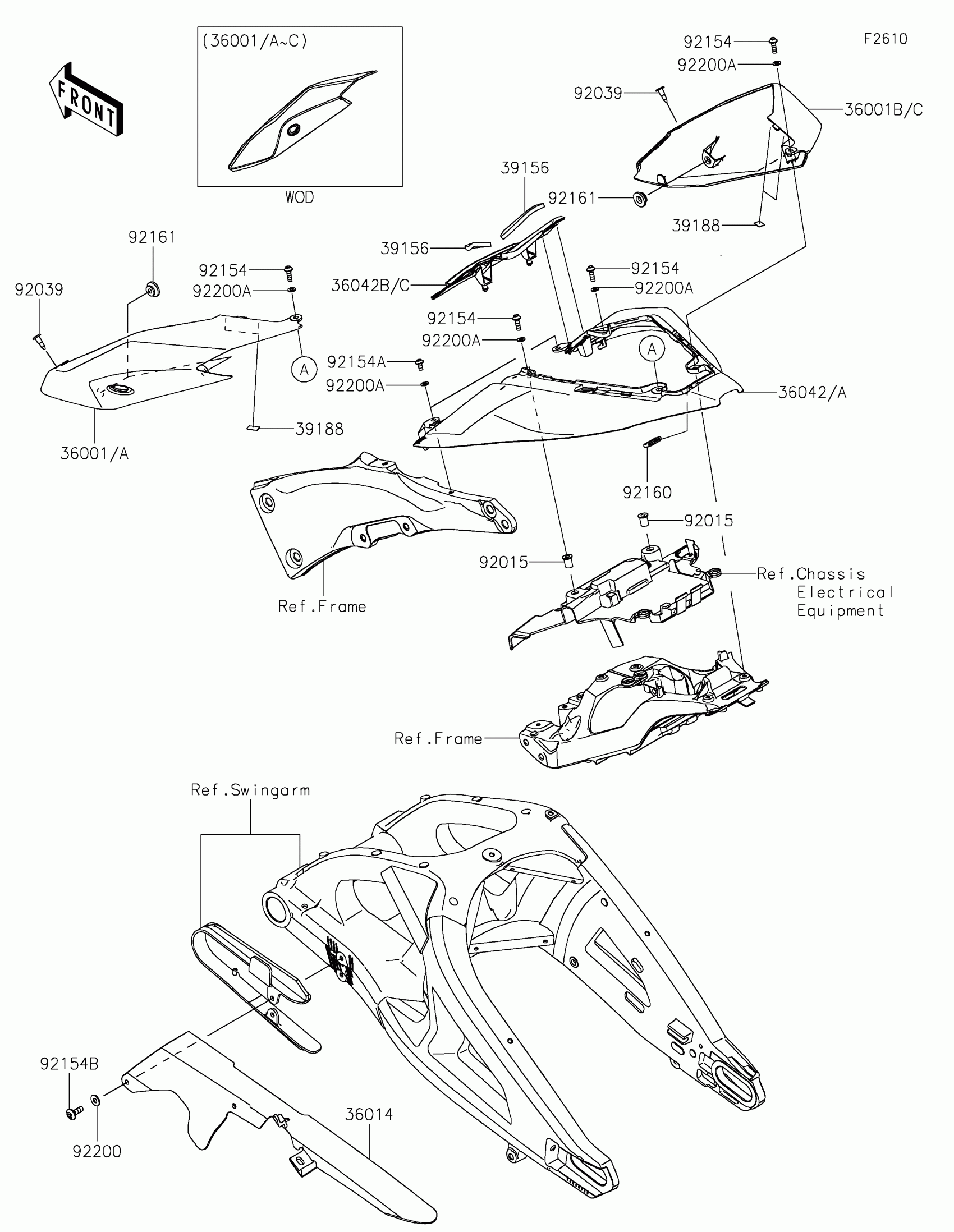

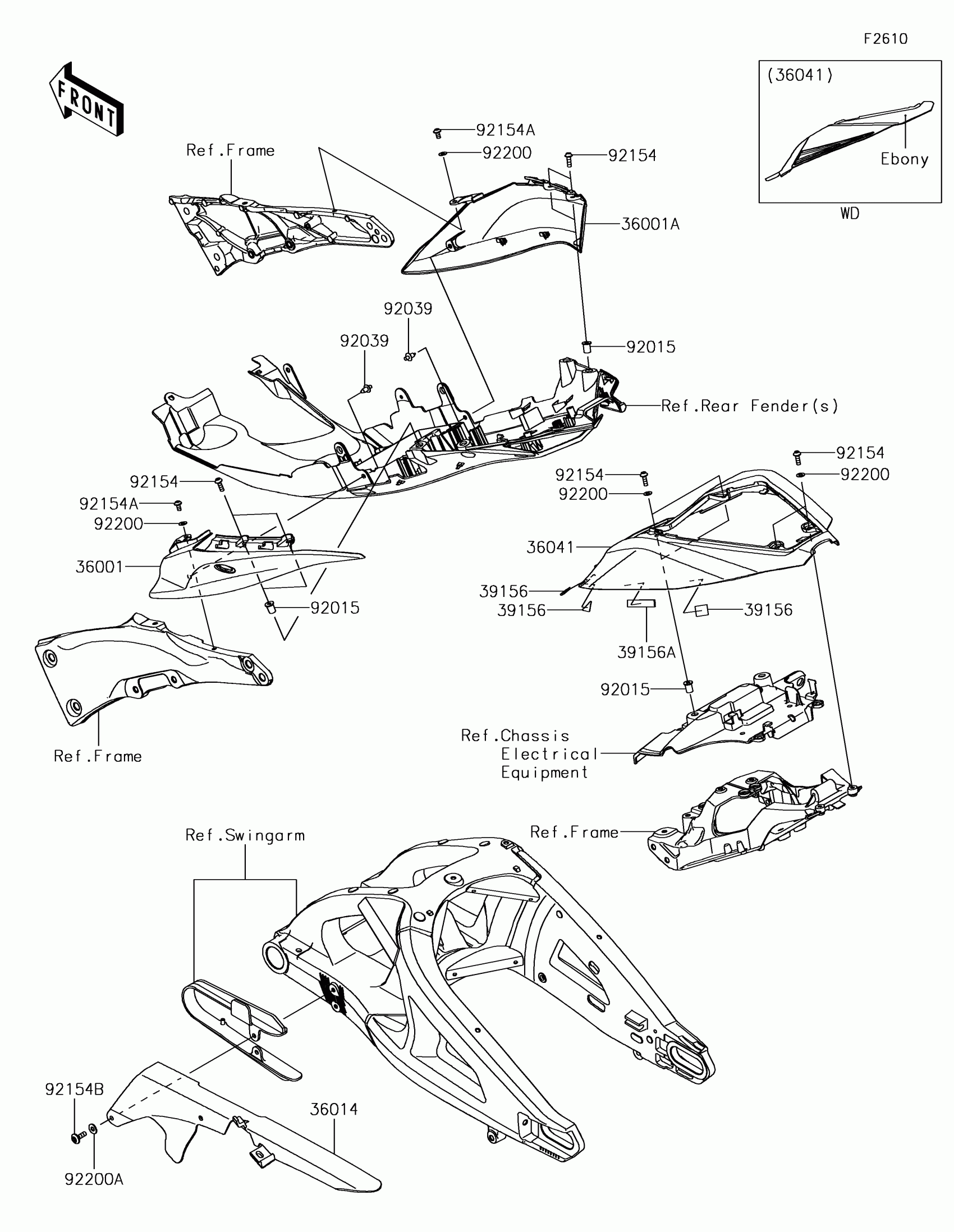

Kawasaki Ninja ZX-10RR Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH,M.M.G.GRAY

36001-0700-68P

$100.67

36001A

COVER-SIDE,LH,L.GREEN

36001-0700-777

$100.67

36001B

COVER-SIDE,RH,M.M.G.GRAY

36001-0701-68P

$100.67

36001C

COVER-SIDE,RH,L.GREEN

36001-0701-777

$100.67

36014

CASE-CHAIN

36014-0062

$26.09

36042

COVER-TAIL,M.M.G.GRAY

36042-0006-68P

$219.16

36042A

COVER-TAIL,L.GREEN

36042-0006-777

$228.17

36042B

COVER-TAIL,CNT,M.M.G.GRAY

36042-0007-68P

$66.43

36042C

COVER-TAIL,CNT,L.GREEN

36042-0007-777

$68.93

39156

PAD,10X76X5

39156-2192

$1.52

39188

TAPE

39188-0022

$0.84

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0068

$2.97

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X10

92154-0211

$2.12

92154B

BOLT,SOCKET,6X18

92154-1694

$2.75

92160

DAMPER

92160-1190

$4.08

92161

DAMPER

92161-1531

$3.02

92200

WASHER,6.2X15X1.2

92200-1762

$1.19

92200A

WASHER,5.2X10X1.0

92200-1820

$0.63
