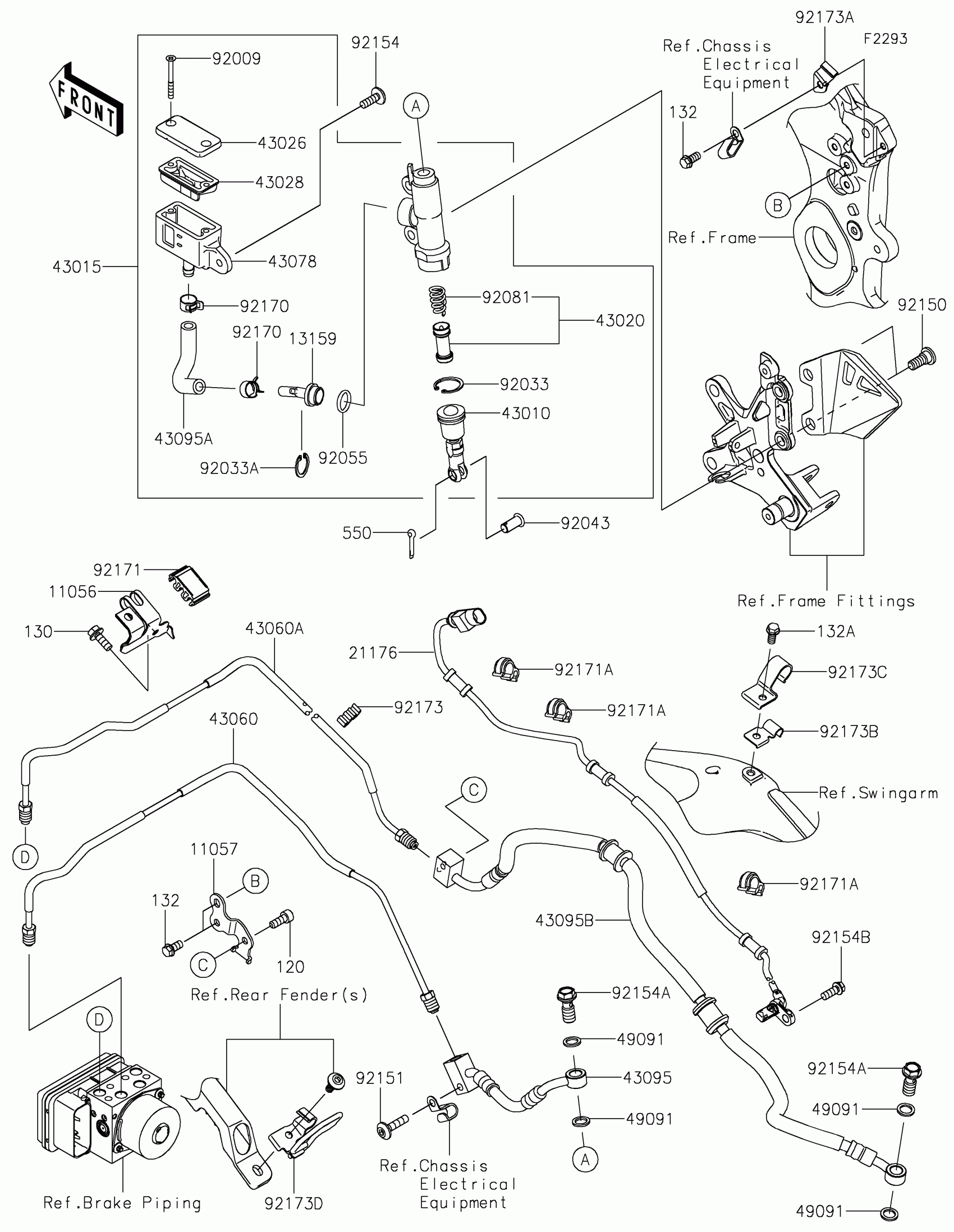

Kawasaki NINJA® ZX™-10RR Rear Master Cylinder Diagram

#

Description
Price

11056

BRACKET,RESERVOIR TANK CAP

11056-7024

$5.98

11056A

BRACKET,RESERVOIR TANK

11056-7786

$6.76

11056B

BRACKET,UPP CROSS

11056-7960

$16.50

120

BOLT-SOCKET,6X35

120CC0635

$2.32

130

BOLT-FLANGED,6X16

130BA0616

$1.20

13159

CONNECTOR

13159-0009

$9.09

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

21176

SENSOR,RR WHEEL

21176-0815

$108.38

43010

ROD-ASSY-BRAKE

43010-0016

$29.34

43015

CYLINDER-ASSY-MASTER,RR

43015-0640

$294.30

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43060

PIPE-BRAKE,RR M/CYLINDER-HU

43060-0095

$59.26

43060A

PIPE-BRAKE,ABS UNIT-SWA BKT

43060-0328

$59.26

43078

RESERVOIR

43078-0575

$91.81

43095

HOSE-BRAKE,RESERVOIR

43095-0585

$34.37

43095A

HOSE-BRAKE,SWA BKT-RR CAL.

43095-0928

$223.23

43095B

HOSE-BRAKE,RR M/CYL.-SWA BKT

43095-0936

$35.90

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92150

BOLT,SOCKET,8X25

92150-1837

$5.00

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92152

COLLAR,6.1X16X11.3

92152-2188

$15.55

92154

BOLT,BANJO,10X23

92154-1712

$3.94

92154A

BOLT,SOCKET,8X20

92154-1976

$2.75

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP

92171-0921

$4.65

92171A

CLAMP

92171-1731

$3.21

92173

CLAMP

92173-0181

$4.65

92173A

CLAMP,MAIN FRAME,RR

92173-1516

$7.33

92173B

CLAMP,SWING ARM,MID

92173-1517

$5.69

92173C

CLAMP,SWING ARM,RR

92173-1518

$21.12

92173D

CLAMP,SWING ARM,MID

92173-1520

$7.58

550

PIN-COTTER,2.0X15

550AA2015

$1.12
