Description

Price

11061

GASKET

11061-0107

$2.58

12046

SPROCKET,OIL PUMP,38T

12046-0094

$59.62

12053

GUIDE-CHAIN

12053-0181

$17.98

13107

SHAFT,LH

13107-0230

$30.68

13107A

SHAFT,RH

13107-0838

$54.09

132

BOLT-FLANGED-SMALL,6X12

132BC0612

$2.15

132A

BOLT-FLANGED-SMALL,6X25

132BC0625

$1.63

16097

FILTER-ASSY-OIL

16097-0011

$18.81

16130

VALVE-ASSY-RELIEF

16130-0005

$45.75

16142

COVER-PUMP,WATER

16142-0734

$60.35

16154

ROTOR-PUMP

16154-0708

$75.55

16160

BODY,WATER PUMP

16160-0226

$94.36

21053

SPROCKET-ASSY,PUMP DRIVE,29T

21053-0007

$116.30

32033

PIPE,OIL FILTER

32033-1535

$12.96

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

49063

SEAL-MECHANICAL

49063-1055

$20.06

49065

FILTER-OIL

49065-0042

$41.93

551

PIN-DOWEL,4X8

551A0408

$0.78

59256

IMPELLER

59256-0011

$30.64

92002

BOLT,6X22

92002-1154

$4.69

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,11.2X15X1

92022-311

$3.92

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92042A

PIN,DOWEL,4X13.8

92042-030

$3.92

92049

SEAL-OIL

92049-0778

$28.98

92055

RING-O,WATER PUMP

92055-0208

$9.17

92055A

RING-O,OIL FILTER

92055-1503

$9.51

92055B

RING-O,52.6X2.4

92055-1520

$4.69

92057

CHAIN,PUMP DRIVE

92057-0674

$28.88

92152

COLLAR

92152-0865

$19.64

92154

BOLT,FLANGED,6X22

92154-0387

$2.32

92154A

BOLT,FLANGED,6X40

92154-1890

$6.26

92154B

BOLT,6MM

92154-1891

$7.45

92200

WASHER

92200-1771

$6.52

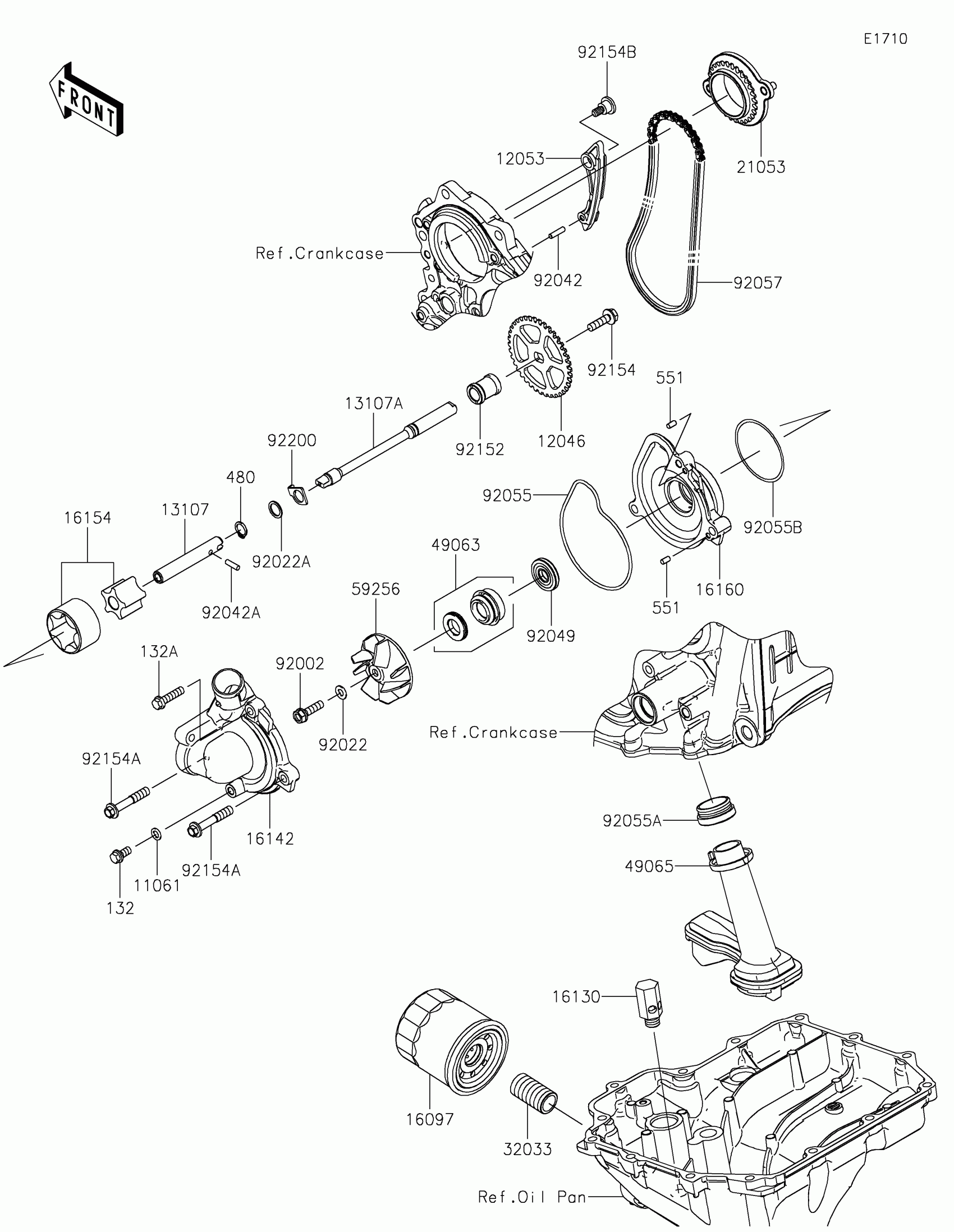

Kawasaki NINJA® ZX™-10RR Oil Pump/Oil Filter Diagram
