Description

Price

11056

BRACKET,TANK COVER,SIDE

11056-0242

$7.98

11056A

BRACKET,TANK COVER,FR

11056-7782

$10.46

14069

BREATHER,TANK

14069-0008

$6.89

14092

COVER,TANK,CNT,F.EBONY

14092-0786-45L

Unavailable

14093

COVER,TANK,LH,F.EBONY

14093-0680-45L

$214.89

14093A

COVER,TANK,RH,F.EBONY

14093-0681-45L

$214.89

27012

HOOK

27012-0170

$5.54

27012A

HOOK

27012-0171

$5.91

32052

BRACKET-TANK

32052-0154

$36.45

39085

PAD-TANK

39085-0054

$120.02

39156

PAD,40X180X1.0

39156-0745

$19.13

51049

CAP-TANK

51049-0721

$140.61

51089

TANK-COMP-FUEL,F.EBONY

51089-5421-45L

$1,314.20

53044

TRIM,L=157

53044-1276

$8.86

53044A

TRIM

53044-1296

$11.99

92005

FITTING

92005-0721

$9.09

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,RUBBER,6MM

92015-1692

$7.34

92015B

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER-PLAIN

92022-183

$3.92

92037

CLAMP,TUBE

92037-010

$3.92

92071

GROMMET

92071-1043

$5.46

92075

DAMPER

92075-1982

$4.39

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.8X10X60

92152-1182

$4.83

92152A

COLLAR,6.8X10X20.1

92152-2200

$6.24

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92153A

BOLT,FLANGED,6X28

92153-1580

$2.15

92153B

BOLT,SOCKET,5X16

92153-1616

$1.34

92154

BOLT,SOCKET,6X30

92154-0206

$2.75

92154A

BOLT,SOCKET,5X16

92154-0209

$2.75

92154B

BOLT,SOCKET,5X10

92154-0211

$2.12

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0365

$5.33

92161A

DAMPER,10X30X16

92161-0869

$4.41

92161B

DAMPER,10X90X10

92161-0963

$1.94

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X75

130BA0675

$1.63

702

TUBE-RUBBER,6X9X120

702A06120

$1.27

702A

TUBE-RUBBER,6X9X145

702A06145

$2.24

702B

TUBE-RUBBER,6X9X660

702A06660

$5.48

702C

TUBE-RUBBER,6X9X700

702A06700

$16.57

92161C

DAMPER

92161-1116

$9.19

92161D

DAMPER,FUEL TANK,RR

92161-1330

$6.18

92171

CLAMP

92171-0782

$3.90

92037

CLAMP,TUBE

92037-010

$3.92

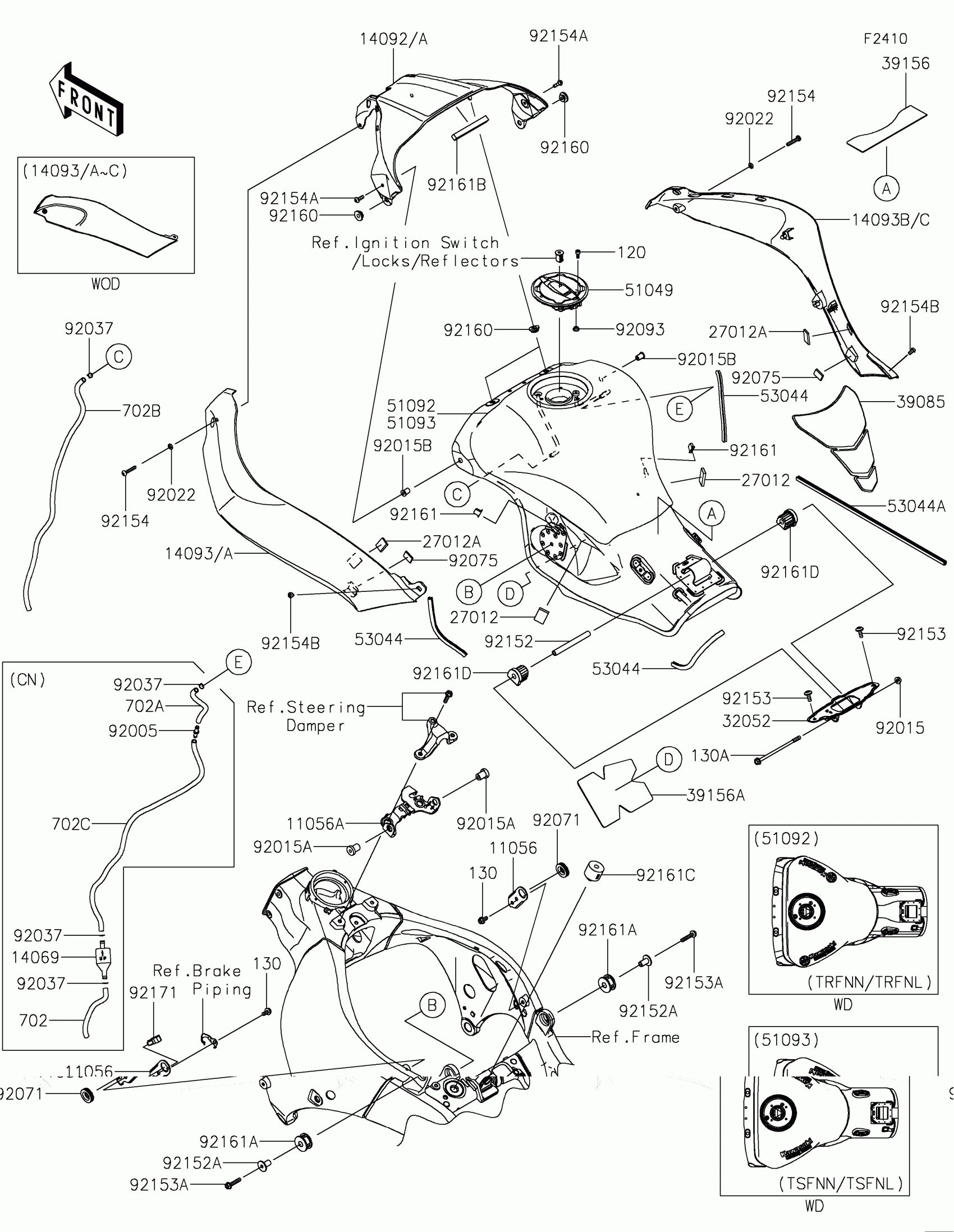

Kawasaki NINJA® ZX™-10RR Fuel Tank Diagram

BRACKET,TANK COVER,SIDE

BRACKET,TANK COVER,FR

BREATHER,TANK

COVER,TANK,CNT,F.EBONY

COVER,TANK,LH,F.EBONY

COVER,TANK,RH,F.EBONY

HOOK

HOOK

BRACKET-TANK

PAD-TANK

PAD,40X180X1.0

CAP-TANK

TANK-COMP-FUEL,F.EBONY

TRIM,L=157

TRIM

FITTING

NUT,FLANGED,6MM

NUT,RUBBER,6MM

NUT,WELL,5MM

WASHER-PLAIN

CLAMP,TUBE

GROMMET

DAMPER

SEAL,FUEL TANK CAP

COLLAR,6.8X10X60

COLLAR,6.8X10X20.1

BOLT,SOCKET,6X16

BOLT,FLANGED,6X28

BOLT,SOCKET,5X16

BOLT,SOCKET,6X30

BOLT,SOCKET,5X16

BOLT,SOCKET,5X10

DAMPER

DAMPER

DAMPER,10X30X16

DAMPER,10X90X10

BOLT-FLANGED,6X12

BOLT-FLANGED,6X75

TUBE-RUBBER,6X9X120

TUBE-RUBBER,6X9X145

TUBE-RUBBER,6X9X660

TUBE-RUBBER,6X9X700

DAMPER

DAMPER,FUEL TANK,RR

CLAMP

CLAMP,TUBE
