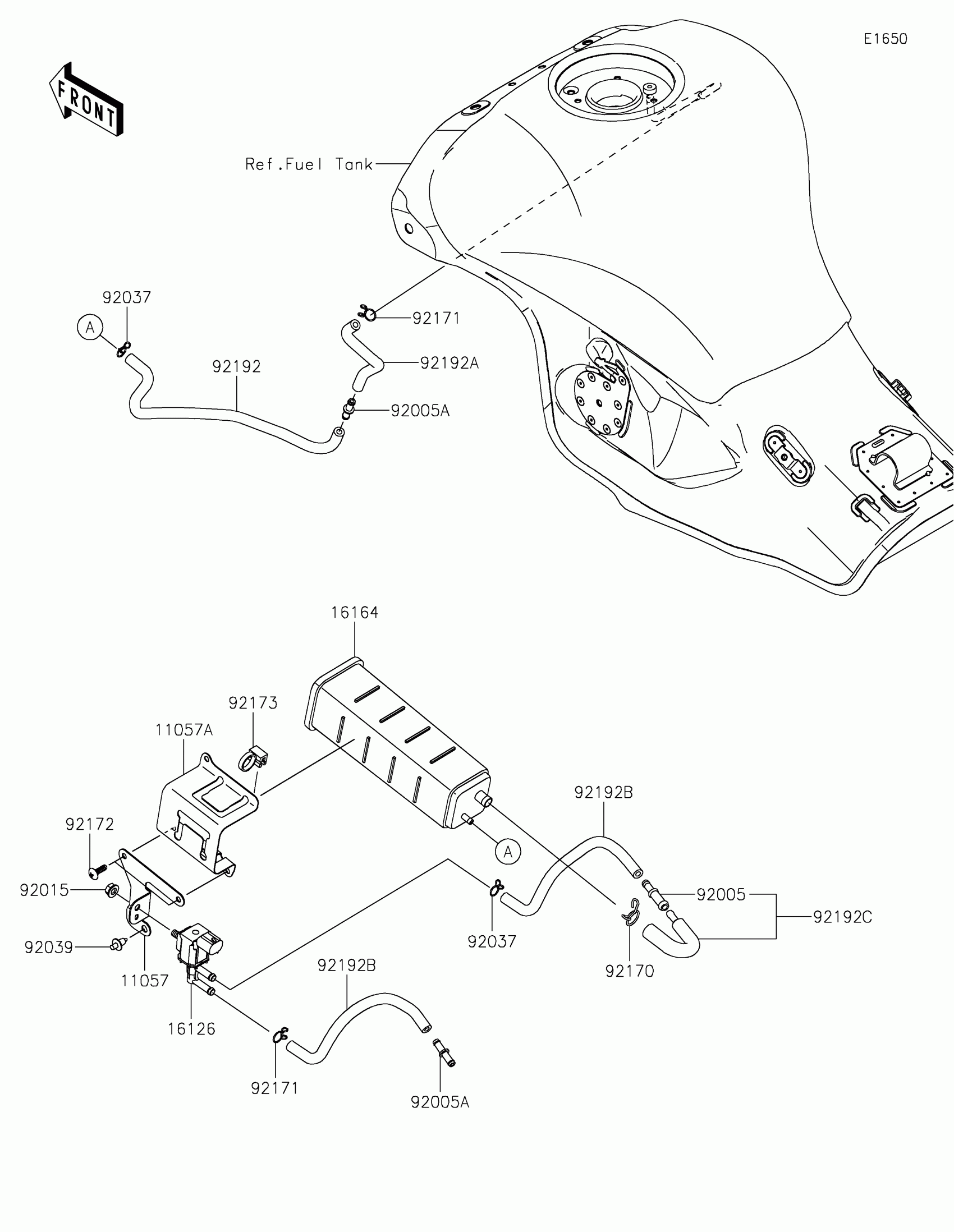

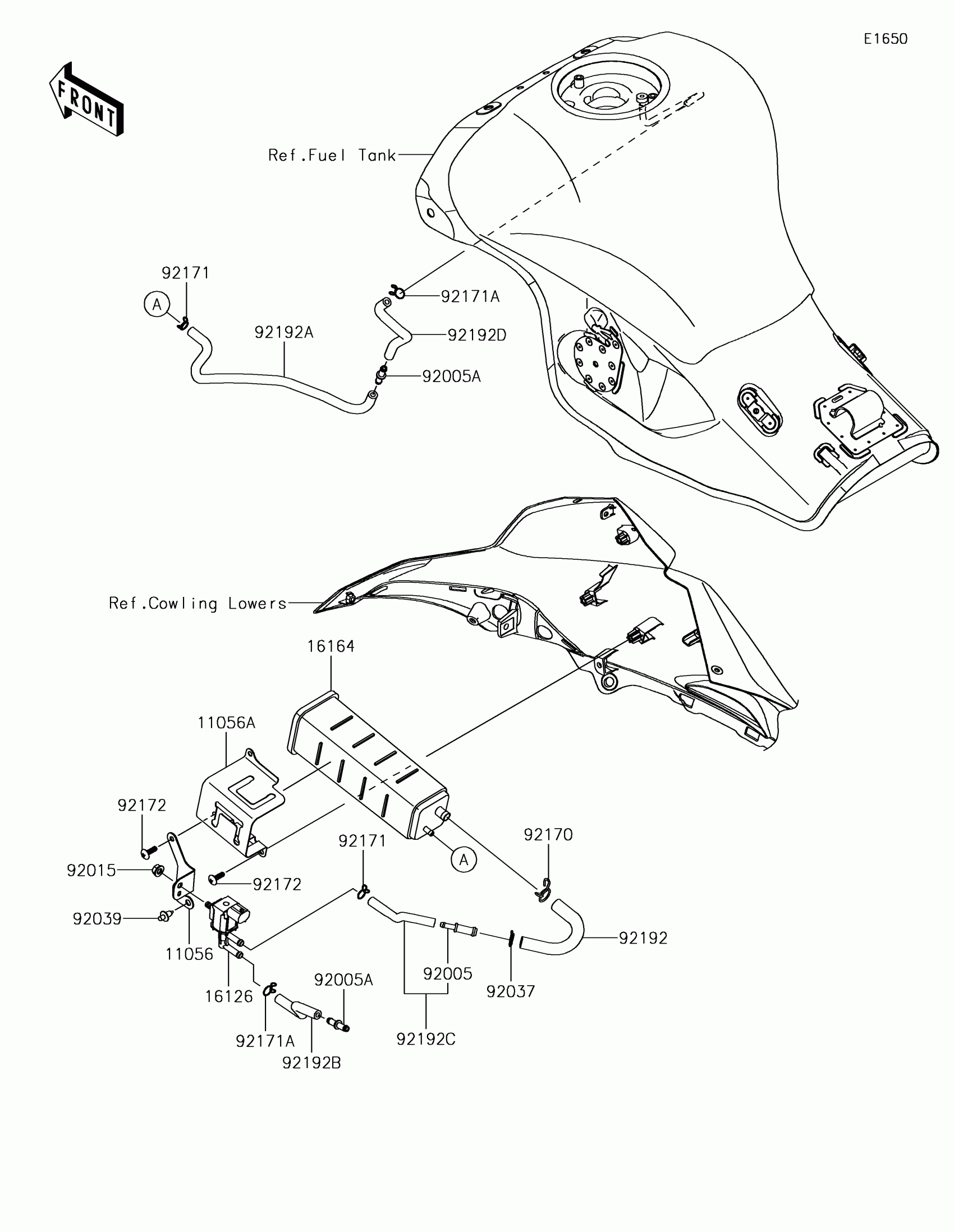

Kawasaki NINJA® ZX™-10RR Fuel Evaporative System(CA) Diagram

Description

Price

11056

BRACKET,SOLENOID VALVE

11056-7697

$5.42

11056A

BRACKET,CANISTER

11056-7751

$8.10

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0009

$137.47

92005

FITTING

92005-0032

$5.60

92005A

FITTING

92005-0721

$9.09

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,12.5MM

92037-1271

$2.79

92039

RIVET

92039-0068

$2.97

92170

CLAMP

92170-1695

$2.78

92171

CLAMP

92171-0576

$5.00

92171A

CLAMP

92171-0718

$2.15

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92192

TUBE,TUBE(VALVE)-CANISTER

92192-1502

$32.88

92192A

TUBE,CANISTER-FITTING(TANK)

92192-1503

$48.88

92192B

TUBE,VALVE-THROTTLE BODY

92192-1504

$26.62

92192C

TUBE,VALVE-TUBE(CANISTER)

92192-1505

$51.90

92192D

TUBE,FITTING(CANISTER)-TANK

92192-1506

$20.08
