2018 Kawasaki Ninja® ZX™-10RR Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2018 Kawasaki Ninja® ZX™-10RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

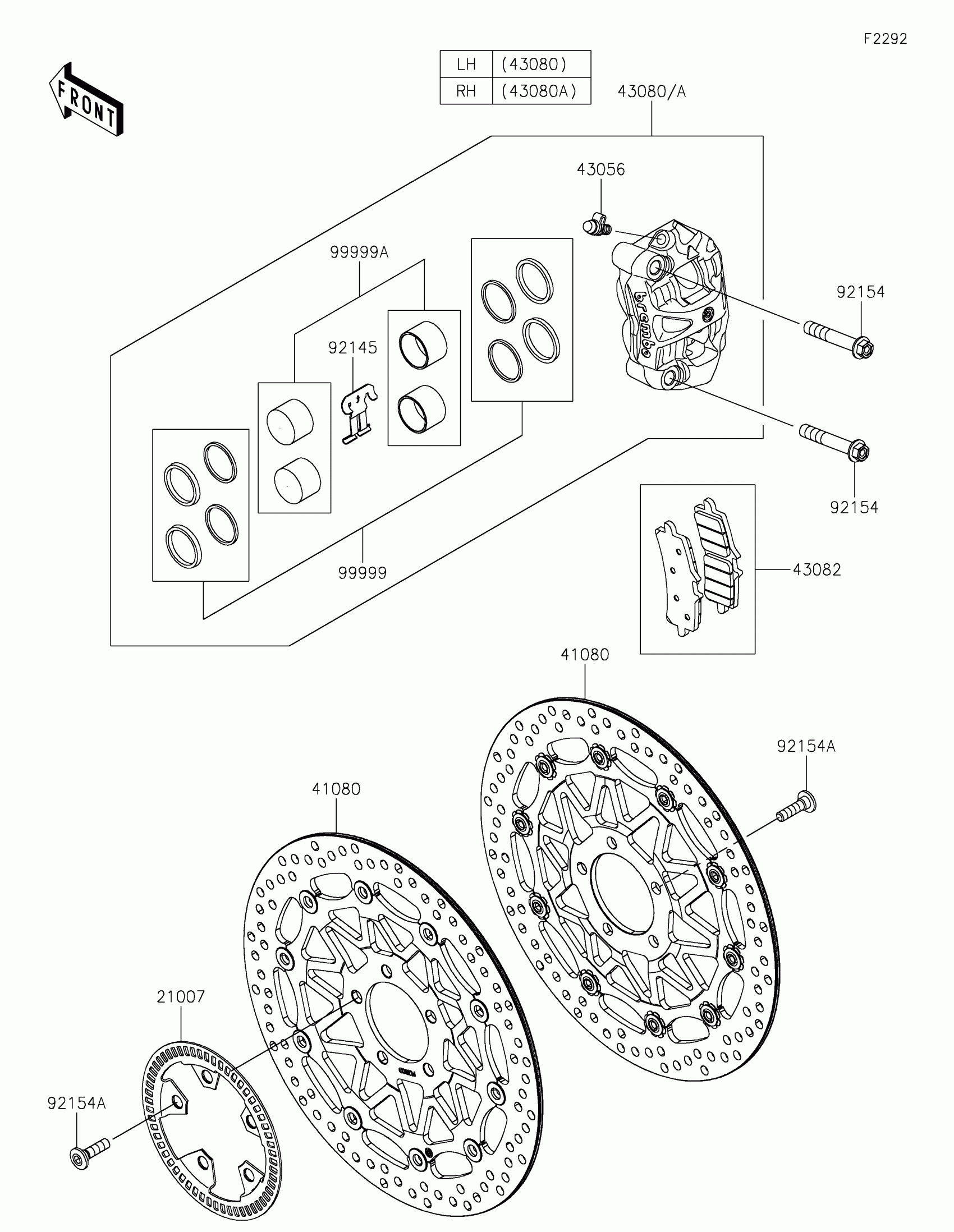

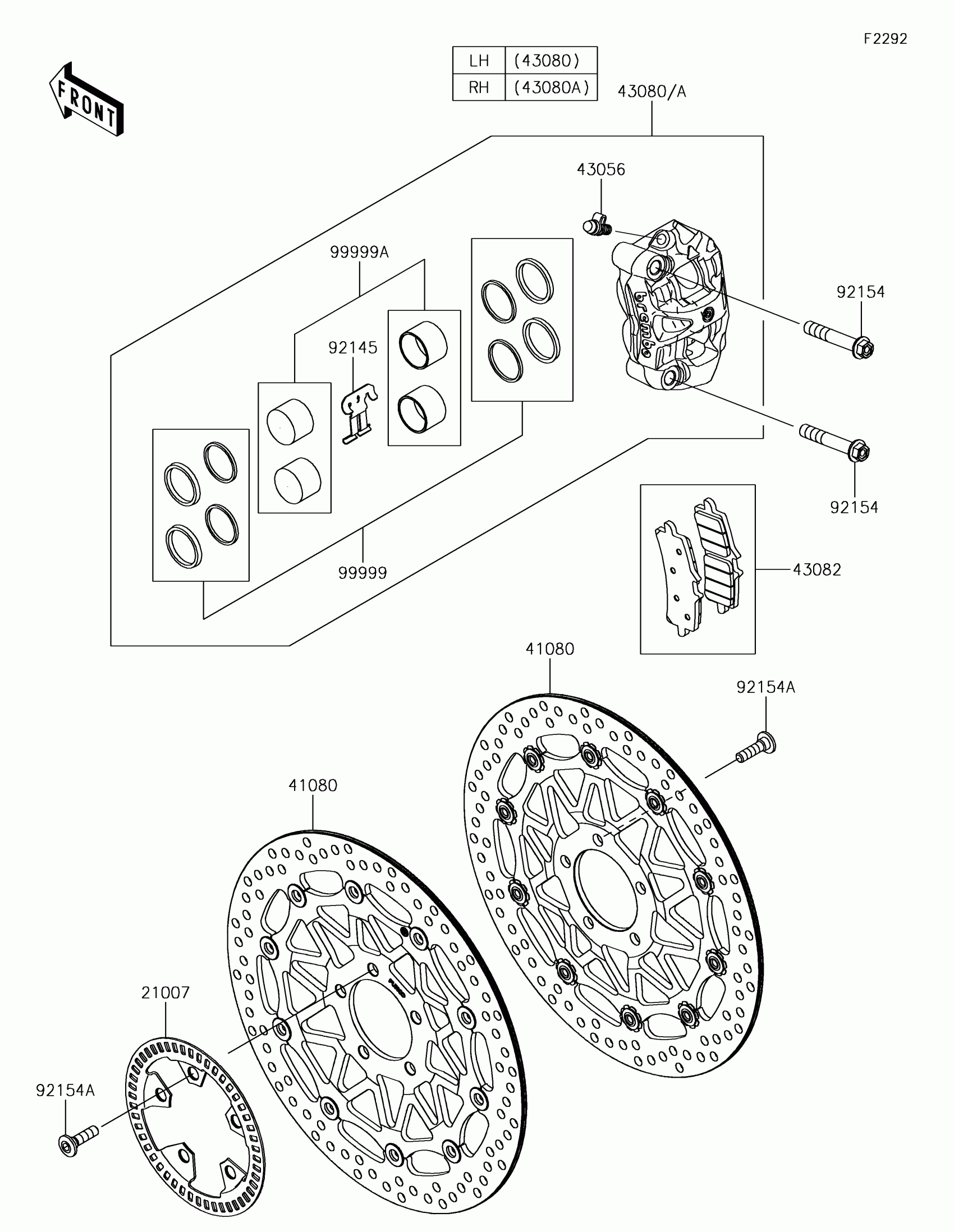

2018 Kawasaki Ninja® ZX™-10RR Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,FR WHEEL

21007-0651

1
Out of stock

41080

DISC,FR,BLACK+BLK

41080-0675-18U

1
Out of stock

43056

BREATHER-BRAKE

43056-0015

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH,GRAY

43080-0182-51J

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH,GRAY

43080-0183-51J

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0157

1
Out of stock

92145

SPRING

92145-1684

1
Out of stock

92154

BOLT,FLANGED,10X60

92154-1643

1
Out of stock

92154A

BOLT,SOCKET,8X30

92154-1865

1
Out of stock

99999

KIT.,DUST SEAL

99999-0557

1
Out of stock

99999A

KIT.,CALIPER PISTON

99999-0617

1
Out of stock
← Brake Piping Front Master Cylinder →
