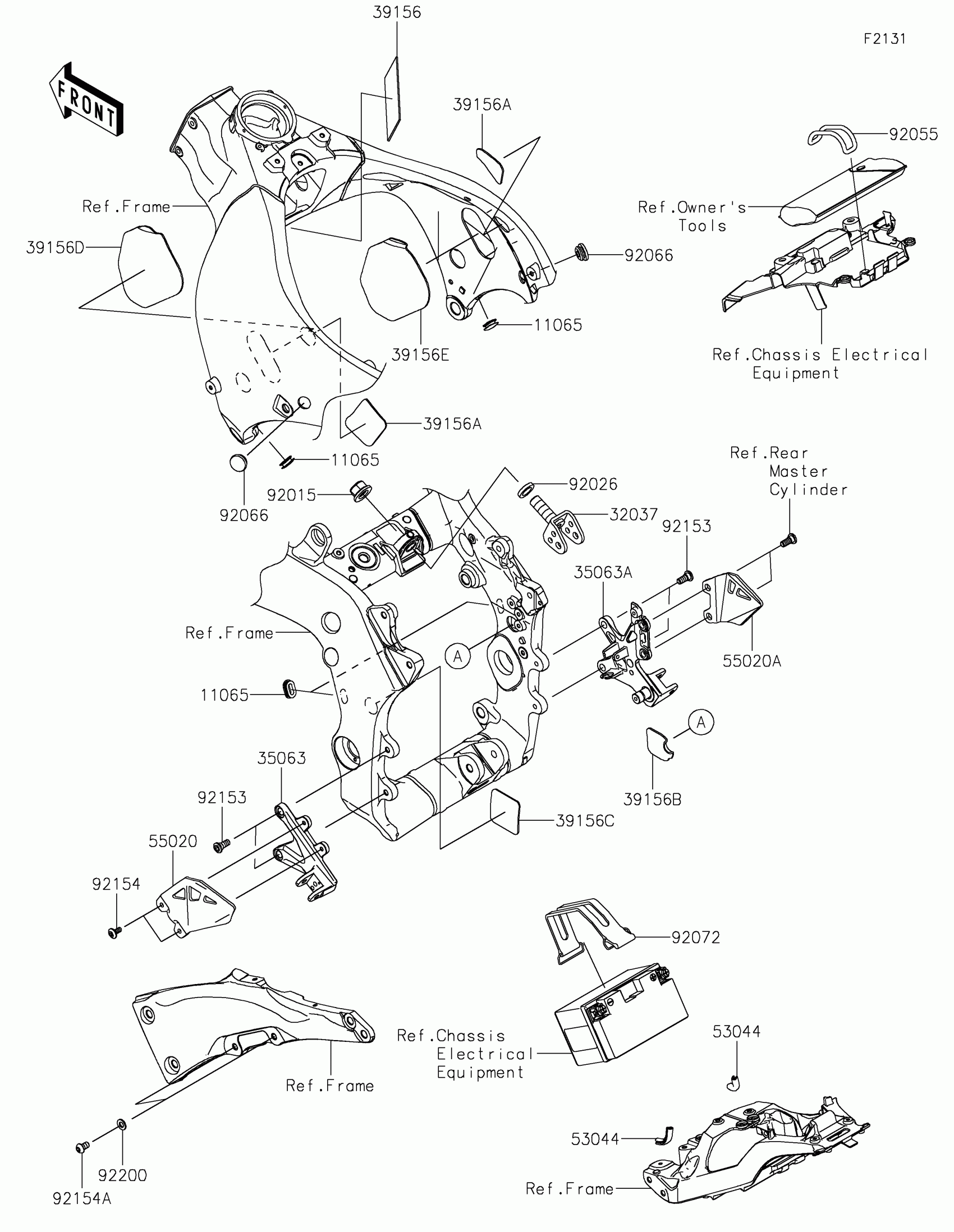

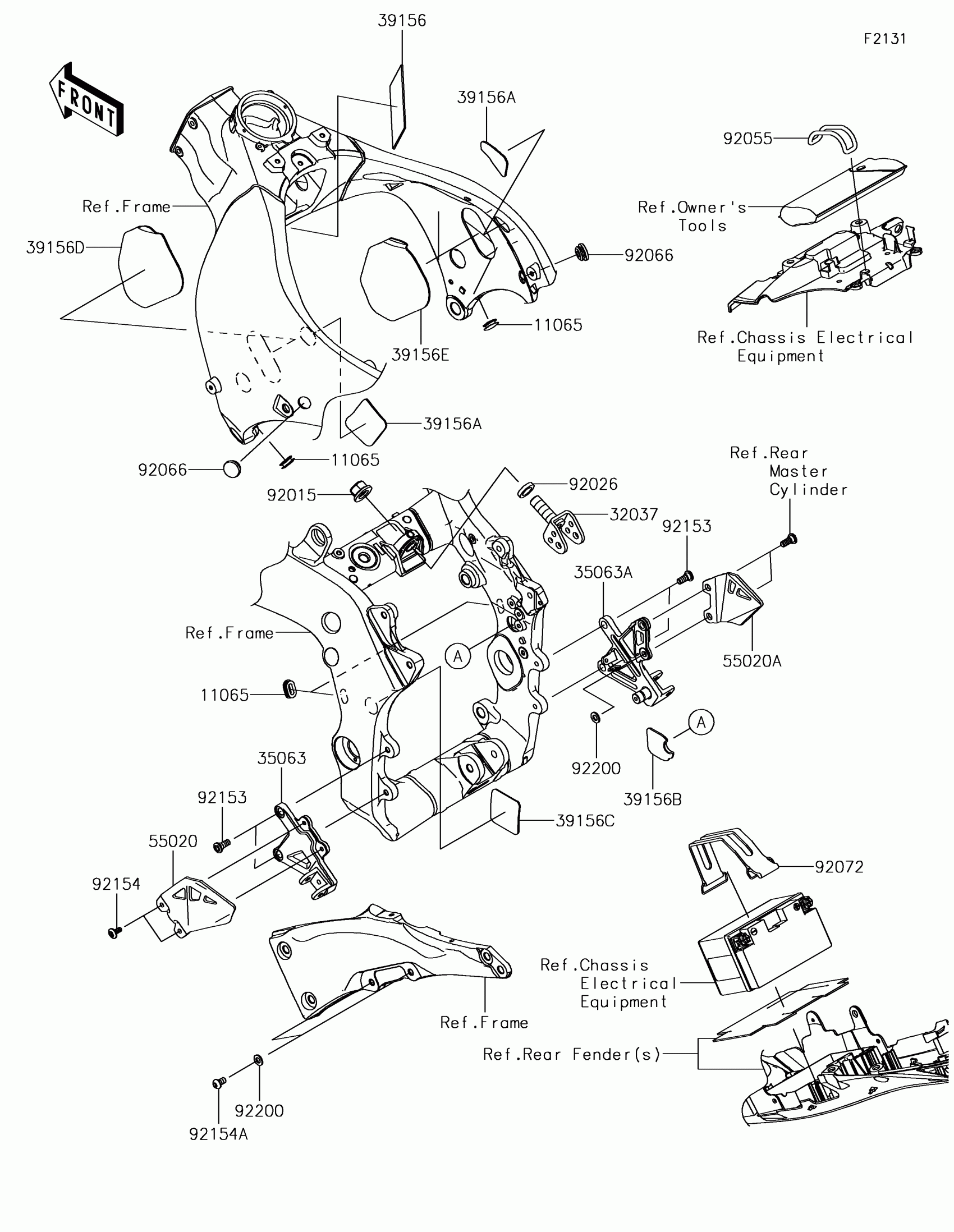

Kawasaki NINJA® ZX™-10RR Frame Fittings Diagram

Description

Price

11065

CAP

11065-0095

$3.87

32037

BRACKET-SHOCKABSORBER

32037-0149

$34.61

35063

STAY,FR STEP,LH,F.S.BLACK

35063-0697-18R

$119.92

35063A

STAY,FR STEP,RH,F.S.BLACK

35063-1331-18R

$134.05

39156

PAD,50X115X2

39156-0923

$3.32

39156A

PAD,55X55X2

39156-1961

$3.29

39156B

PAD,45X50.5X2

39156-1964

$2.71

39156C

PAD,55.5X55.5X0.5

39156-2116

$3.29

39156D

PAD,LH

39156-2213

$8.90

39156E

PAD,RH

39156-2214

$8.90

55020

GUARD,FR STEP,LH

55020-0569

$39.24

55020A

GUARD,FR STEP,RH

55020-1944

$43.92

92015

NUT,FLANGED,16MM

92015-1316

$24.01

92026

SPACER,16.5X26X5.2

92026-0813

$7.58

92055

RING-O,54.6X5.7

92055-0881

$3.65

92066

PLUG,17MM

92066-1320

$4.82

92072

BAND,L=168

92072-1306

$13.75

92153

BOLT,SOCKET,8X20

92153-1621

$2.15

92154

BOLT,SOCKET,6X14

92154-1735

$2.26

92154A

BOLT,SOCKET,8X14

92154-2651

$2.46

92200

WASHER,8.4X16X1.6

92200-0807

$4.41
