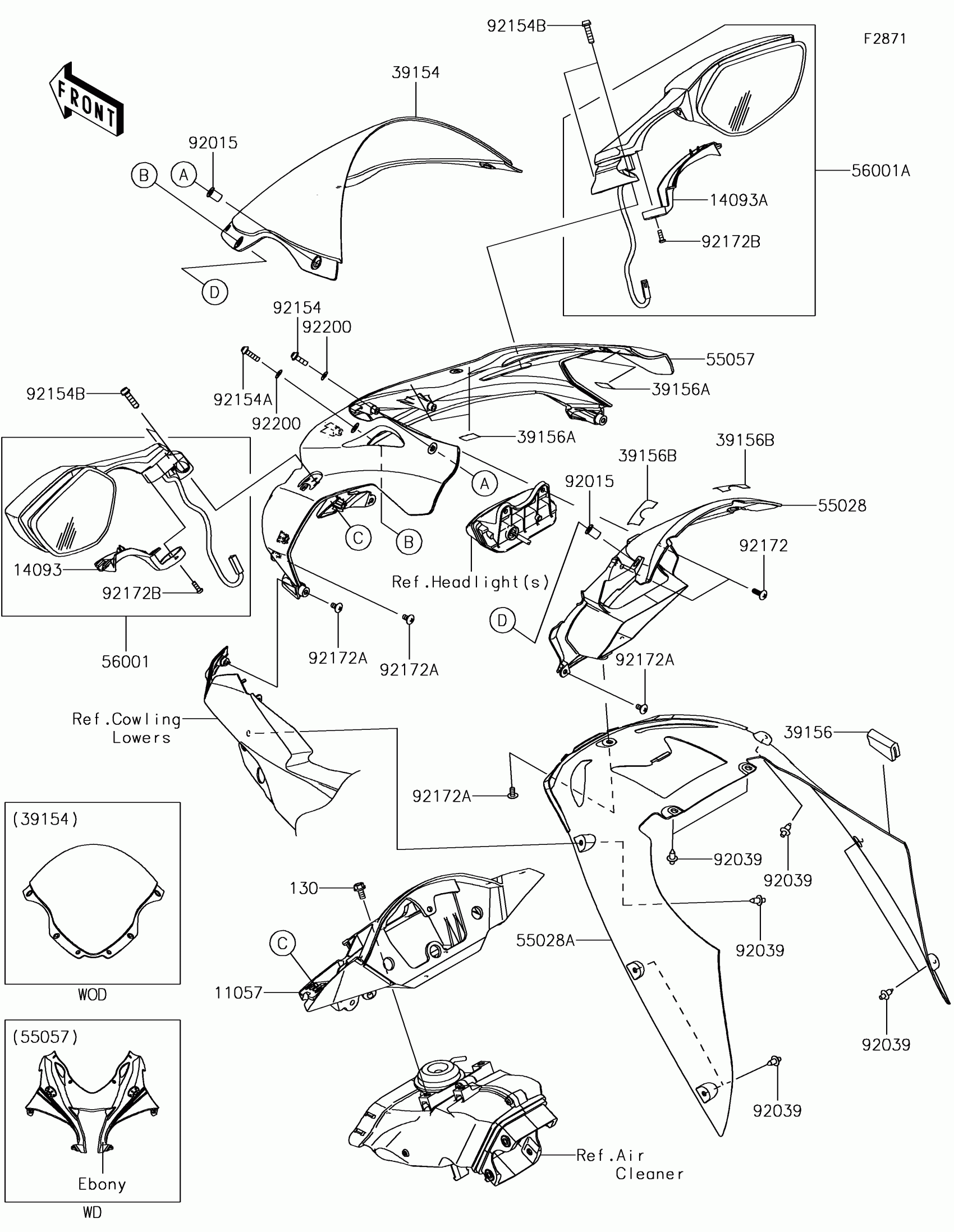

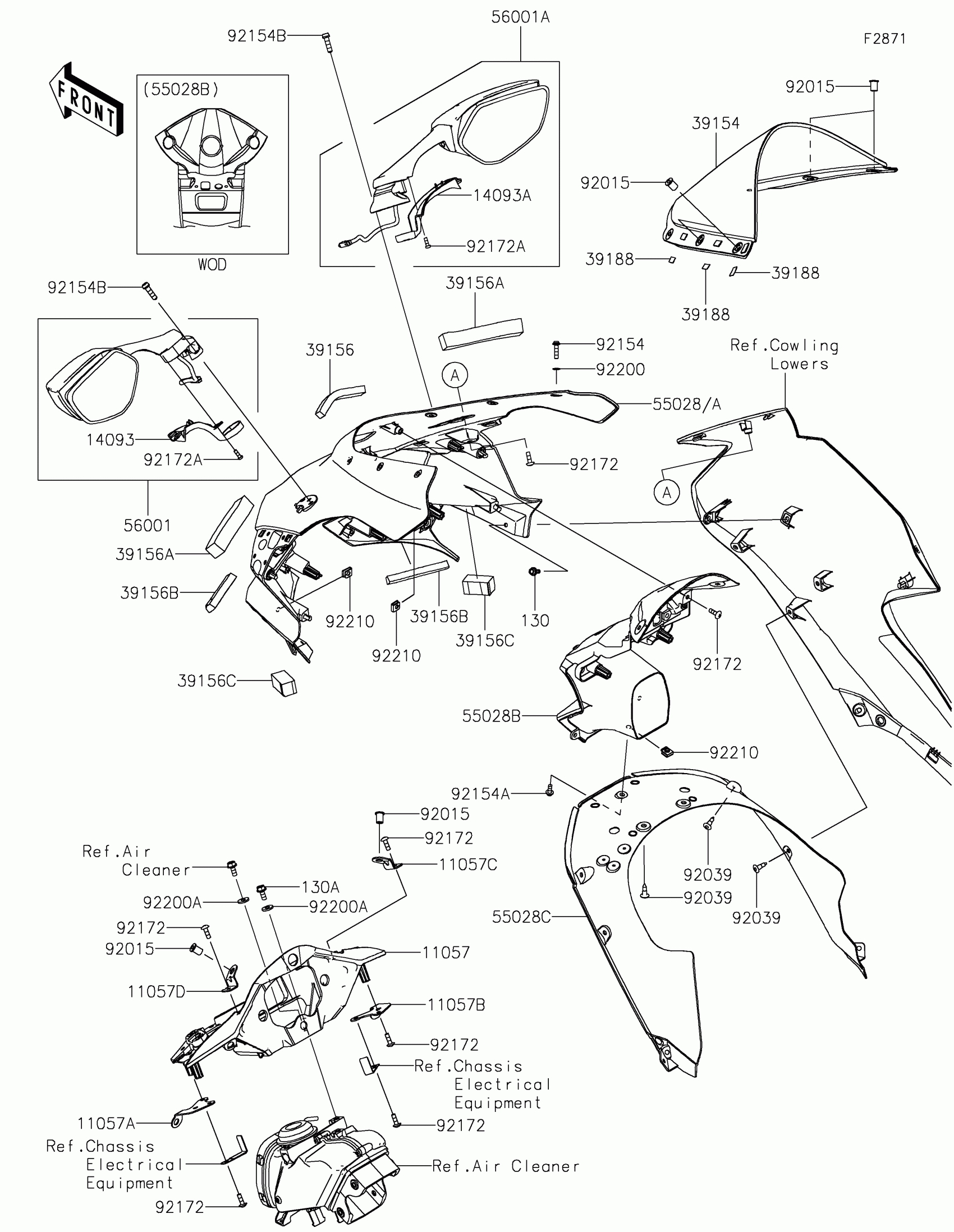

Kawasaki NINJA® ZX™-10RR Cowling Diagram

Description

Price

11057

BRACKET,METER

11057-0072

$99.63

130

BOLT-FLANGED,6X12

130BA0612

$1.72

14093

COVER,MIRROR,LH

14093-0343

$12.18

14093A

COVER,MIRROR,RH

14093-0344

$12.18

39154

WINDSHIELD

39154-0351

$181.62

39156

PAD

39156-0292

$3.35

39156A

PAD,15X20X0.2

39156-1784

$1.02

39156B

PAD

39156-2105

$2.71

55028

COWLING,RAM AIR

55028-0573

$48.51

55028A

COWLING,FR,CNT

55028-0578

$65.38

55057

COWLING,UPP,F.EBONY

55057-5104-45L

$825.41

56001

MIRROR-ASSY,LH

56001-0322

$331.31

56001A

MIRROR-ASSY,RH

56001-0323

$331.31

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0068

$2.97

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X20

92154-0210

$2.12

92154B

BOLT,SOCKET,6X22,MEC

92154-2736

$2.70

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92172A

SCREW,TAPPING,5X10

92172-0335

$2.15

92172B

SCREW-PAN-CROS,4X10

92172-0871

$0.63

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86
