Description

Price

11010

FILTER-ASSY-AIR

11010-0844

$492.96

11013

ELEMENT-AIR FILTER

11013-0757

$82.70

11061

GASKET

11061-0444

$4.06

11061A

GASKET

11061-0445

$5.60

12026

CHAMBER

12026-0009

$86.86

14037

SCREEN

14037-0107

$44.49

14073

DUCT,FUNNEL,#1

14073-0833

$13.30

14073A

DUCT,FUNNEL,#3

14073-0834

$13.30

14073B

DUCT,SUB FUNNEL

14073-0835

$15.89

14073C

DUCT

14073-0841

$19.99

16073

INSULATOR

16073-0129

$6.00

16126

VALVE,AIR SWITCHING

16126-0038

$189.89

16126A

VALVE

16126-0057

$14.62

16172

ACTUATOR

16172-0023

$131.40

39045

DUCT-ASSY,RAM

39045-0041

$239.31

39156

PAD

39156-1988

$3.72

49033

NOZZLE-INJECTION

49033-0027

$132.97

49056

PIPE-INJECTION

49056-0032

$16.76

49116

VALVE-ASSY

49116-0031

$81.40

92005

FITTING

92005-0125

$11.34

92037

CLAMP,TUBE

92037-147

$7.34

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92066

PLUG,DRAIN

92066-1211

$8.51

92093

SEAL

92093-0175

$1.93

92093A

SEAL

92093-0176

$3.62

92093B

SEAL

92093-0177

$17.74

92093C

SEAL

92093-0178

$0.81

92093D

SEAL,ELEMENT

92093-0686

$7.52

92093E

SEAL,CASE

92093-0693

$10.62

92152

COLLAR

92152-2197

$5.23

92153

BOLT,FLANGED,5MM

92153-0361

$4.18

92154

BOLT,SOCKET,6X30

92154-0435

$1.63

92154A

BOLT,FLANGED,BUTTON,6X18

92154-1882

$2.26

92160

DAMPER

92160-1162

$5.00

92161

DAMPER

92161-1844

$9.76

92161A

DAMPER

92161-1845

$3.32

92161B

DAMPER

92161-1846

$9.25

92170

CLAMP

92170-1060

$8.10

92171

CLAMP

92171-0391

$4.15

92172

SCREW,TAPPING,5X20

92172-0009

$2.80

130

BOLT-FLANGED,6X12

130BA0612

$1.72

670

O RING,8MM

670E1508

$1.82

92172A

SCREW,TAPPING,5X16

92172-0482

$1.19

92172B

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP

92173-0222

$26.90

92192

TUBE,12X17.6X38

92192-0887

$16.21

92192A

TUBE,BREATHER

92192-0889

$13.37

92192B

TUBE,4X8X250

92192-0892

$3.63

92192C

TUBE

92192-1119

$5.06

92192D

TUBE,AIR CLEANER-ASV

92192-1619

$14.51

92192E

TUBE,10X13X420

92192-1644

$10.62

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

92210

NUT,FLANGED,6MM

92210-0368

$1.34

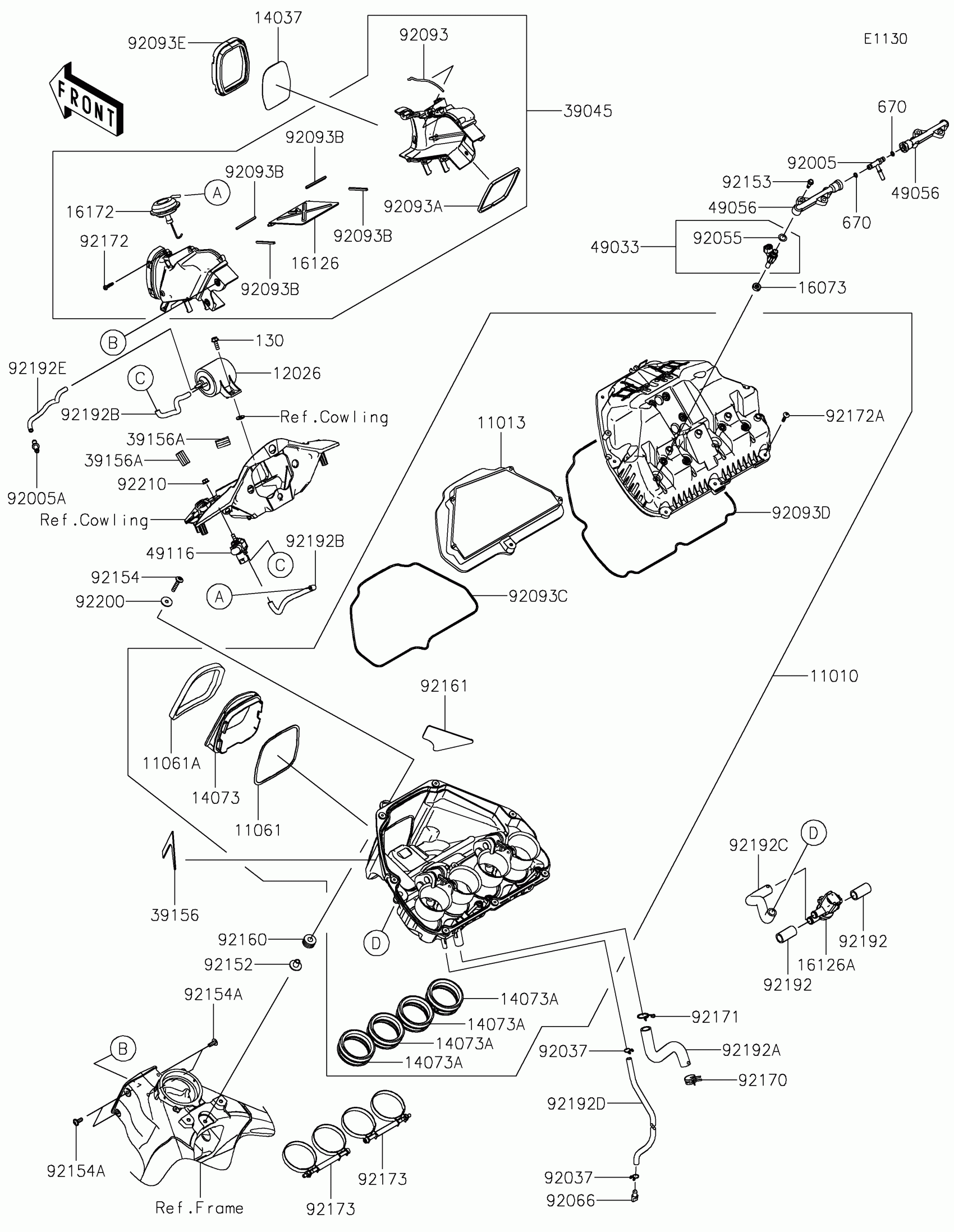

Kawasaki NINJA® ZX™-10RR Air Cleaner Diagram

FILTER-ASSY-AIR

ELEMENT-AIR FILTER

GASKET

GASKET

CHAMBER

SCREEN

DUCT,FUNNEL,#1

DUCT,FUNNEL,#3

DUCT,SUB FUNNEL

DUCT

INSULATOR

VALVE,AIR SWITCHING

VALVE

ACTUATOR

DUCT-ASSY,RAM

PAD

NOZZLE-INJECTION

PIPE-INJECTION

VALVE-ASSY

FITTING

CLAMP,TUBE

RING-O,INJECTION NOZZLE

PLUG,DRAIN

SEAL

SEAL

SEAL

SEAL

SEAL,ELEMENT

SEAL,CASE

COLLAR

BOLT,FLANGED,5MM

BOLT,SOCKET,6X30

BOLT,FLANGED,BUTTON,6X18

DAMPER

DAMPER

DAMPER

DAMPER

CLAMP

CLAMP

SCREW,TAPPING,5X20

BOLT-FLANGED,6X12

O RING,8MM

SCREW,TAPPING,5X16

SCREW,TAPPING,5X20

CLAMP

TUBE,12X17.6X38

TUBE,BREATHER

TUBE,4X8X250

TUBE

TUBE,AIR CLEANER-ASV

TUBE,10X13X420

WASHER,6.5X22X1.6

NUT,FLANGED,6MM
