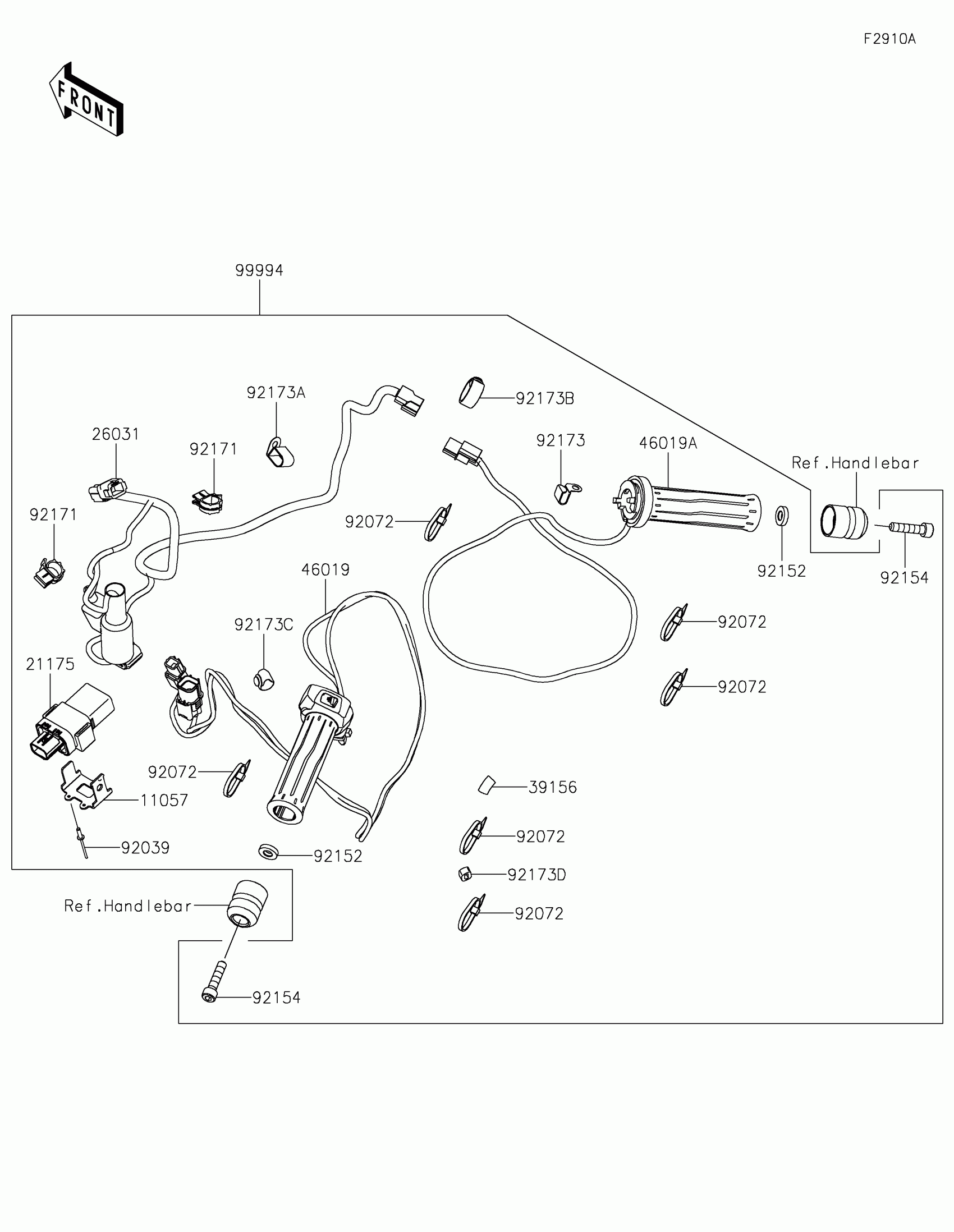

Kawasaki NINJA® ZX™-10RR Accessory(Grip Heater) Diagram

Description

Price

11057

BRACKET

11057-4258

$6.52

21175

CONTROL UNIT-ELECTRONIC,GH

21175-1329

$124.80

26031

HARNESS

26031-2884

$111.78

39156

PAD,15X25X1

39156-2119

$1.84

46019

GRIP-ASSY,HEATER,LH

46019-0105

$147.18

46019A

GRIP-ASSY,HEATER,RH

46019-0106

$232.33

92039

RIVET

92039-1271

$0.64

92072

BAND,202X3.6

92072-0782

$1.97

92152

COLLAR

92152-2663

$5.79

92154

BOLT,SOCKET,8X35

92154-4053

$2.80

92171

CLAMP,EDGE CLIP

92171-1722

$8.05

92173

CLAMP

92173-0082

$6.22

92173A

CLAMP,68MM

92173-1009

$4.72

92173B

CLAMP

92173-2194

$1.83

92173C

CLAMP

92173-2199

$1.48

92173D

CLAMP

92173-2437

$2.32

99994

GRIP HEATER

99994-1486

$464.57
