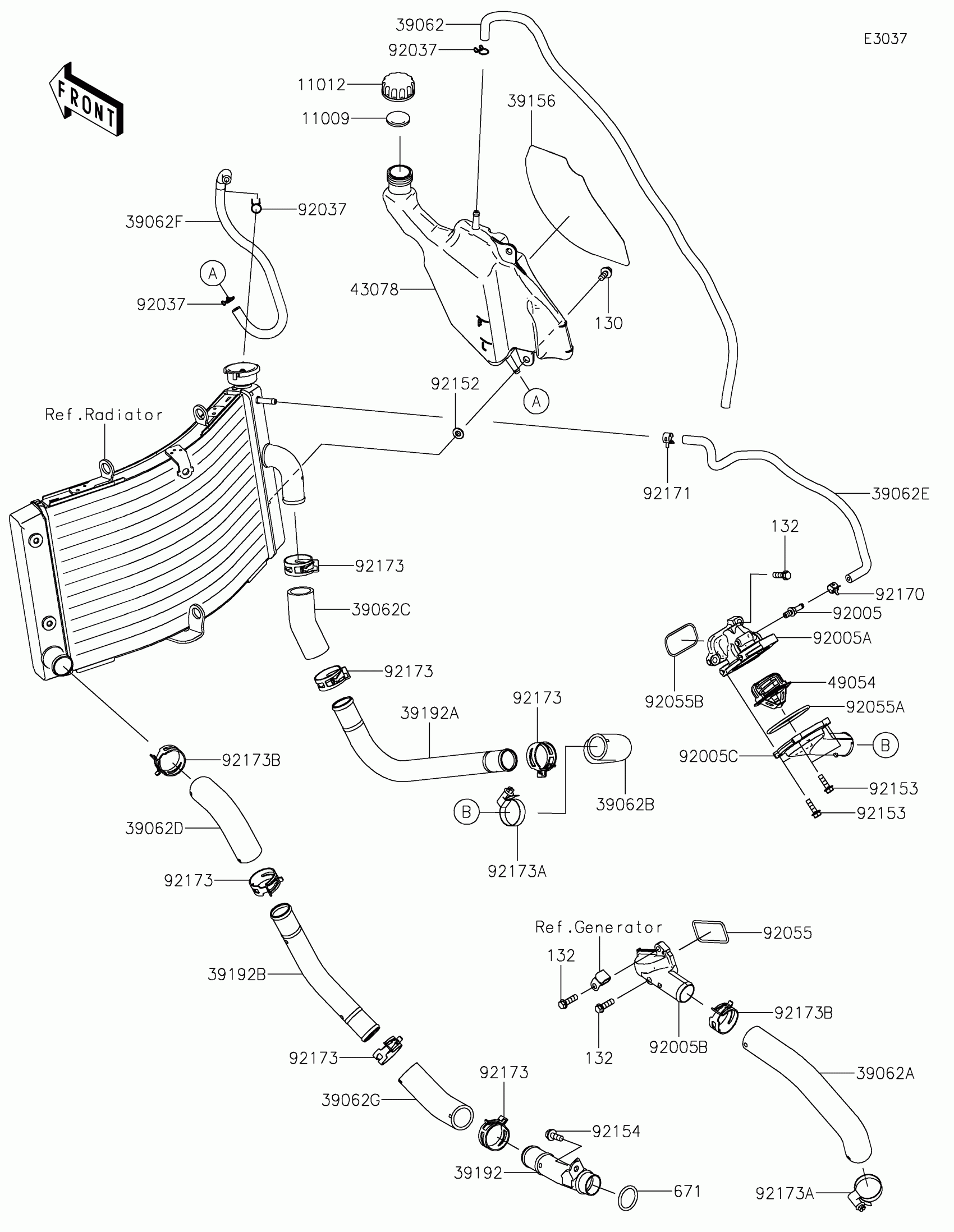

Kawasaki Ninja® ZX™-10R Water Pipe Diagram

#

Description
Price

130

BOLT-FLANGED,5X18

130L0518

$1.90

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

39062

HOSE-COOLING,RAD-HEAD

39062-0078

$9.58

39062A

HOSE-COOLING,W.PUMP-CYLINDER

39062-0100

$35.62

39062B

HOSE-COOLING,RAD.-PIPE

39062-0101

$11.40

39062C

HOSE-COOLING,PIPE-W.PUMP

39062-0103

$35.25

39062D

HOSE-COOLING,OVER FLOW

39062-0107

$11.42

39062E

HOSE-COOLING,THERMOSTAT-RAD.

39062-0109

$65.47

39062F

HOSE-COOLING,L=767MM

39062-1825

$10.99

39192

PIPE-WATER

39192-0029

$35.39

43078

RESERVOIR

43078-0026

$75.42

49044

PUMP-WATER

49044-0005

$331.19

49054

THERMOSTAT

49054-1067

Unavailable

92005

FITTING

92005-0010

$11.38

92005A

FITTING,THERMO CASE

92005-0039

$50.40

92005B

FITTING

92005-0056

$10.21

92005C

FITTING,THERMO CAP

92005-1275

$79.65

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,TUBE

92037-1941

$6.22

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

$3.73

92055A

RING-O

92055-0069

$3.72

92055B

RING-O,THERMOSTAT CAP

92055-1699

$9.07

92075

DAMPER

92075-1634

$4.69

92143

COLLAR

92143-1962

$6.22

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92153

BOLT,UPSET-WP,6X22

92153-0640

$2.12

92153A

BOLT,FLANGED-SMALL,6X20

92153-1589

$1.97

92170

CLAMP

92170-1493

$5.00

92171

CLAMP

92171-0179

$8.20

92171A

CLAMP

92171-0180

$13.37

92171B

CLAMP

92171-0719

$2.15
