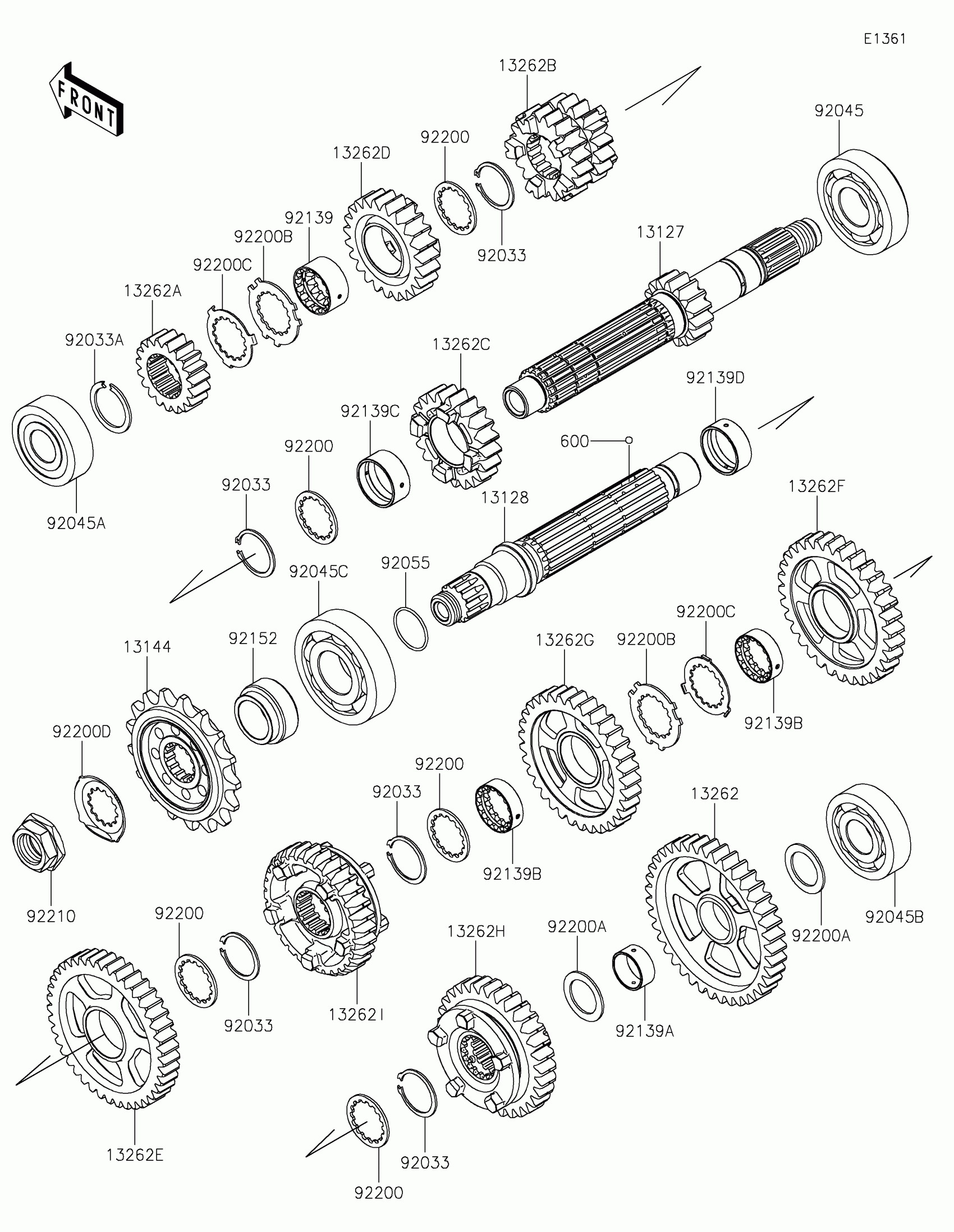

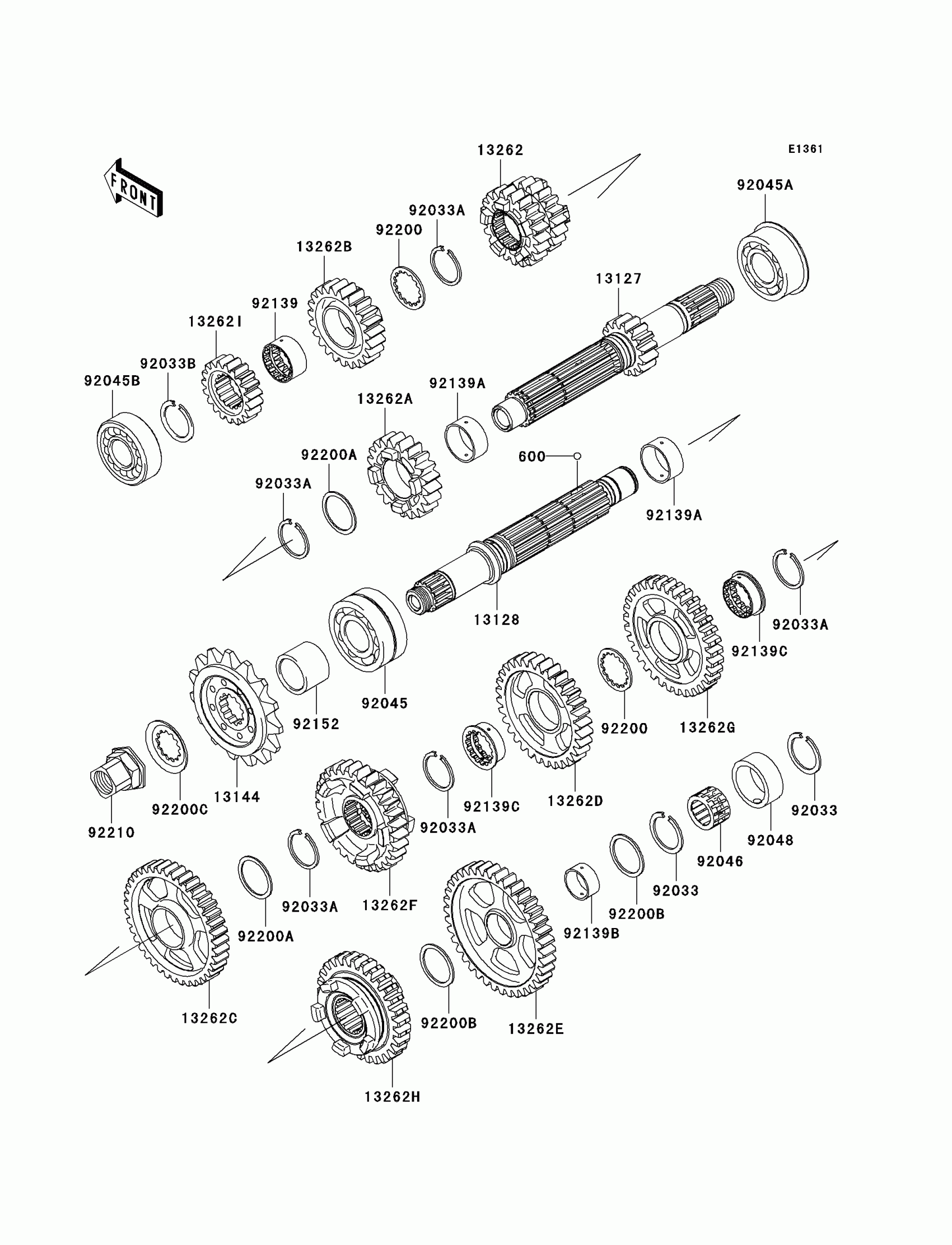

Kawasaki Ninja® ZX™-10R Transmission Diagram

#

Description
Price

600

BALL-STEEL,5/32

600A0500

$0.81

13127

SHAFT-TRANSMISSION INPUT,15T

13127-0020

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT,13T

13128-0015

Unavailable

13144

SPROCKET-OUTPUT,17T,#525

13144-0004

$51.53

13262

GEAR,INPUT 3RD&4TH,19T&21T

13262-0134

Unavailable

13262A

GEAR,INPUT 5TH,21T

13262-0135

$138.88

13262B

GEAR,INPUT 6TH,23T

13262-0136

$190.63

13262C

GEAR,OUTPUT 2ND,39T

13262-0152

Unavailable

13262D

GEAR,OUTPUT 4TH,32T

13262-0166

$190.63

13262E

GEAR,OUTPUT LOW,38T

13262-0170

$190.63

13262F

GEAR,OUTPUT 6TH,30T

13262-0171

$190.63

13262G

GEAR,OUTPUT 3RD,33T

13262-0182

Unavailable

13262H

GEAR,OUTPUT 5TH,29T

13262-0183

Unavailable

13262I

GEAR,INPUT 2ND,19T

13262-0185

Unavailable

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92033B

RING-SNAP,T=1.5

92033-1249

$4.96

92045

BEARING-BALL,DAC2557NSSH

92045-0003

$105.03

92045A

BEARING-BALL,5205N6RSH2CS6

92045-0014

$75.24

92045B

BEARING-BALL,DG2152SH2C3

92045-0015

$44.51

92046

BEARING-NEEDLE

92046-1291

$19.95

92048

RACE,30X38X15

92048-1053

$28.71

92139

BUSHING,GEAR,6TH IN

92139-0036

$26.39

92139A

BUSHING,GEAR,5TH IN&2ND OUT

92139-0037

$14.85

92139B

BUSHING,GEAR,LOW OUT

92139-0038

$13.24

92139C

BUSHING,GEAR,3RD&4TH OUT

92139-0066

$20.38

92152

COLLAR

92152-0153

$18.59

92200

WASHER,28.3X34.0X1.6

92200-0050

$4.15

92200A

WASHER,28.1X34.0X1.2

92200-0051

$4.15

92200B

WASHER,22.1X32.0X1.4

92200-0138

$3.73

92200C

WASHER

92200-1065

$6.63

92210

NUT,SPROCKET

92210-1098

$34.11
