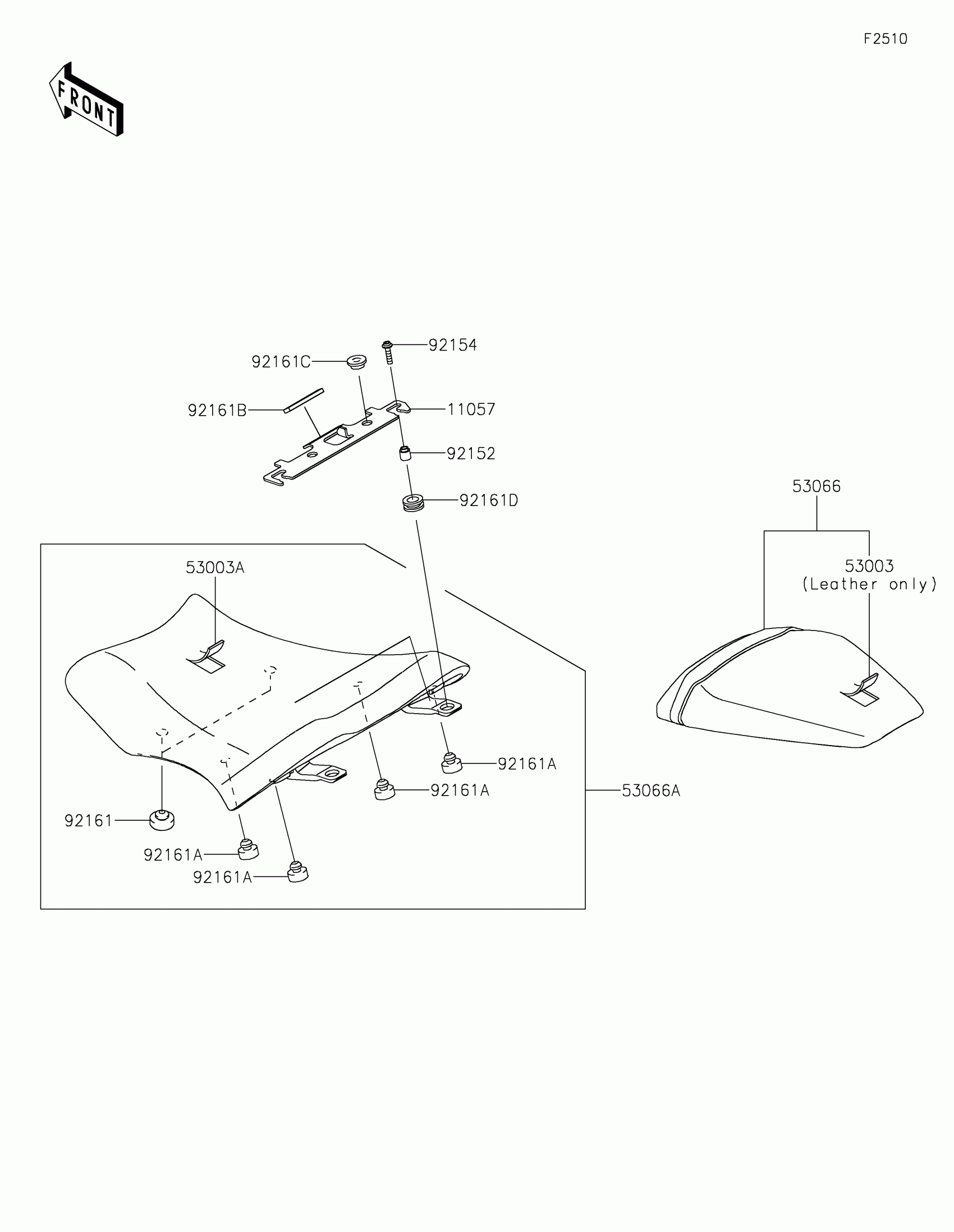

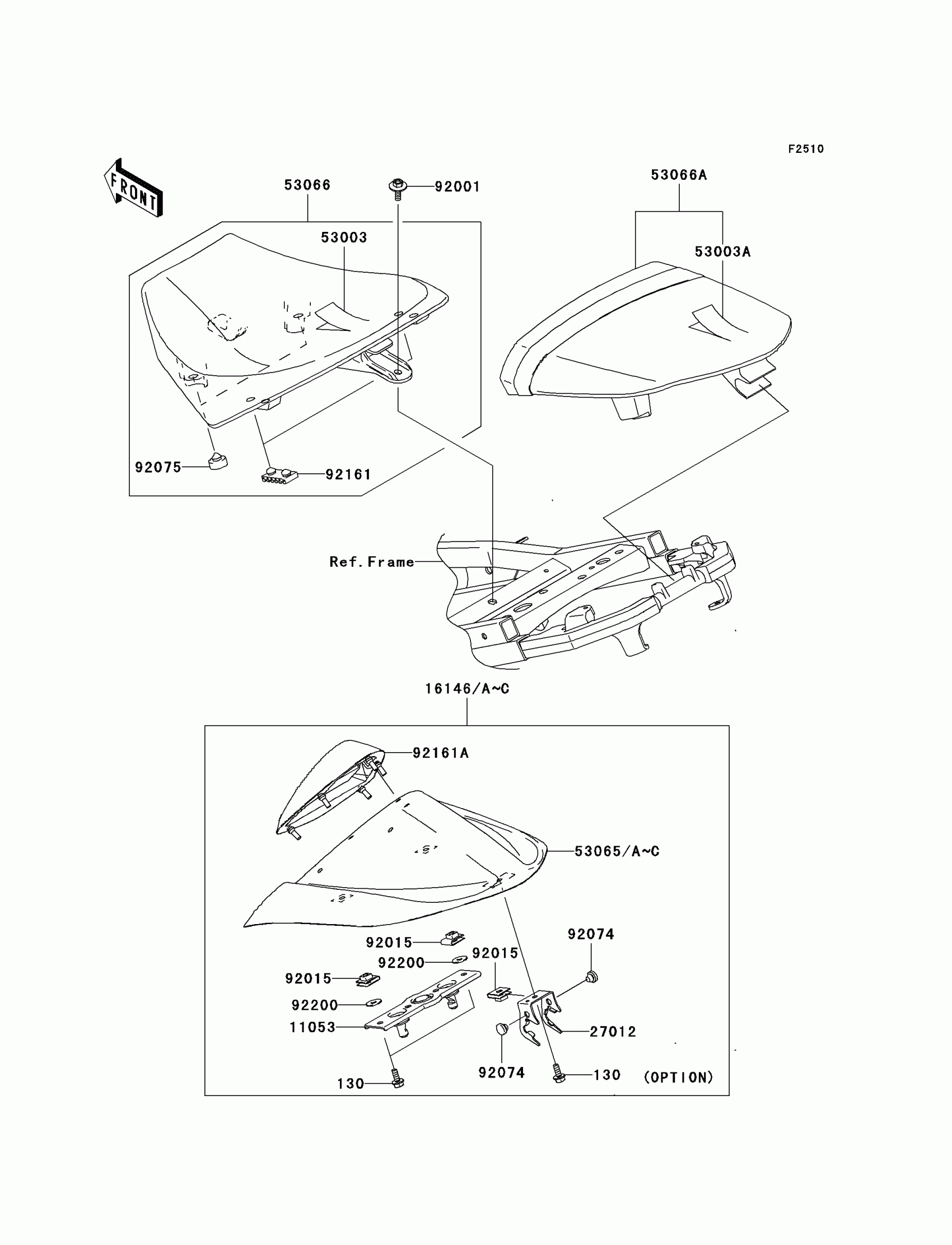

Kawasaki Ninja® ZX™-10R Seat Diagram

BOLT-FLANGED,6X16

130L0616

Unavailable

BRACKET,SEAT LOCK STRIKER

11053-0386

$30.68

COVER-ASSY,SINGLE SEAT,BLUE

16146-0022-235

$31.02

COVER-ASSY,SINGLE SEAT,ORANGE

16146-0022-470

$26.73

COVER-ASSY,SINGLE SEAT,BLACK

16146-0022-660

$31.02

COVER-ASSY,SINGLE SEAT,GREEN

16146-0022-7F

$31.02

HOOK,SEAT COVER

27012-0047

$16.51

LEATHER,FRONT SEAT,BLACK

53003-0008-MA

$138.38

LEATHER,REAR SEAT,BLACK

53003-0009-MA

$151.97

COVER SEAT,C.T.BLUE

53065-0002-235

$188.45

COVER SEAT,P.B.ORANGE

53065-0002-470

$208.54

COVER SEAT,M.S.BLACK

53065-0002-660

$174.75

COVER SEAT,L.GREEN

53065-0002-7F

$208.54

SEAT-ASSY,FR,BLACK

53066-0046-MA

$337.23

SEAT-ASSY,RR,W/BAND,BLACK

53066-0047-MA

$245.16

BOLT,6X20

92001-1826

$2.99

NUT,CLAMP,6MM

92015-1531

$4.18

PLUG,7X2

92074-028

$3.81

DAMPER,10X20X8

92075-1927

$3.35

DAMPER,SEAT

92161-0149

Unavailable

DAMPER,SINGLE SEAT COVER

92161-0171

$56.77

WASHER

92200-0078

$1.54
