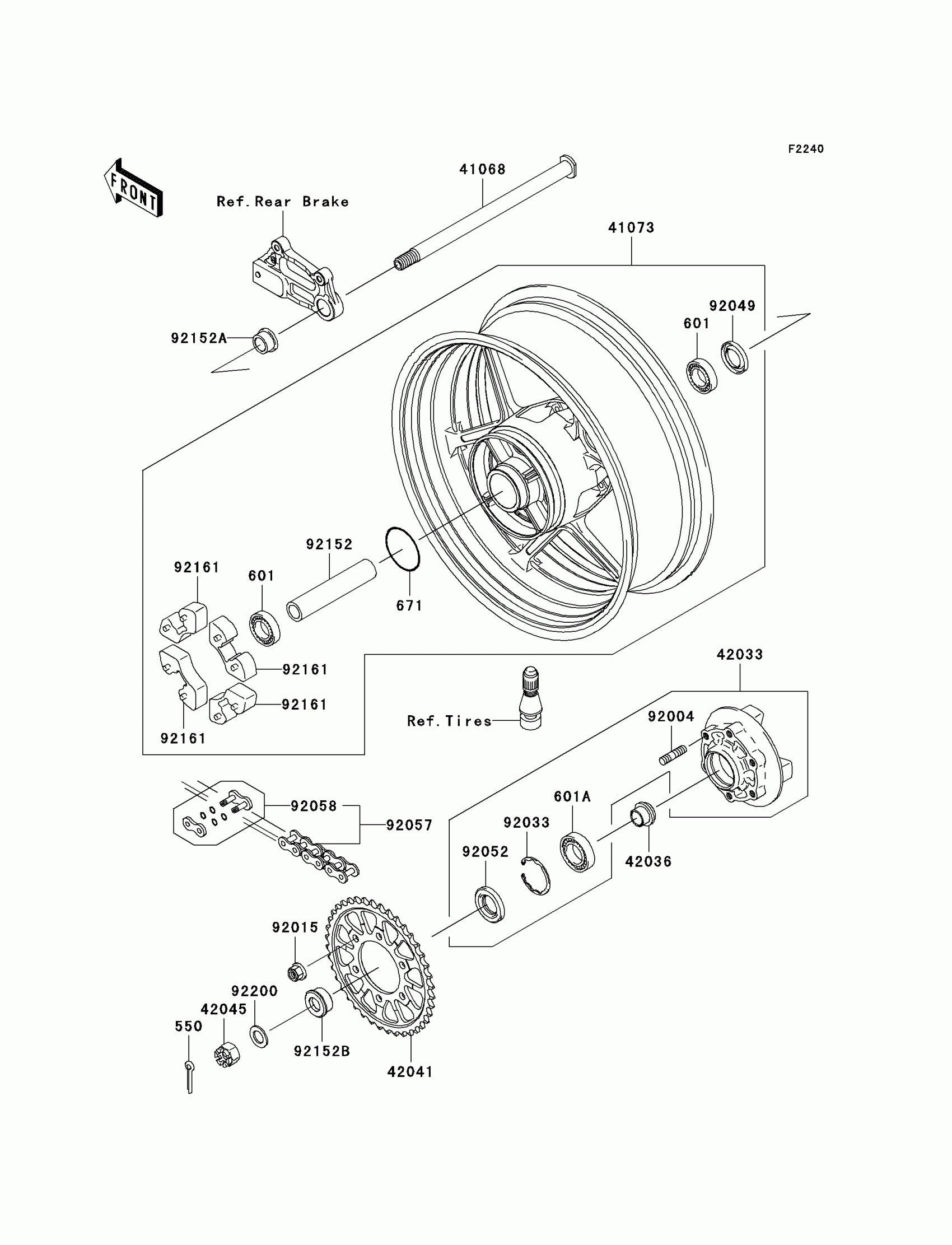

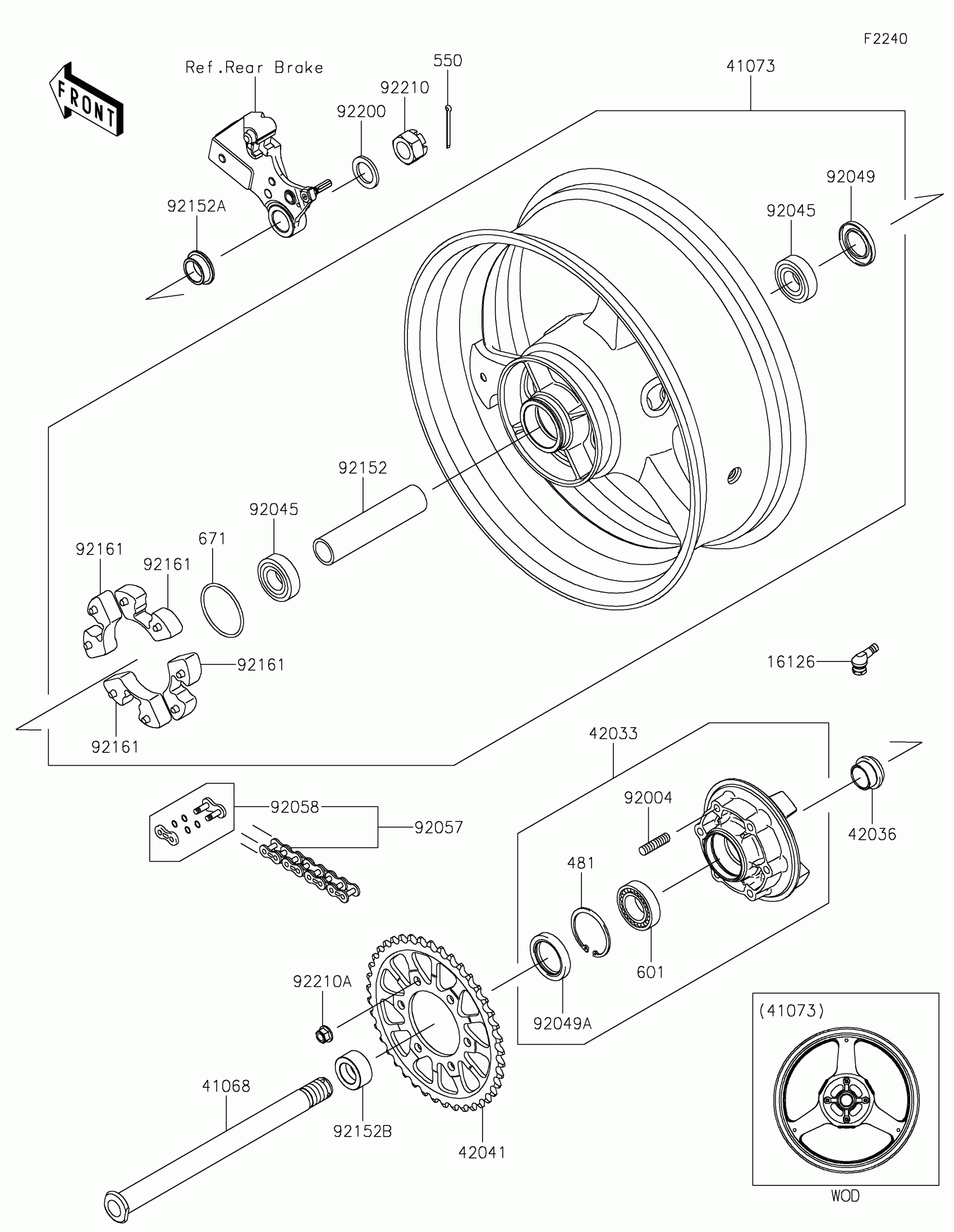

Kawasaki Ninja® ZX™-10R Rear Wheel/Chain Diagram

Description

Price

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,6204UUC3

601B6204UU

$26.51

601A

BEARING-BALL

601B6205UU

$26.20

671

O RING,60MM

671B2560

$5.13

41068

AXLE,RR

41068-0012

$112.64

41073

WHEEL-ASSY,RR,BLACK

41073-0013-R2

$1,108.90

42033

COUPLING-ASSY,RR HUB

42033-0003

$242.94

42036

SLEEVE,RR HUB,L=23

42036-1251

$21.23

42041

SPROCKET-HUB,39T

42041-0005

Unavailable

42045

NUT,CASTLE,18MM

42045-018

$7.01

92004

STUD,10X19

92004-1275

Unavailable

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92033

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL,BJN28475

92049-1056

$9.95

92052

SEAL-OIL,TWC35527

92052-006

Unavailable

92057

CHAIN,DRIVE,RK525MFOX110L

92057-0087

Unavailable

92058

JOINT-CHAIN,DRIVE

92058-0005

Unavailable

92152

COLLAR,RR HUB,L=144.5

92152-0088

$49.74

92152A

COLLAR,RR AXLE,RH,L=17

92152-0105

$19.31

92152B

COLLAR,RR AXLE,LH,L=18

92152-0206

Unavailable

92161

DAMPER,SHOCK,RR HUB

92161-0058

Unavailable

92200

WASHER,19X32X2.6

92200-1489

$1.35
