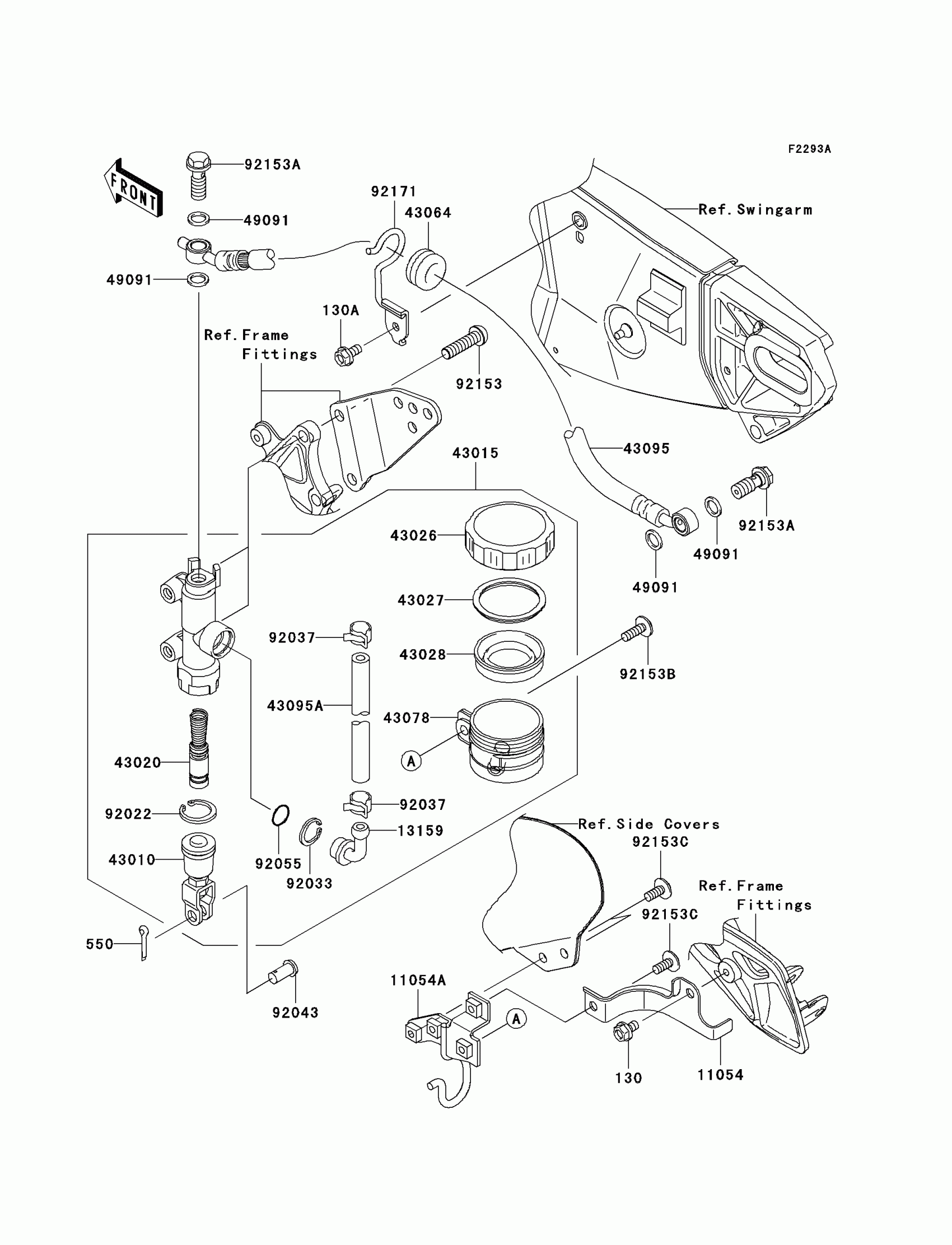

Kawasaki Ninja® ZX™-10R Rear Master Cylinder(D7F/D7FA) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130L0610

Unavailable

130A

BOLT-FLANGED,6X12

130L0612

Unavailable

550

PIN-COTTER,2.0X15

550AA2015

$0.90

11054

BRACKET,RESERVOIR TANK CAP

11054-0327

$17.14

11054A

BRACKET,RESERVOIR TANK CAP

11054-1254

$31.56

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE

43010-1062

$45.28

43015

CYLINDER-ASSY-MASTER,RR

43015-0088

$479.25

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43064

GROMMET,HOSE CLAMP

43064-007

$4.18

43078

RESERVOIR,RR MASTER CYLINDER

43078-1165

$30.87

43095

HOSE-BRAKE,RR

43095-0190

$97.13

43095A

HOSE-BRAKE,RR MASTER CYLINDER

43095-0304

Unavailable

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92043

PIN,8X17

92043-0104

$2.98

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92153

BOLT,SOCKET,8X30

92153-0393

$2.84

92153A

BOLT,OIL,L=23

92153-0627

$4.15

92153B

BOLT,6X18

92153-0816

$1.57

92153C

BOLT,SOCKET,6X14

92153-1612

$1.24

92171

CLAMP,HOSE

92171-0670

$11.49
