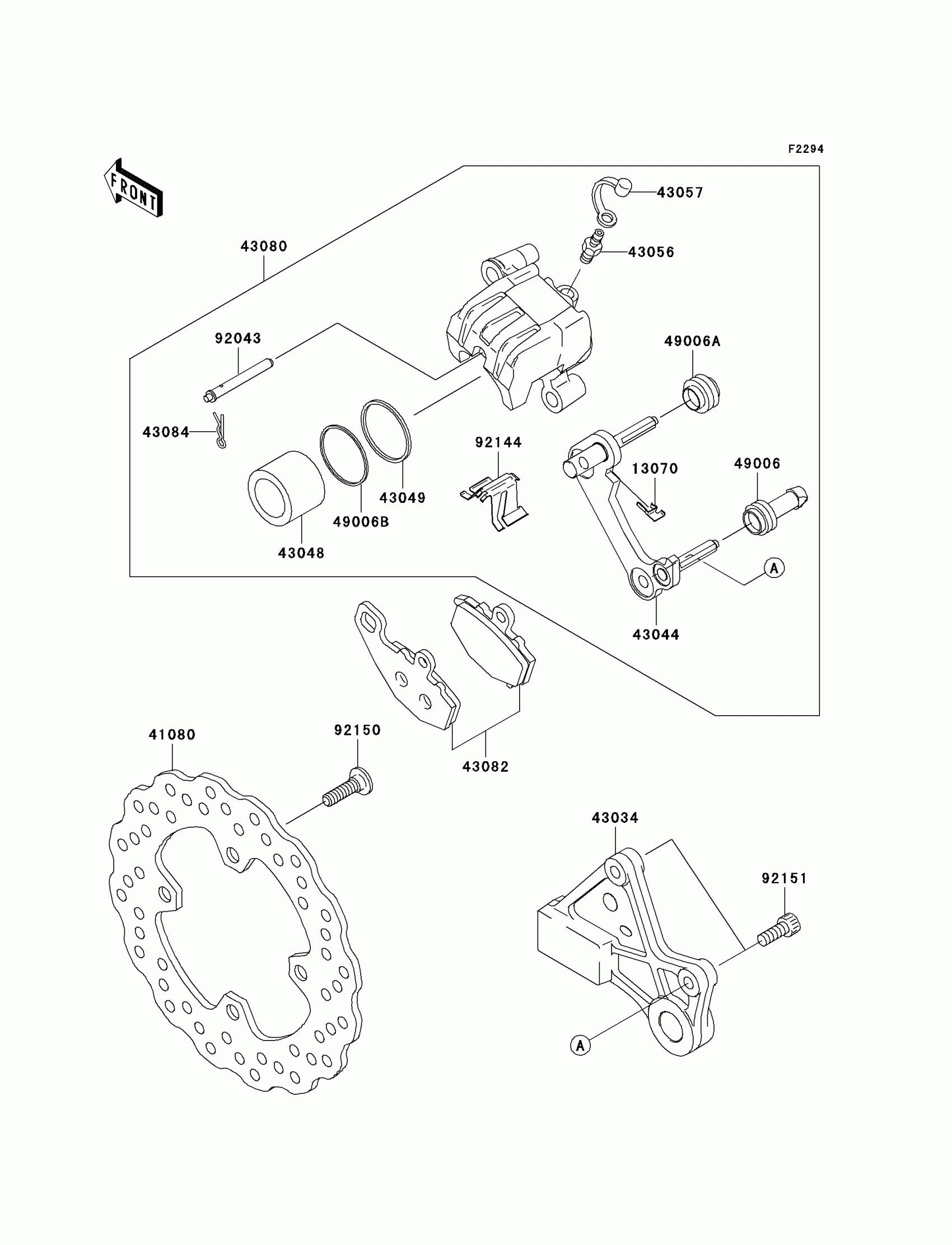

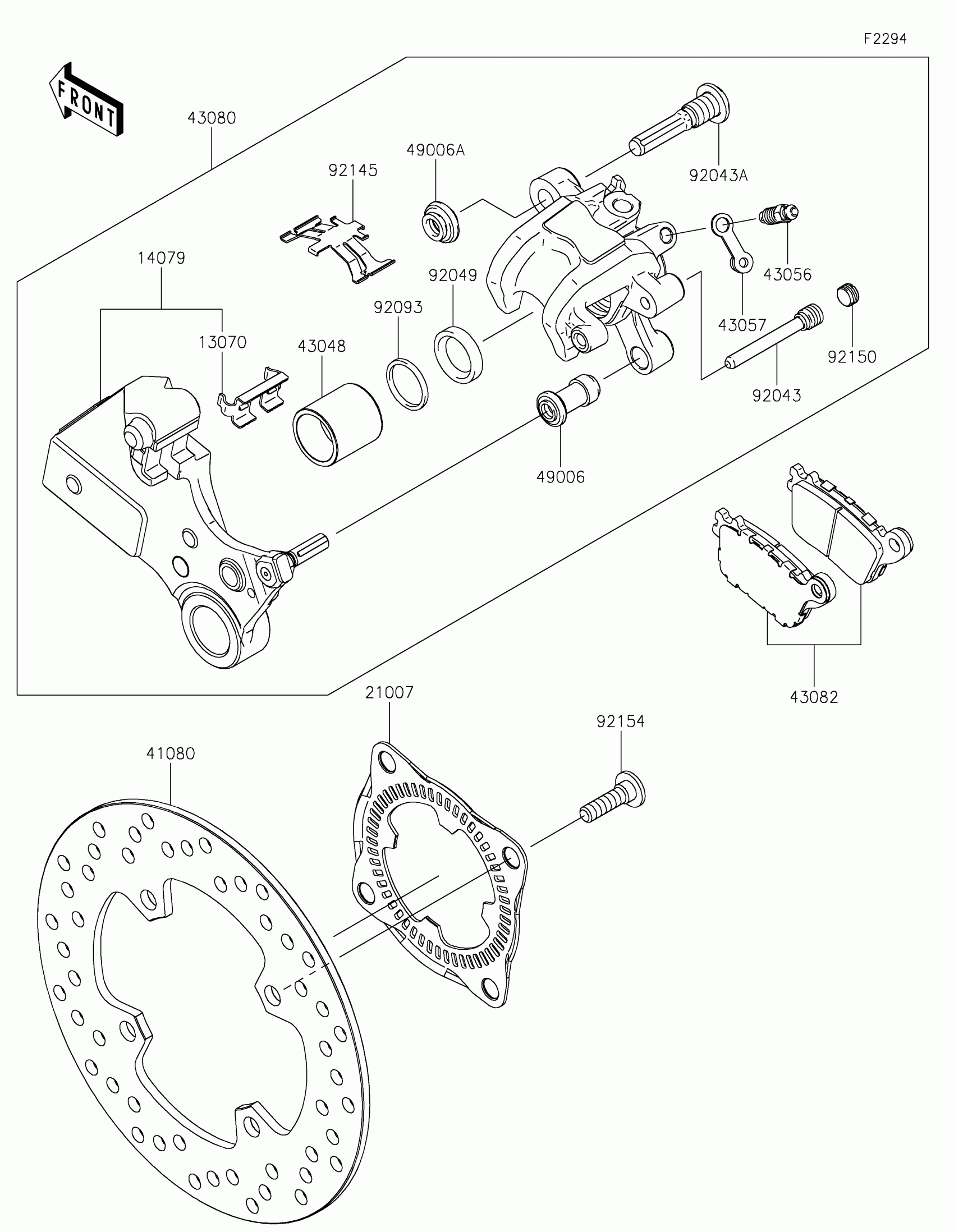

Kawasaki Ninja® ZX™-10R Rear Brake Diagram

Description

Price

13070

GUIDE,BRAKE PAD

13070-0045

$10.25

41080

DISC,RR

41080-0040

$305.85

43034

HOLDER-BRAKE,REAR CALIPER

43034-0004

Unavailable

43044

HOLDER-COMP-CALIPER,RR

43044-0002

$120.07

43048

PISTON-CALIPER

43048-0003

$67.24

43049

PACKING,PISTON SEAL

43049-1097

$8.41

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,RR,GOLD

43080-0014-483

$389.24

43082

PAD-ASSY-BRAKE

43082-0004

$68.58

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1095

$5.55

49006B

BOOT,PISTON SEAL

49006-1212

$18.77

92043

PIN,PAD

92043-1489

$4.93

92144

SPRING,PAD

92144-1719

$37.56

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92151

BOLT,SOCKET,8X20

92151-1289

$1.62
