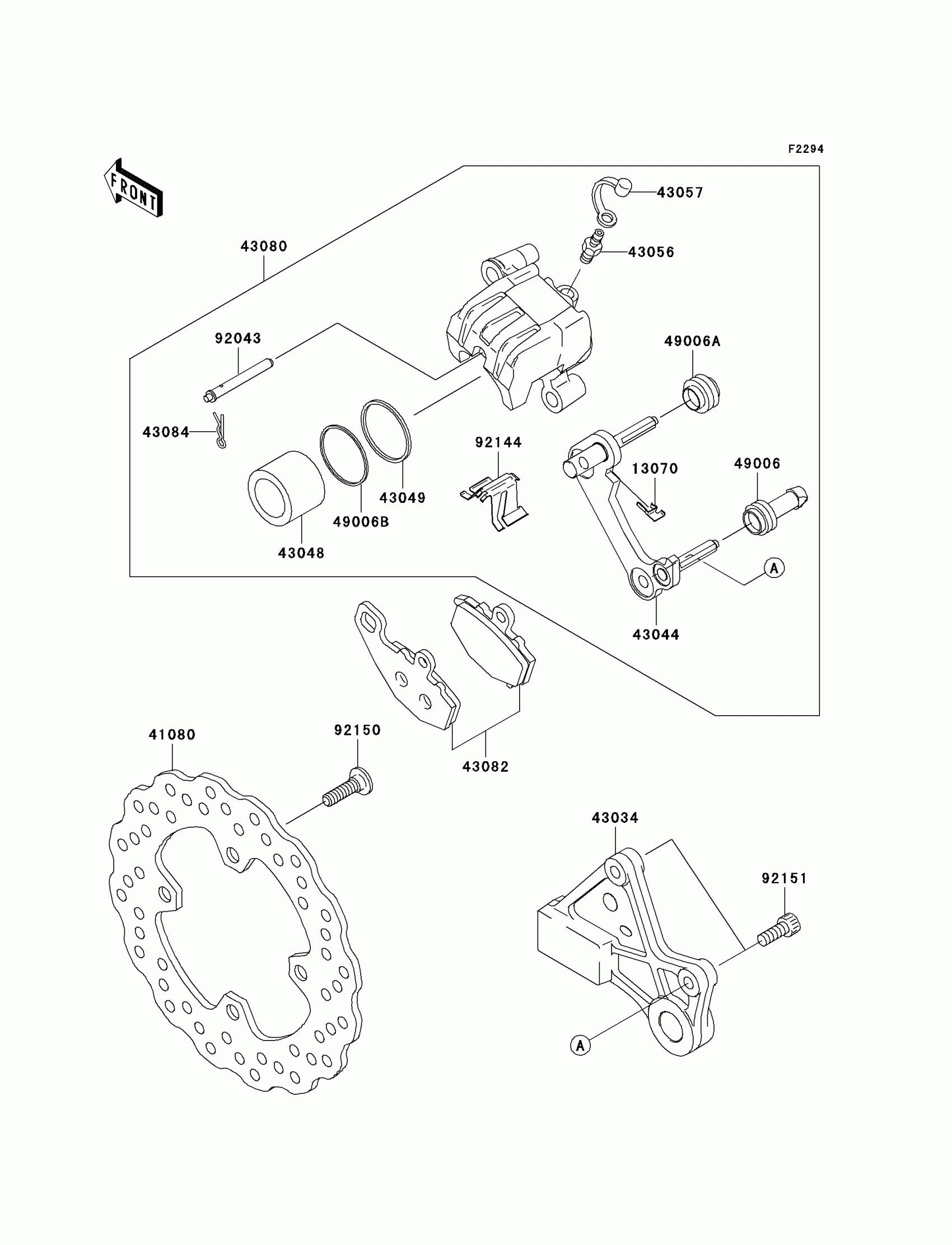

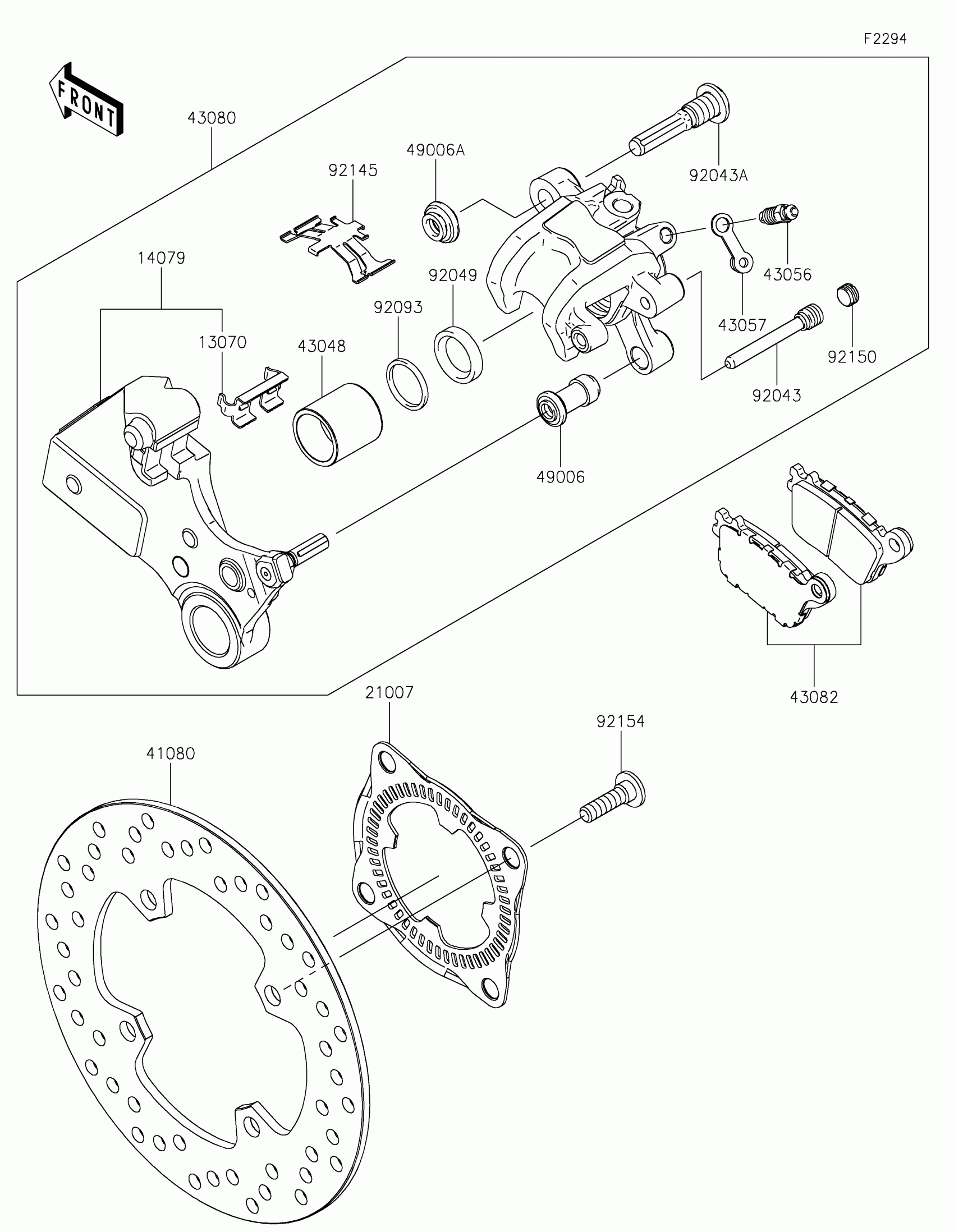

Kawasaki Ninja® ZX™-10R Rear Brake Diagram

Description

Price

13070

GUIDE,BRAKE PAD

13070-0045

$10.64

41080

DISC,RR

41080-0040

$299.63

43034

HOLDER-BRAKE,REAR CALIPER

43034-0004

Unavailable

43044

HOLDER-COMP-CALIPER,RR

43044-0002

$117.62

43048

PISTON-CALIPER

43048-0003

$65.98

43049

PACKING,PISTON SEAL

43049-1097

$11.06

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,RR,GOLD

43080-0014-483

$381.22

43082

PAD-ASSY-BRAKE

43082-0004

$76.43

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1095

$7.27

49006B

BOOT,PISTON SEAL

49006-1212

$23.25

92043

PIN,PAD

92043-1489

$6.57

92144

SPRING,PAD

92144-1719

$36.86

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92151

BOLT,SOCKET,8X20

92151-1289

$2.26
