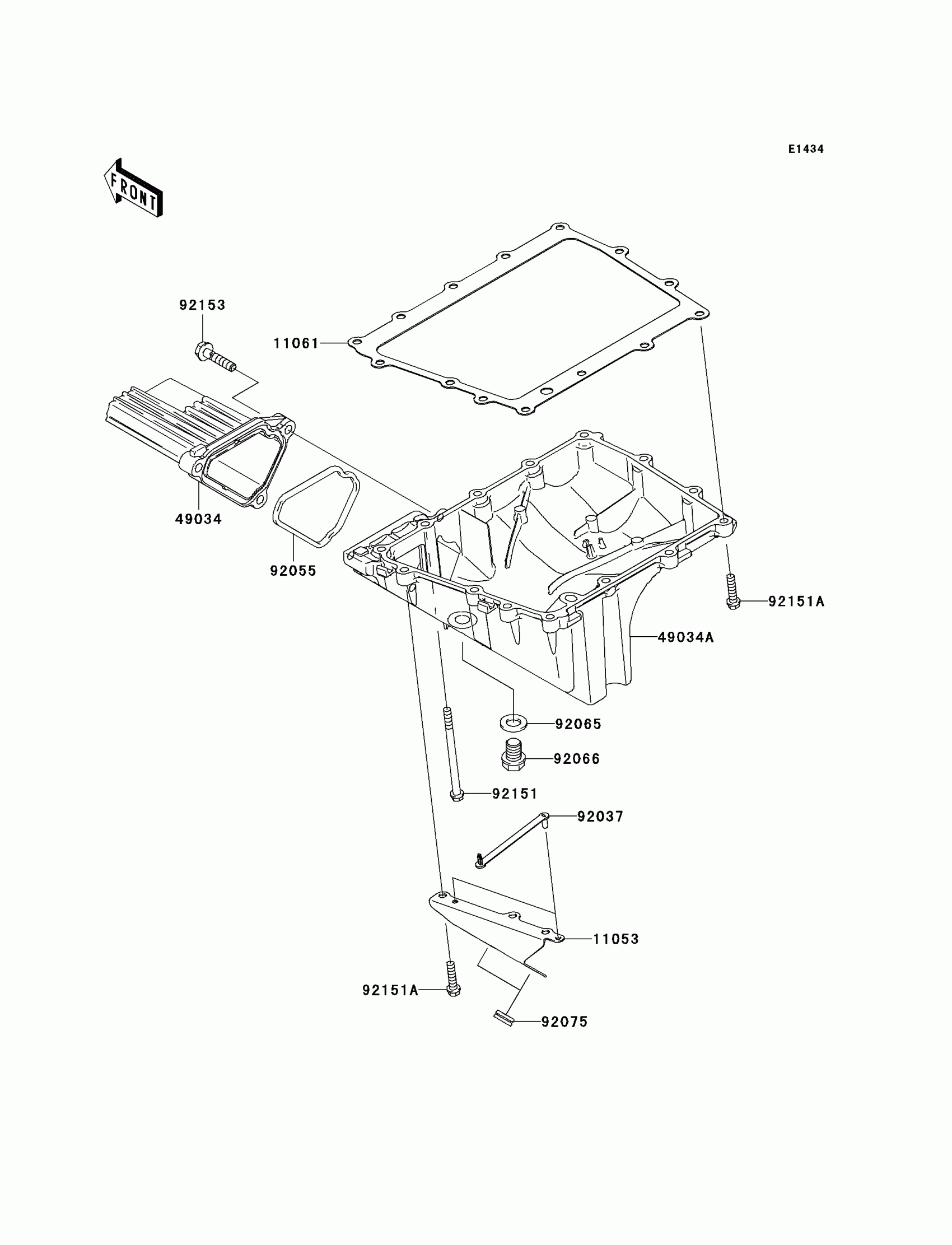

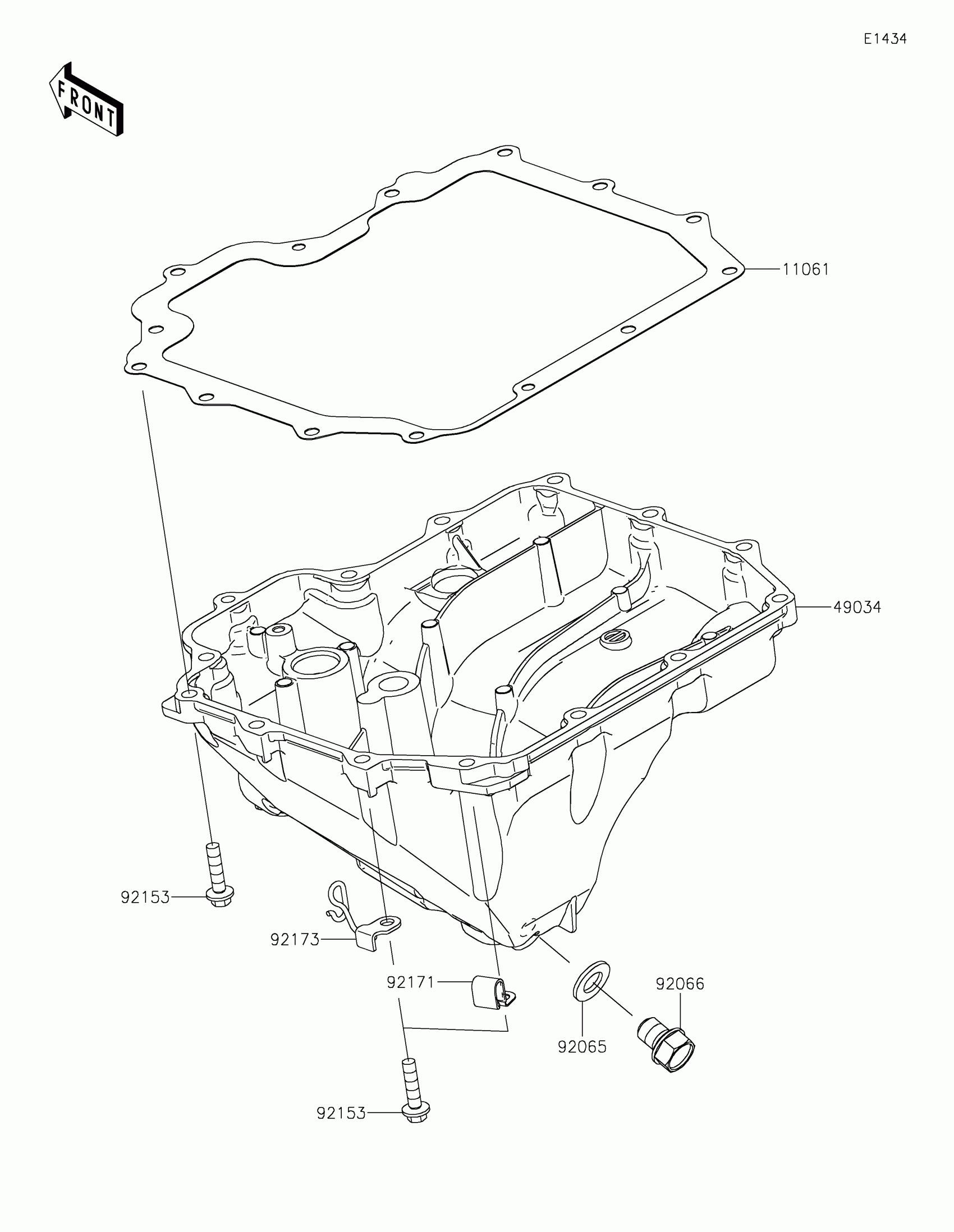

Kawasaki Ninja® ZX™-10R Oil Pan Diagram

Description

Price

11053

BRACKET

11053-0914

$19.32

11061

GASKET,PAN-OIL

11061-0065

$32.72

49034

PAN-OIL,SUB

49034-0008

$70.95

49034A

PAN-OIL,MAIN

49034-0009

$255.62

92037

CLAMP,SPEED,L=43

92037-1290

$7.25

92055

RING-O

92055-0040

$9.63

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92075

DAMPER

92075-1947

$5.61

92151

BOLT,6X85

92151-1427

$3.29

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92153

BOLT,FLANGED,7X32

92153-0448

$2.95
