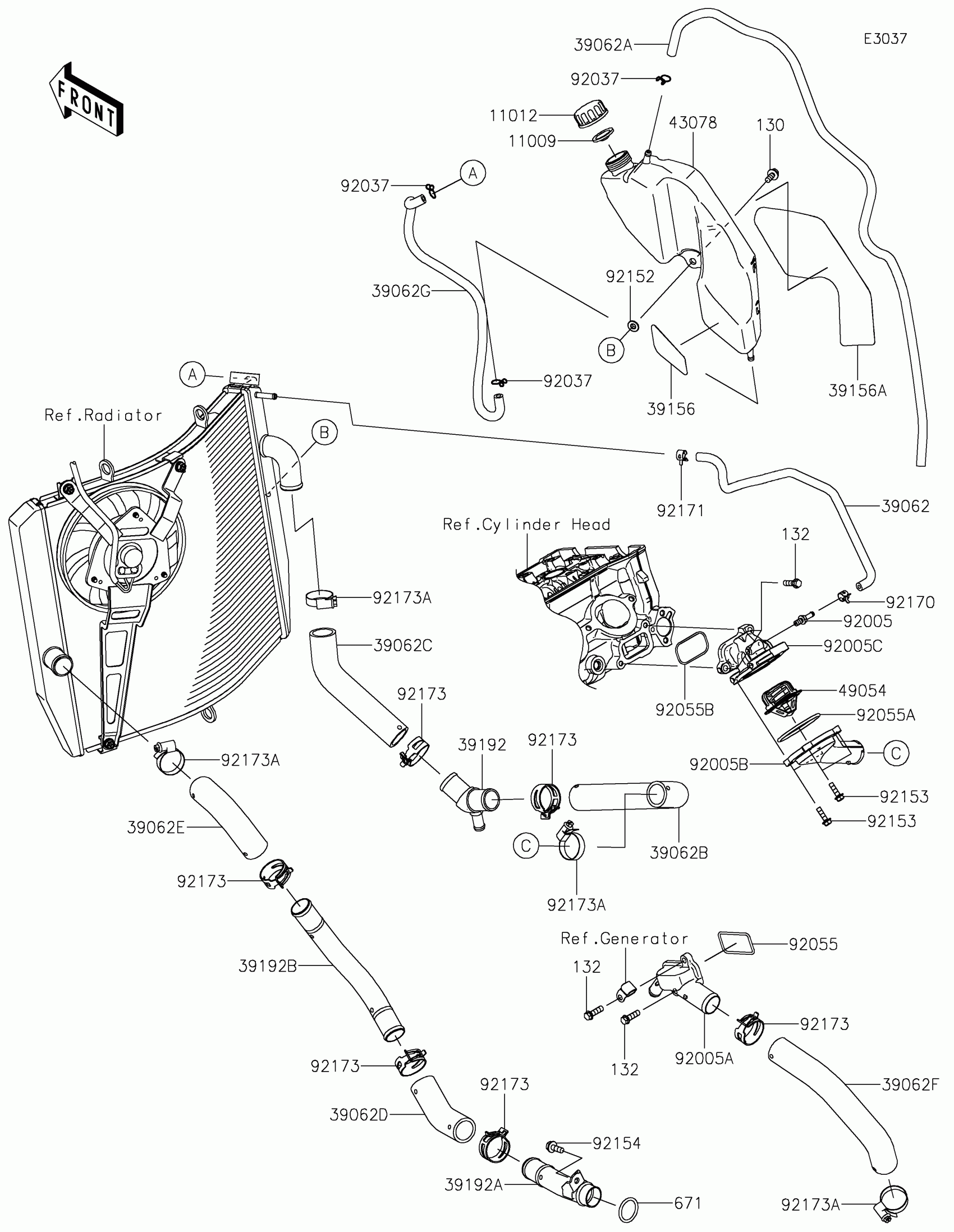

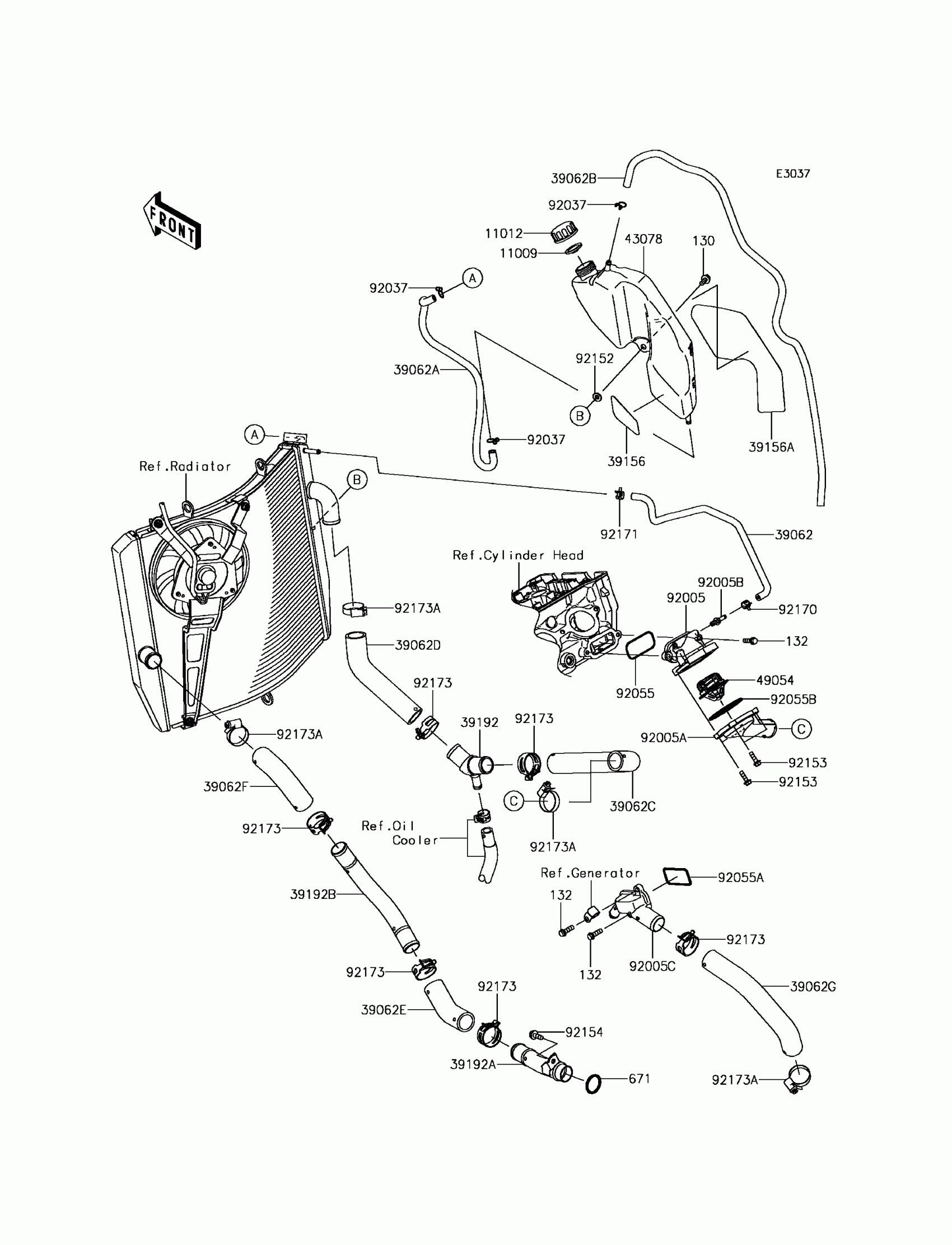

Kawasaki Ninja® ZX™-10R KRT EDITION Water Pipe Diagram
#
Description
Price
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
130
BOLT-FLANGED,6X14
130BA0614
$1.20
132
BOLT-FLANGED-SMALL,6X20
132BC0620
$1.34
39062
HOSE,THERMO CASE-RADIATOR
39062-0347
$9.25
39062A
HOSE-COOLING,OVER FLOW
39062-0729
$9.84
39062B
HOSE,THERMO CAP-3WAY PIPE
39062-0734
$25.54
39062C
HOSE,3WAY PIPE-RADIATOR
39062-0735
$19.64
39062D
HOSE,PIPE(RAD.)-PIPE(W/PUMP)
39062-0736
$14.78
39062E
HOSE,RADIATOR-PIPE(WATER PUMP)
39062-0737
$16.40
39062F
HOSE,WATER PUMP-FITTING
39062-0738
$27.48
39062G
HOSE-COOLING,RETURN
39062-0778
$30.70
39156
PAD
39156-1965
$2.99
39156A
PAD
39156-1989
$9.09
39192
PIPE,3WAY
39192-0614
$19.92
39192A
PIPE,TUBE(RADIATOR)-WATER PUMP
39192-0617
$42.34
39192B
PIPE,TUBE(RADIATOR)-TUBE(PUMP)
39192-0618
$118.10
43078
RESERVOIR
43078-0581
$51.16
49054
THERMOSTAT
49054-0004
$59.01
671
O RING,25MM
671B2525
$5.00
92005
FITTING
92005-0826
$10.21
92005A
FITTING
92005-0837
$37.95
92005B
FITTING,THERMO CAP
92005-0880
$29.34
92005C
FITTING,THERMO CASE
92005-0901
$72.96
92037
CLAMP,TUBE
92037-147
$7.34
92055
RING-O
92055-0209
$6.00
92055A
RING-O,53.5X2.6
92055-0831
$7.85
92055B
RING-O,27.6X49.6X1.9
92055-0913
$15.57
92152
COLLAR
92152-1414
$7.63
92153
BOLT,FLANGED,5X18
92153-1588
$1.34
92154
BOLT,FLANGED-SMALL,6X16
92154-1893
$4.69
92170
CLAMP
92170-1493
$5.00
92171
CLAMP
92171-0719
$2.15
92173
CLAMP,34MM
92173-1360
$3.96
92173A
CLAMP
92173-1548
$24.54
