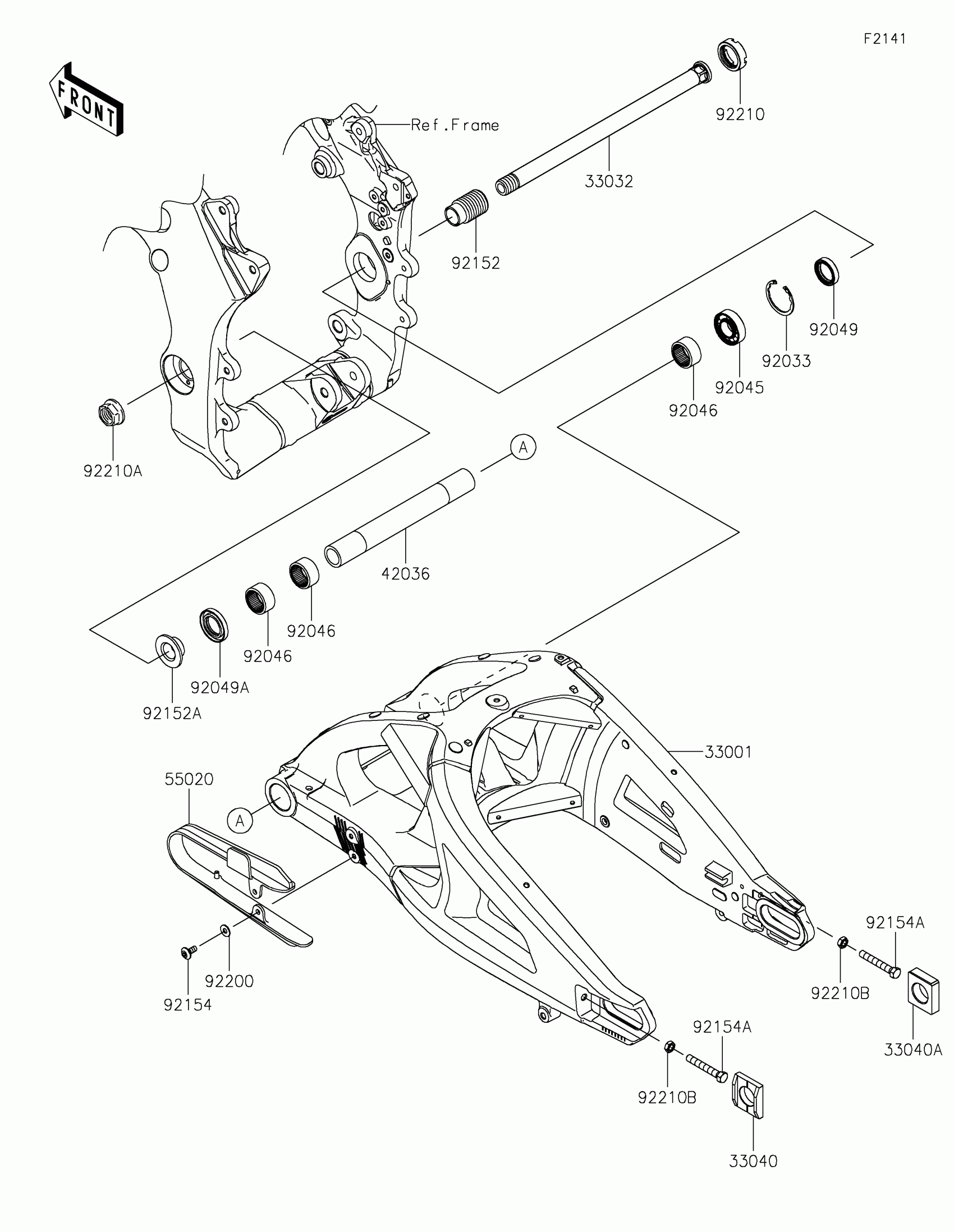

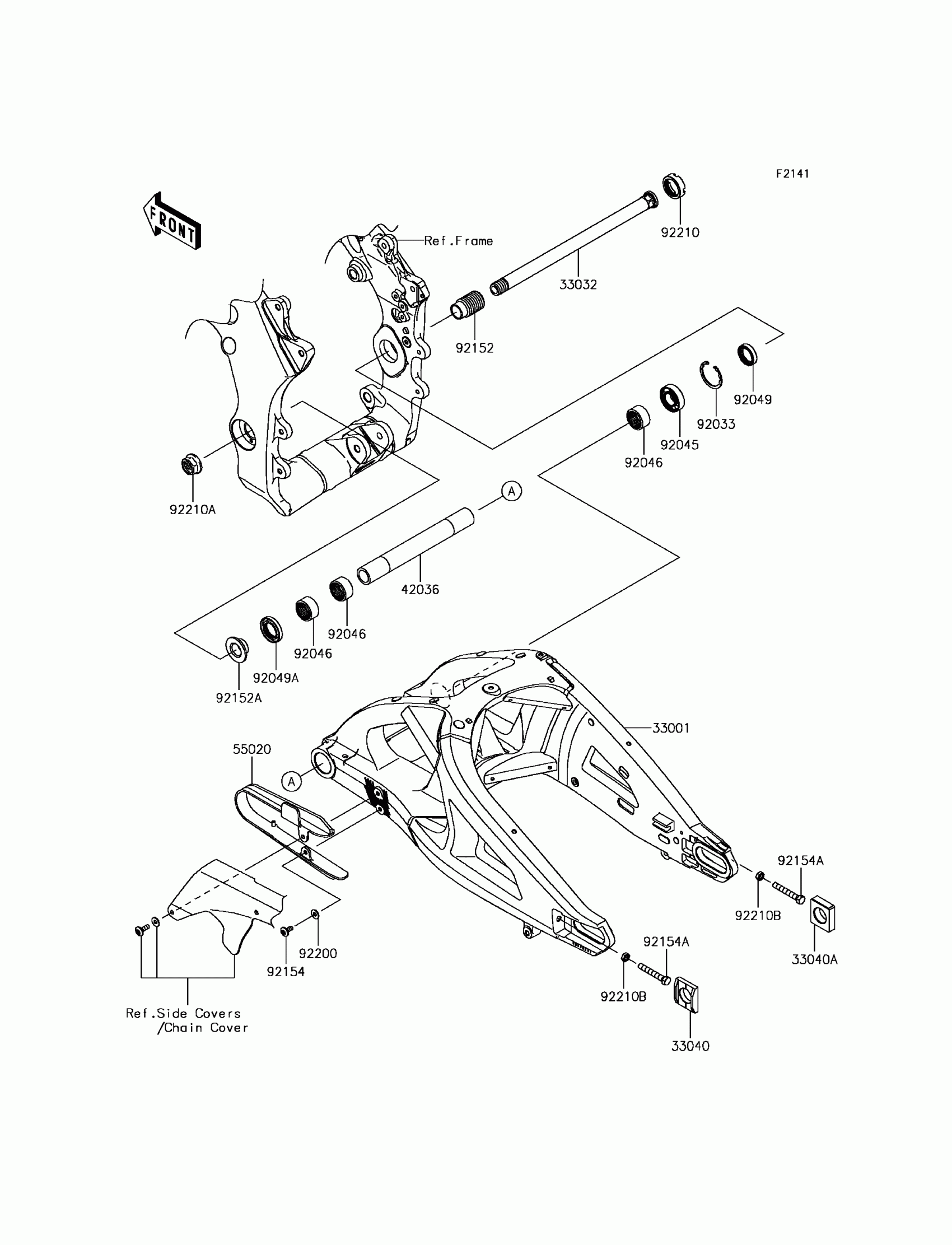

Kawasaki Ninja® ZX™-10R KRT EDITION Swingarm Diagram

Description

Price

33001

ARM-COMP-SWING

33001-0648

$1,581.97

33032

SHAFT-SWING ARM

33032-0048

$104.45

33040

ADJUSTER-CHAIN,RH

33040-0027

$38.65

33040A

ADJUSTER-CHAIN,RH

33040-1114

$19.28

42036

SLEEVE,SWING ARM PIVOT,L=226

42036-1341

$68.84

55020

GUARD,CHAIN

55020-0561

$40.27

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6004UL11

92045-0017

$14.39

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$21.54

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$13.75

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

$9.28

92152

COLLAR,SWING ARM,L=47

92152-0154

$37.14

92152A

COLLAR,20.2X25X15

92152-2169

$29.61

92154

BOLT,SOCKET,6X14

92154-1807

$3.29

92154A

BOLT-SMALL,8X55

92154-1962

$5.69

92200

WASHER,6.2X15X1.2

92200-1762

$1.19

92210

NUT,30MM

92210-0134

$28.51

92210A

NUT,FLANGED,20MM

92210-0320

$11.93

92210B

NUT-HEX-SMALL,8MM

92210-1459

$3.94
