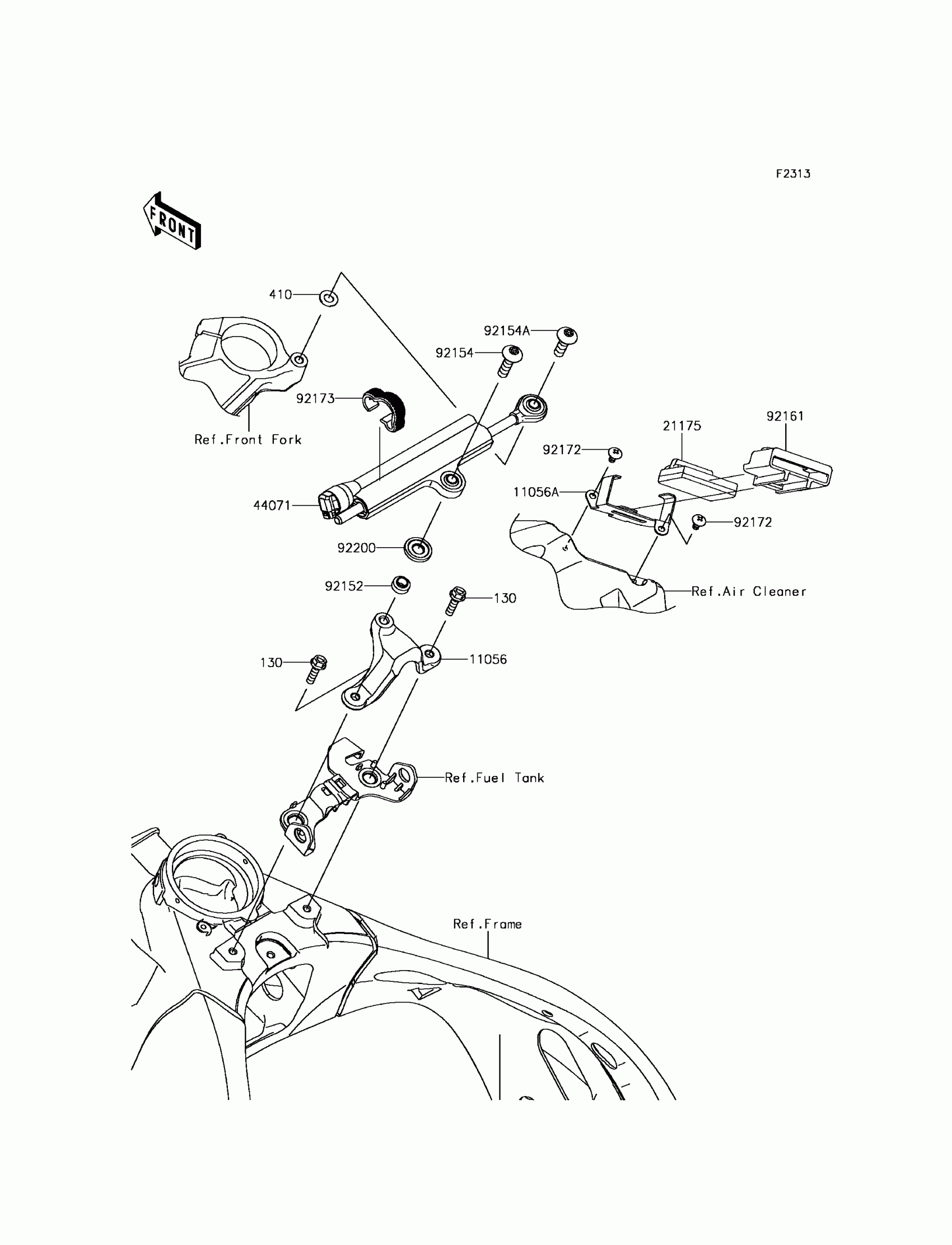

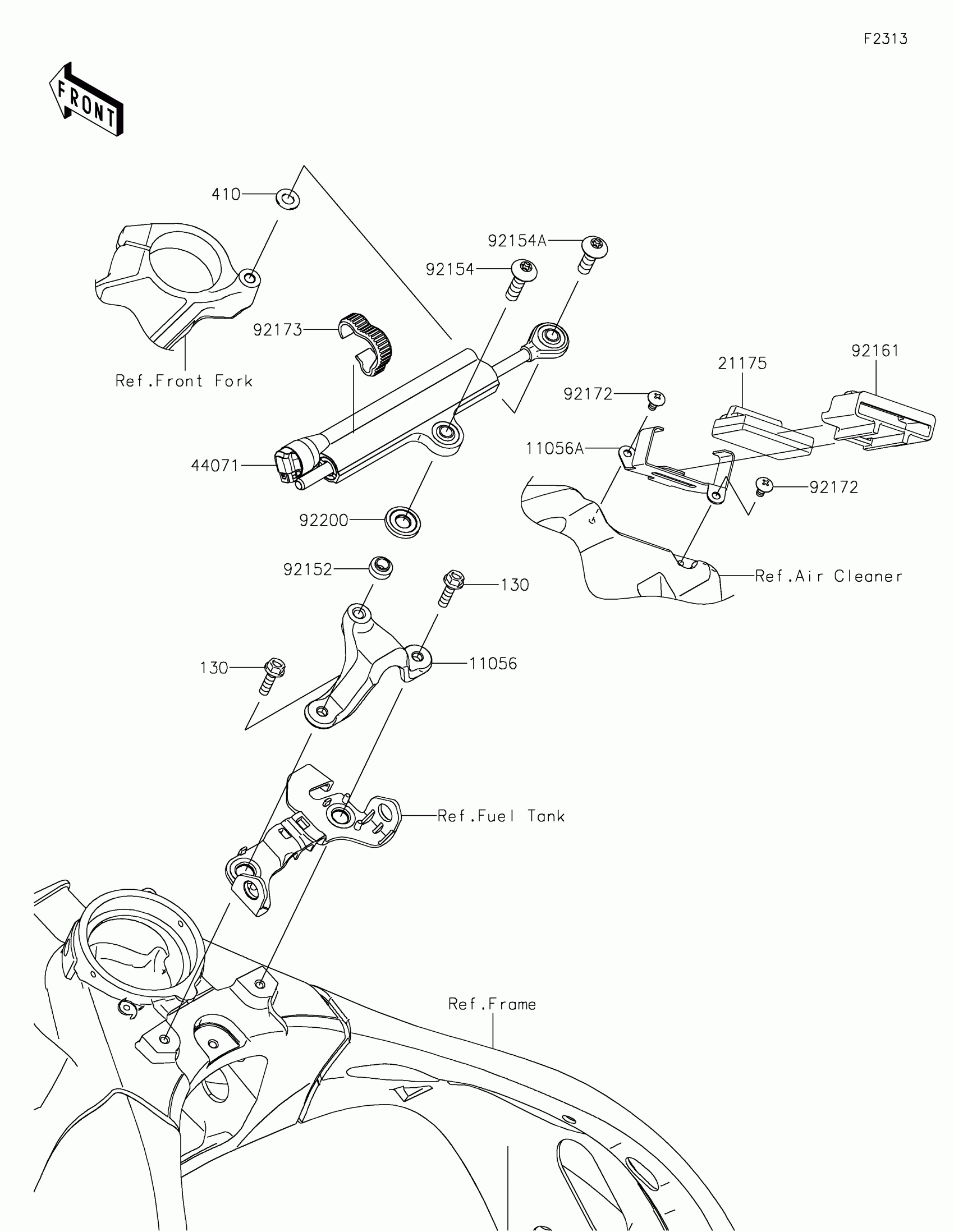

Kawasaki Ninja ZX-10R KRT Edition Steering Damper Diagram

Description

Price

130

BOLT-FLANGED,6X20

130BA0620

$1.74

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.96

11056

BRACKET,STEERING DAMPER

11056-0173

$31.98

11056A

BRACKET,ECU

11056-7685

$11.00

21175

CONTROL UNIT-ELECTRONIC,OHLINS

21175-1155

$516.95

44071

DAMPER-ASSY

44071-0857

$760.68

92152

COLLAR,8X10X7.3

92152-2146

$9.17

92154

BOLT,TORX,8X30

92154-1801

$7.33

92154A

BOLT,TORX,8X26

92154-1897

$6.77

92161

DAMPER,ECU

92161-1729

$12.01

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92173

CLAMP

92173-1023

$5.05

92200

WASHER

92200-0293

$2.61
