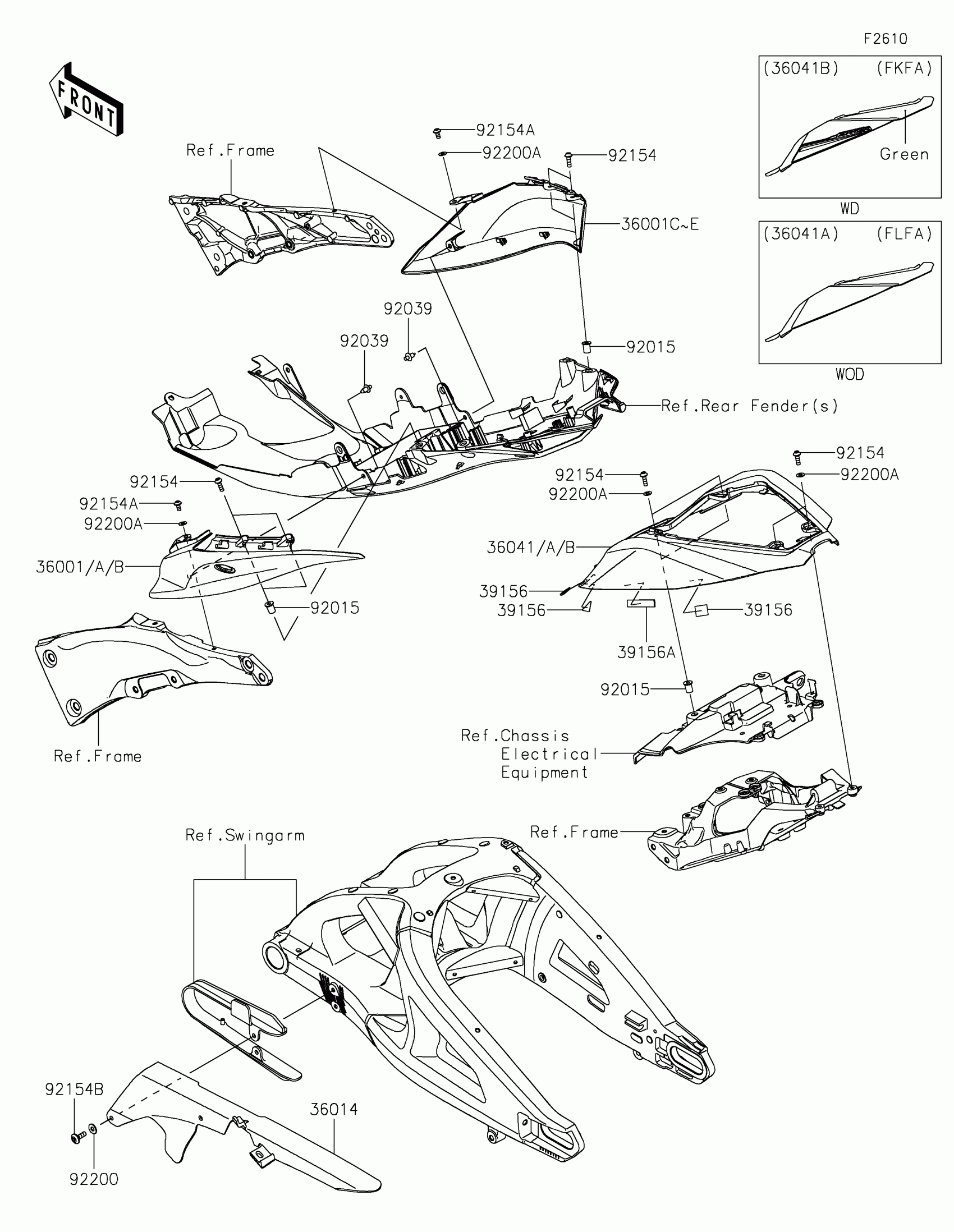

Kawasaki Ninja ZX-10R KRT Edition Side Covers/Chain Cover Diagram

Description

Price

36001B

COVER-SIDE,TAIL,LH,L.GREEN

36001-0640-777

$102.08

36001E

COVER-SIDE,TAIL,RH,L.GREEN

36001-0641-777

$102.08

36014

CASE-CHAIN

36014-0062

$26.09

36041B

COVER-TAIL,L.GREEN

36041-5113-777

$298.04

39156

PAD,15X20X0.2

39156-1784

$1.02

39156A

PAD,10X50X2

39156-1924

$2.44

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0068

$2.97

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X10

92154-0211

$2.12

92154B

BOLT,SOCKET,6X18

92154-1694

$2.75

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER,6.2X15X1.2

92200-1762

$1.19
