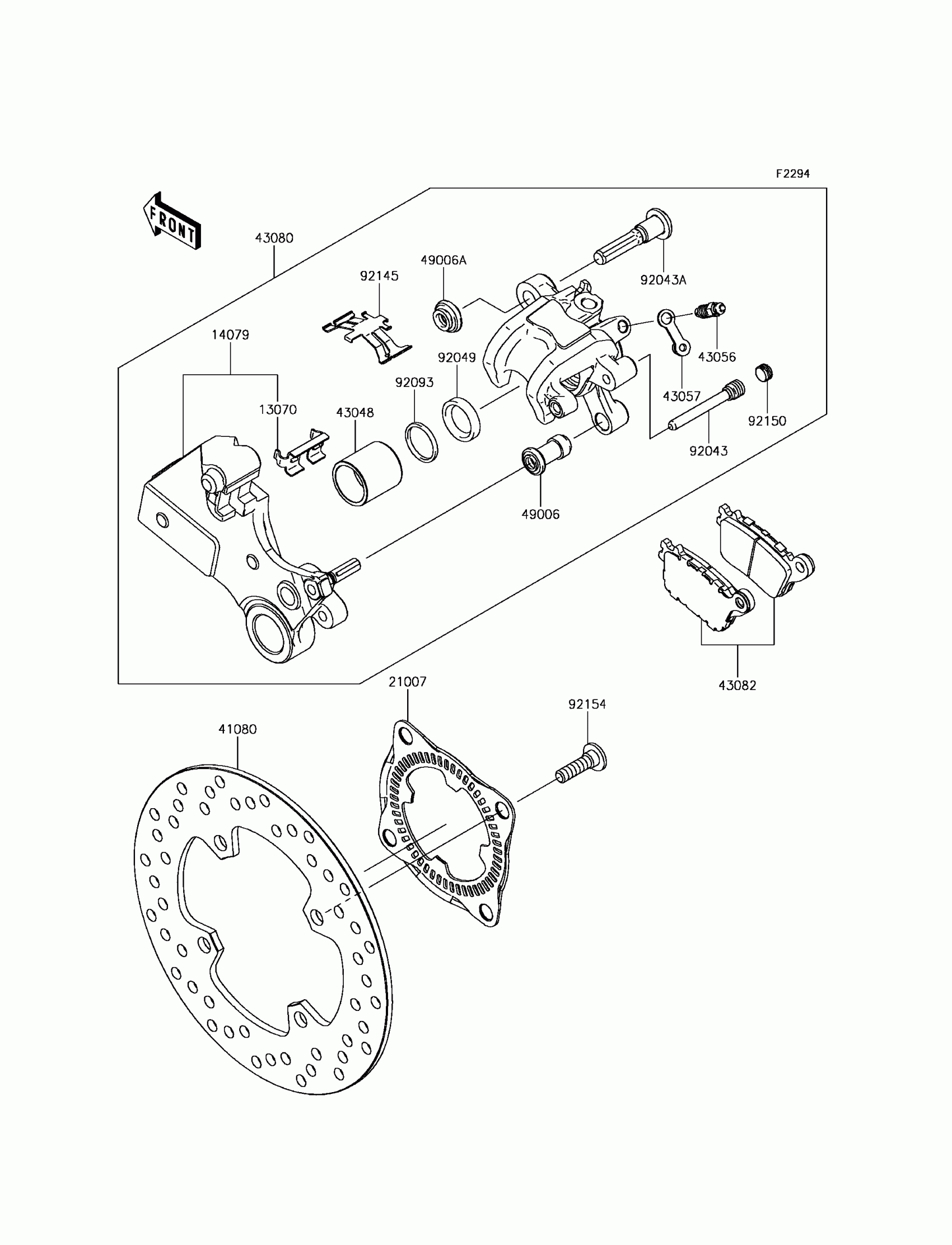

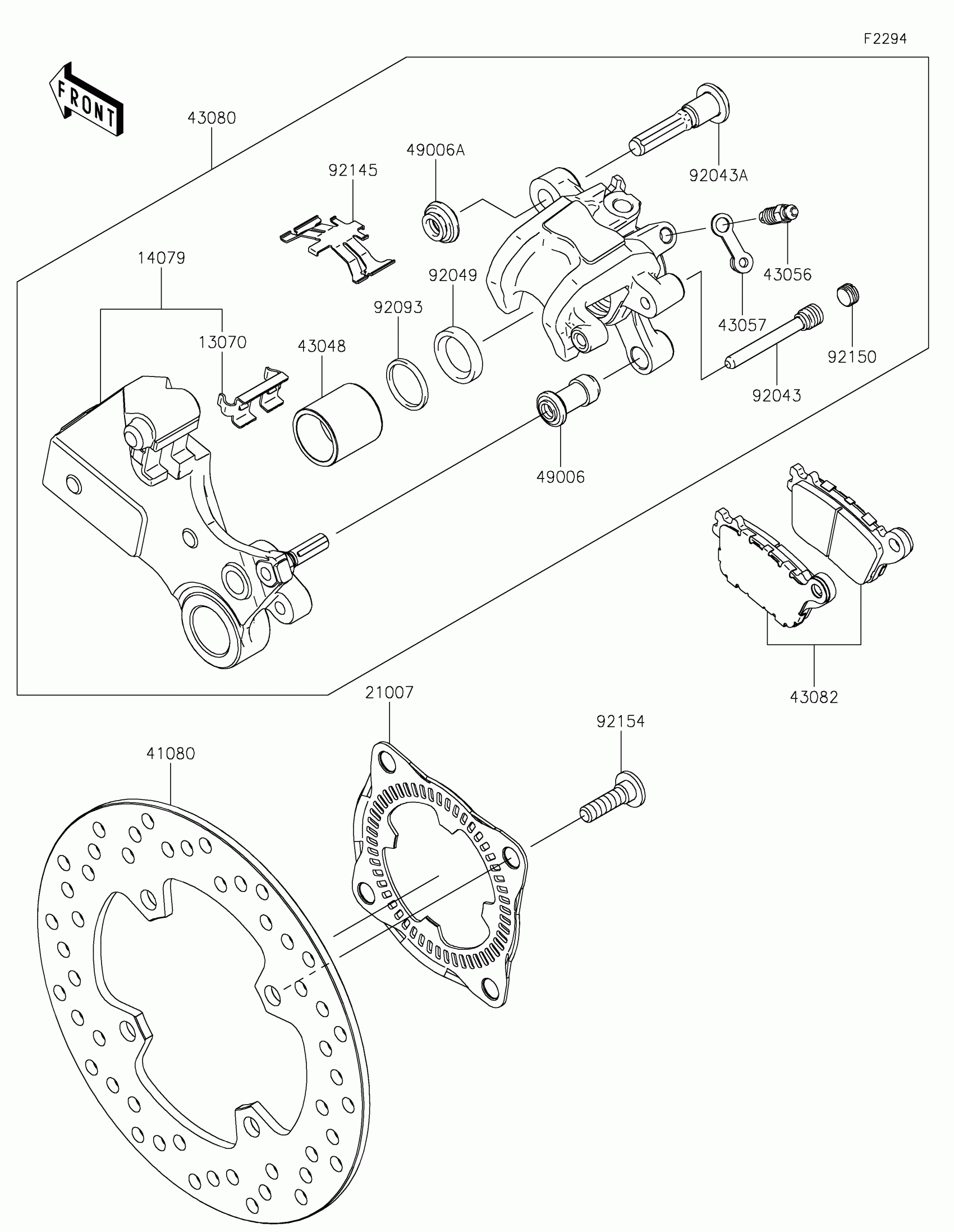

Kawasaki Ninja ZX-10R KRT Edition Rear Brake Diagram

Description

Price

13070

GUIDE

13070-0126

$7.52

14079

HOLDER-ASSY

14079-0074

$85.04

21007

ROTOR,RR WHEEL

21007-0167

$33.54

41080

DISC,RR

41080-0662

$246.98

43048

PISTON-CALIPER

43048-0018

$41.04

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0097-DJ

$385.26

43082

PAD-ASSY-BRAKE

43082-0115

$50.13

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92043

PIN,PAD

92043-0106

$7.75

92043A

92043-1508

$13.75

92049

SEAL-OIL,PISTON

92049-1331

$9.28

92093

SEAL,PISTON

92093-1272

$19.45

92145

SPRING

92145-0810

$12.46

92150

BOLT,PLUG

92150-1692

$7.84

92154

BOLT,SOCKET,8X30

92154-1865

$4.69
