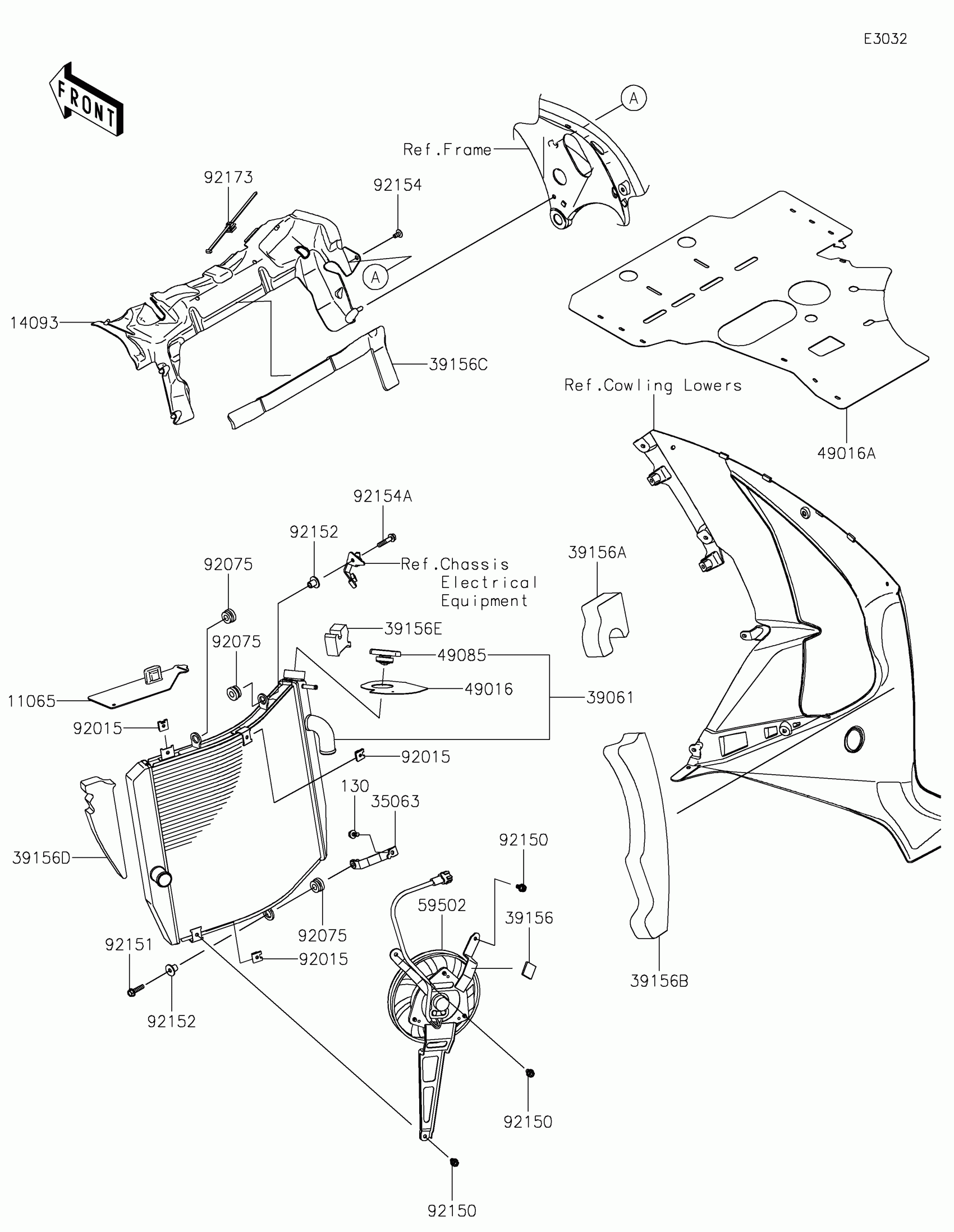

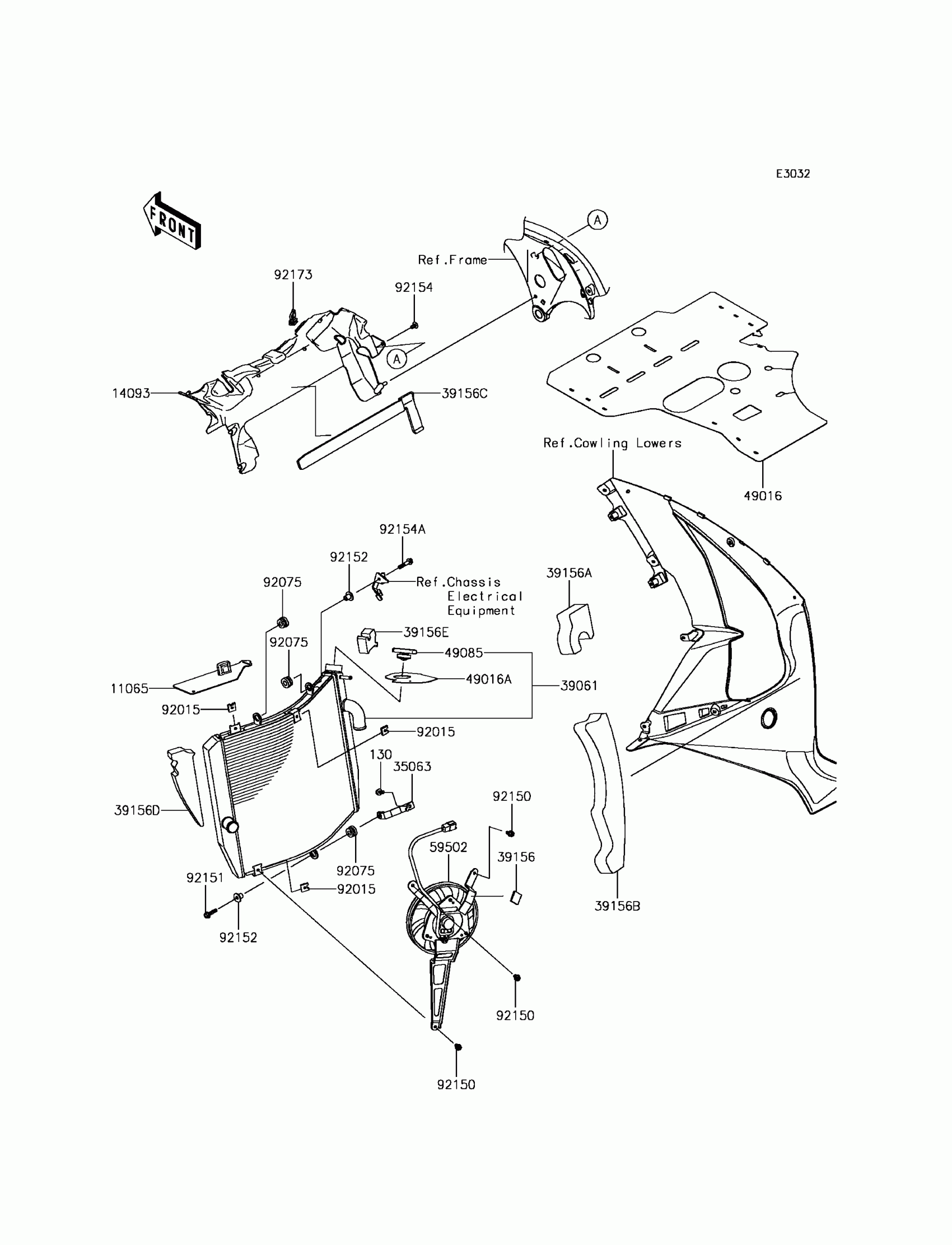

Kawasaki Ninja® ZX™-10R KRT EDITION Radiator Diagram

Description

Price

11065

CAP

11065-0737

$21.12

130

BOLT-FLANGED,6X14

130BA0614

$1.20

14093

COVER

14093-0767

$58.78

35063

STAY

35063-0701

$14.56

39061

RADIATOR-ASSY

39061-0566

$863.51

39156

PAD

39156-0285

$1.33

39156A

PAD

39156-0710

$5.06

39156B

PAD

39156-0724

$36.90

39156C

PAD

39156-0730

$6.89

39156D

PAD

39156-1941

$27.54

39156E

PAD

39156-1976

$11.64

49016

COVER-SEAL,RH

49016-0637

$11.19

49016A

COVER-SEAL,ENGINE RR

49016-0669

$63.84

49085

CAP-ASSY-PRESSURE

49085-1078

$52.03

59502

FAN-ASSY

59502-0606

$464.75

92015

NUT

92015-1487

$4.80

92075

DAMPER,RUBBER

92075-1123

$5.00

92150

BOLT,6X12

92150-1186

$3.37

92151

BOLT,FLANGED,6X25

92151-1225

$2.46

92152

COLLAR

92152-1074

$6.22

92154

BOLT,6X12

92154-1892

$1.71

92154A

BOLT,FLANGED,15X30

92154-2119

$2.49

92173

CLAMP

92173-1578

$8.05
