Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BC0612

$1.81

132A

BOLT-FLANGED-SMALL,6X25

132BC0625

$1.44

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.95

551

PIN-DOWEL,4X8

551A0408

$0.68

11061

GASKET

11061-0107

$1.82

12046

SPROCKET,OIL PUMP,38T

12046-0094

$60.78

12053

GUIDE-CHAIN

12053-0181

$16.83

13107

SHAFT,LH

13107-0230

$31.28

13107A

SHAFT,RH

13107-0838

$55.15

16097

FILTER-ASSY-OIL

16097-0011

$14.19

16130

VALVE-ASSY-RELIEF

16130-0005

$46.63

16142

COVER-PUMP,WATER

16142-0734

$61.53

16154

ROTOR-PUMP

16154-0708

$67.40

16160

BODY,WATER PUMP

16160-0226

$96.19

21053

SPROCKET-ASSY,PUMP DRIVE,29T

21053-0007

$118.73

32033

PIPE,OIL FILTER

32033-1535

$9.85

49063

SEAL-MECHANICAL

49063-1055

$16.33

49065

FILTER-OIL

49065-0042

$42.74

59256

IMPELLER

59256-0011

$31.23

92002

BOLT,6X22

92002-1154

$3.57

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,11.2X15X1

92022-311

$3.53

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92042A

PIN,DOWEL,4X13.8

92042-030

$2.99

92049

SEAL-OIL

92049-0778

$25.64

92055

RING-O,WATER PUMP

92055-0208

$6.99

92055A

RING-O,OIL FILTER

92055-1503

$7.25

92055B

RING-O,52.6X2.4

92055-1520

$3.57

92057

CHAIN,PUMP DRIVE

92057-0674

$27.07

92152

COLLAR

92152-0865

$18.34

92154

BOLT,FLANGED,6X22

92154-0387

$1.66

92154A

BOLT,FLANGED,6X40

92154-1890

$5.46

92154B

BOLT,6MM

92154-1891

$7.36

92200

WASHER

92200-1771

$5.66

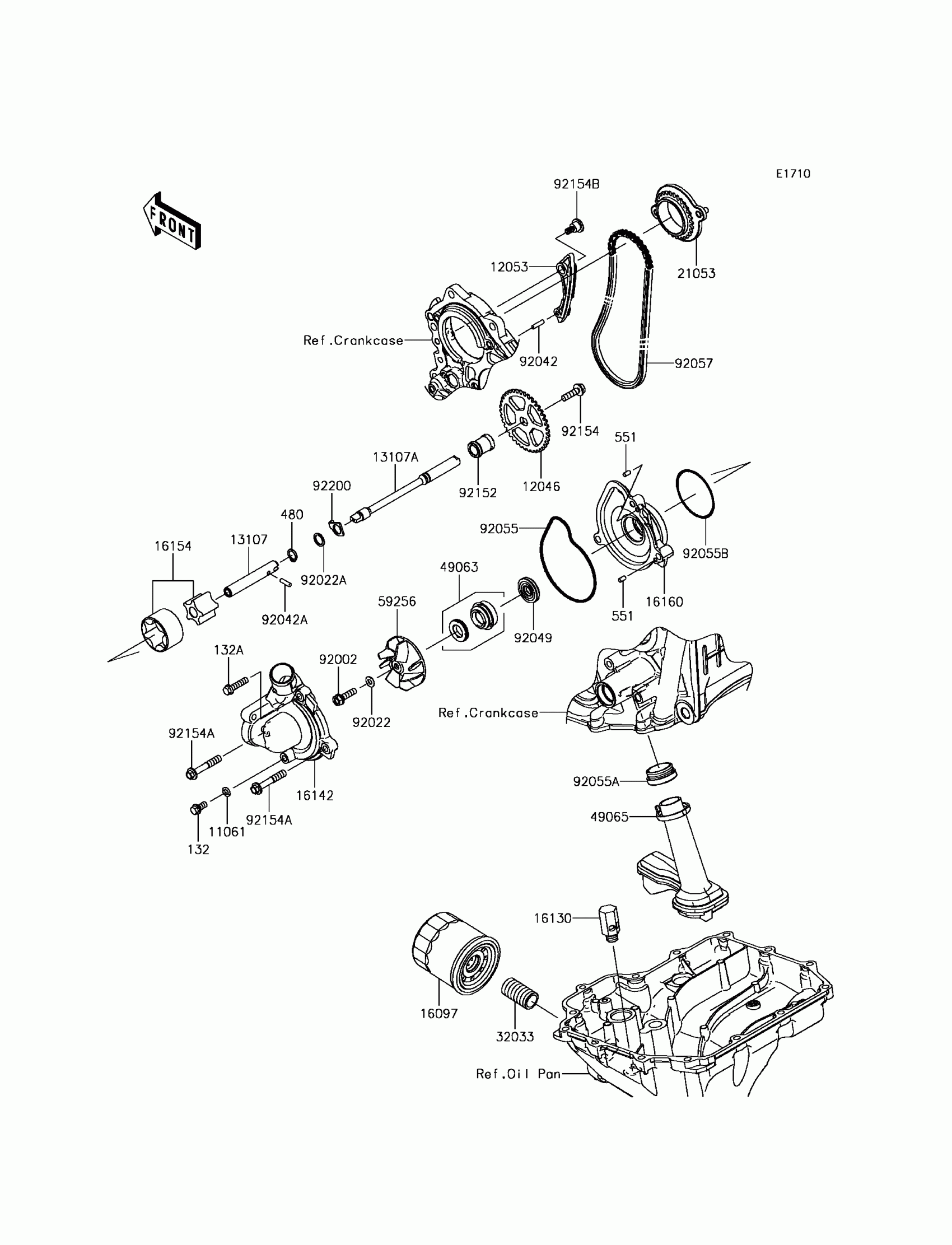

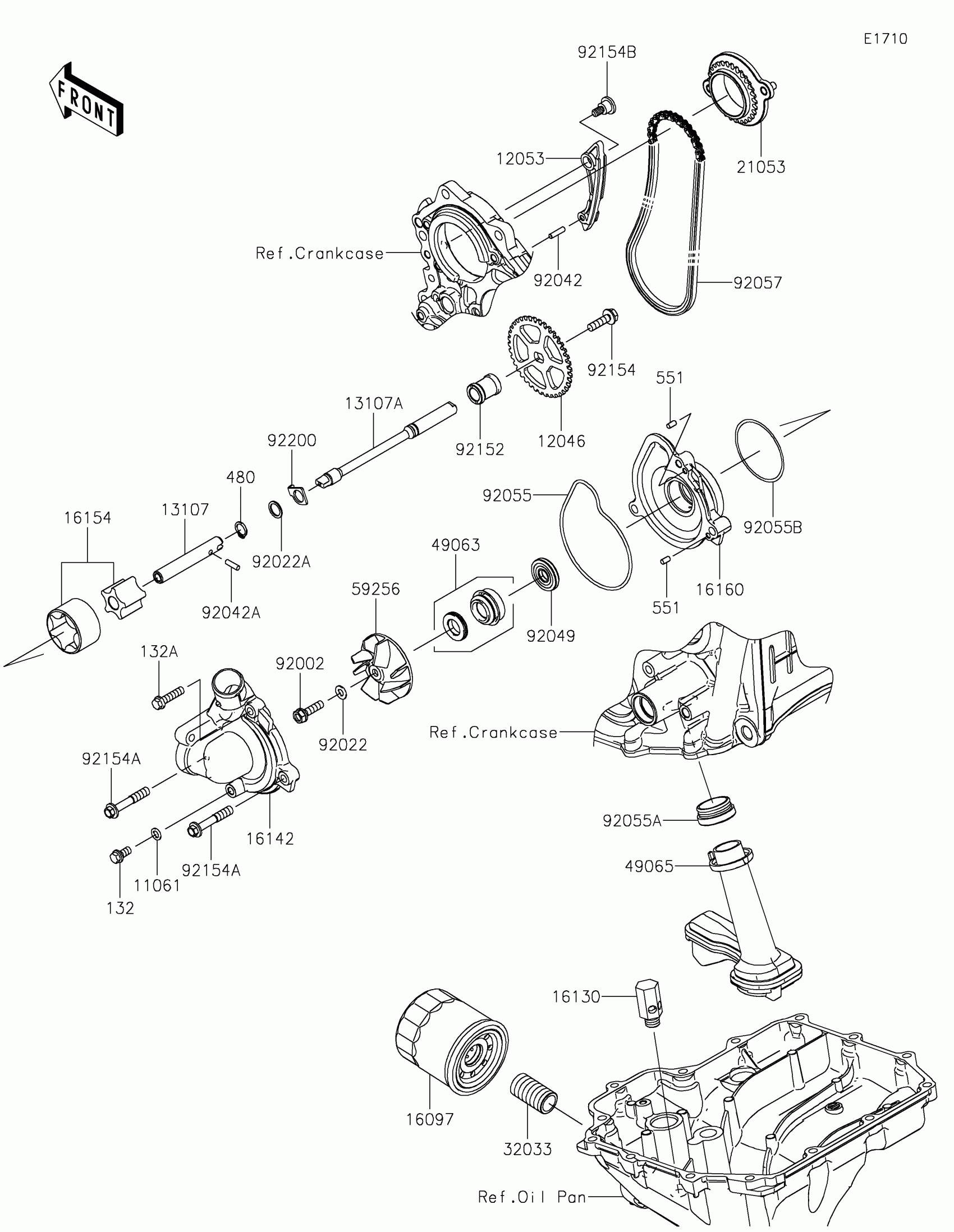

Kawasaki Ninja ZX-10R KRT Edition Oil Pump/Oil Filter Diagram
