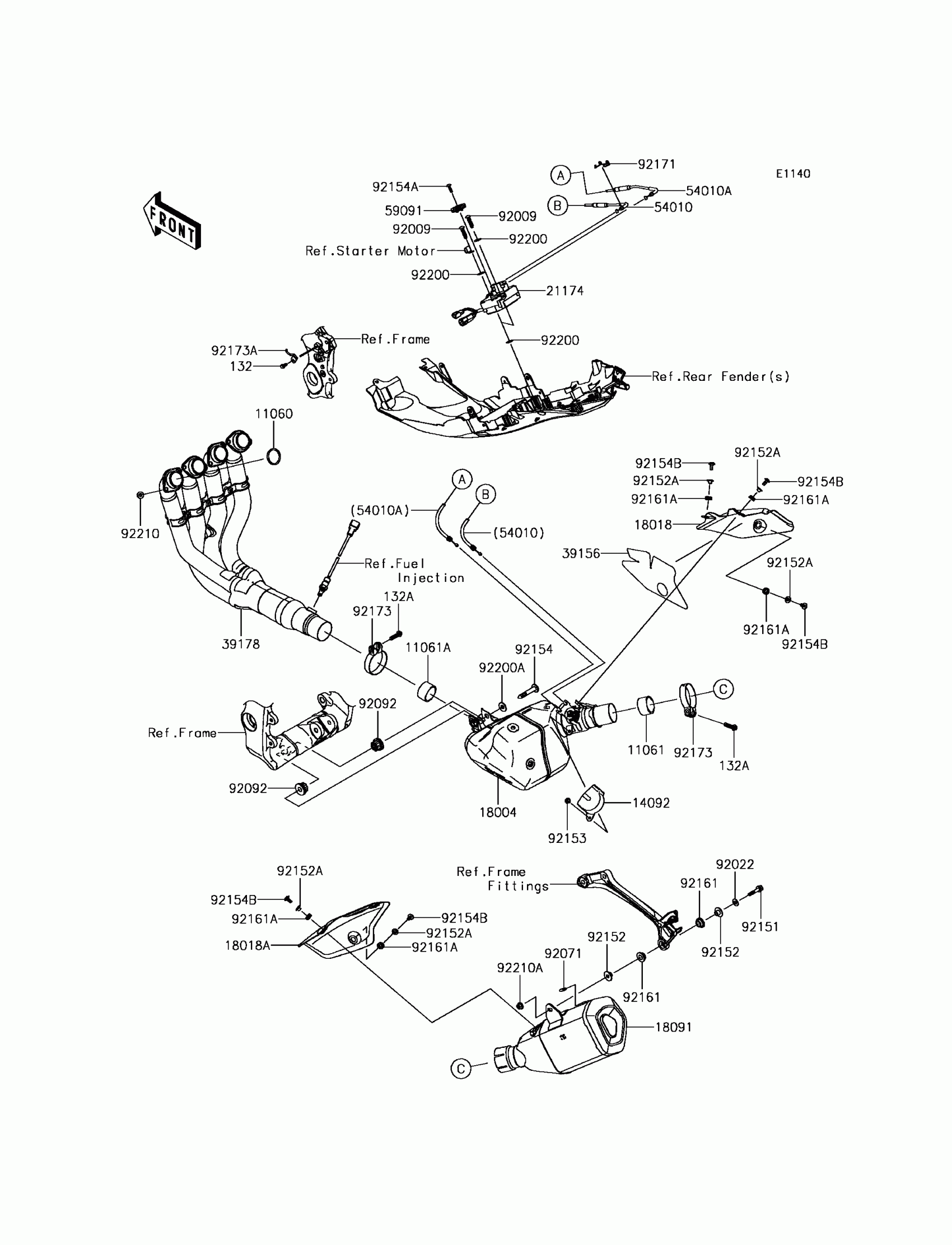

Kawasaki Ninja® ZX™-10R KRT EDITION Muffler(s) Diagram
#
11060
GASKET,EXHAUST PIPE
11060-1203
$10.80
11061
GASKET,50.8X62X30
11061-0447
$25.48
11061A
GASKET,54X62X30
11061-0448
$21.89
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132A
BOLT-FLANGED-SMALL,8X30
132BC0830
$3.90
14092
COVER,PULLEY
14092-0705
$34.21
18004
CHAMBER-PREMUFFLER
18004-0107
$1,614.73
18018
PLATE-HEAT GUARD,CHAMBER
18018-0600
$265.90
18018A
PLATE-HEAT GUARD,MUFFLER
18018-0601
$377.84
18091
BODY-COMP-MUFFLER
18091-0970
$1,581.97
21174
MOTOR-ELECTRIC
21174-0009
$337.67
39156
PAD
39156-1937
$9.09
39178
MANIFOLD-COMP-EXHAUST
39178-0358
$2,262.18
54010
CABLE,OPEN
54010-0610
$82.60
54010A
CABLE,CLOSE
54010-0611
$82.60
59091
PULLEY
59091-0007
$22.29
92009
SCREW,TAPPING,6X30
92009-1481
$4.69
92022
WASHER,8.5X19X1.2
92022-3730
$4.31
92071
GROMMET
92071-1270
$7.22
92092
BUSHING-RUBBER,MUFFLER
92092-1087
$19.90
92151
BOLT,FLANGED,8X40
92151-1532
$2.67
92152
COLLAR
92152-0188
$3.73
92152A
COLLAR,6.3X8.3X16
92152-2180
$5.69
92153
BOLT,SOCKET,6X10
92153-1527
$1.78
92154
BOLT,SOCKET,10X61
92154-0125
$13.18
92154A
BOLT,TORX,5X18
92154-0217
$3.71
92154B
BOLT,SOCKET,6X14
92154-0907
$1.97
92161
DAMPER
92161-0135
$3.44
92161A
DAMPER
92161-0308
$3.90
92171
CLAMP
92171-0292
$10.11
92173
CLAMP,64.5MM
92173-0284
$32.48
92173A
CLAMP
92173-1528
$9.67
92200
WASHER
92200-0078
$2.12
92200A
WASHER,10.5X25X2.0
92200-1377
$4.18
92210
NUT,8MM
92210-0076
$5.48
92210A
NUT,8MM
92210-0121
$2.26
