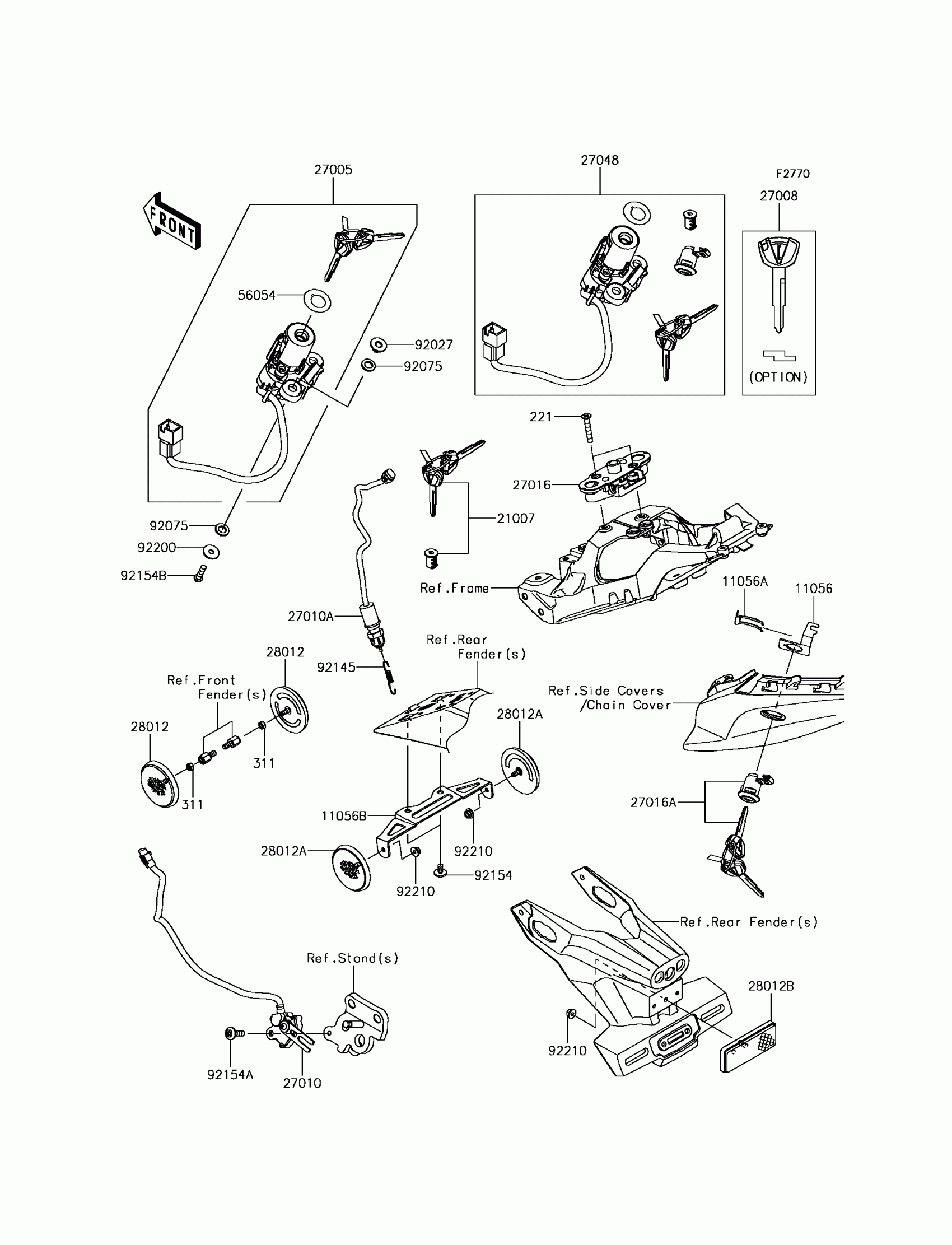

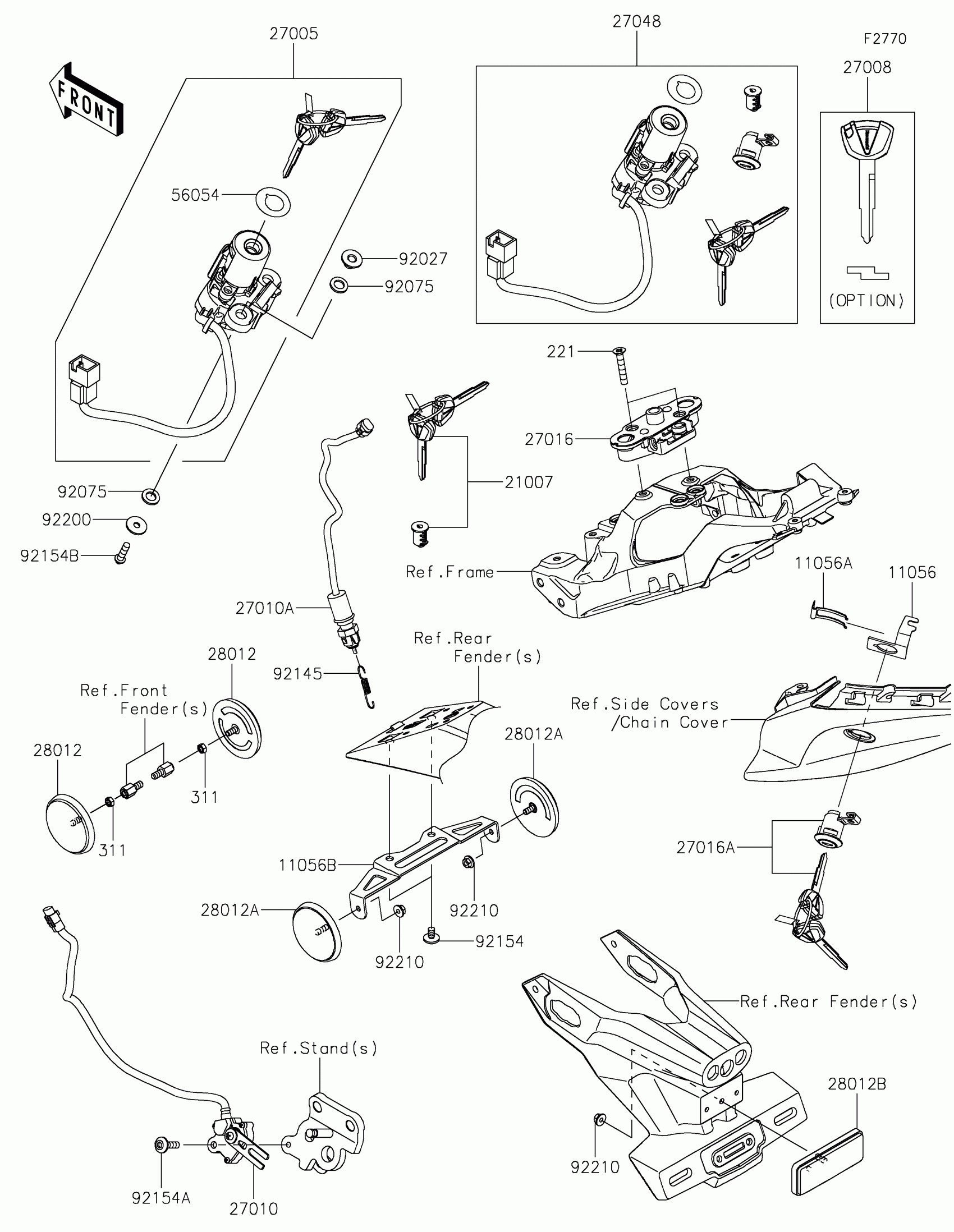

Kawasaki Ninja ZX-10R KRT Edition Ignition Switch/Locks/Reflectors Diagram

Description

Price

221

SCREW-CSK-CROS,6X35

221AB0635

$1.17

311

NUT-HEX,5MM

311AB0500

$0.46

11056

BRACKET

11056-0237

$3.36

11056A

BRACKET,CLASP

11056-0238

$4.53

11056B

BRACKET,REFLECTOR

11056-4496

$15.81

21007

ROTOR,LOCK,TANK CAP

21007-5068

$90.02

27005

SWITCH-ASSY-IGNITION

27005-0621

$183.65

27008

KEY-LOCK,BLANK

27008-0069

$19.64

27010

SWITCH,SIDE STAND

27010-0003

$69.51

27010A

SWITCH,STOP

27010-0836

$35.68

27016

LOCK-ASSY,SEAT STRIKER

27016-0035

$65.38

27016A

LOCK-ASSY,SEAT

27016-5391

$92.15

27048

SWITCH-ASSY

27048-5104

$418.08

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$19.59

28012A

REFLECTOR-REFLEX

28012-0002

$19.59

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

56054

MARK,IGNITION SWITCH

56054-0969

Unavailable

92027

COLLAR

92027-1045

$4.18

92075

DAMPER

92075-1564

$4.15

92145

SPRING,REAR BRAKE SWITCH

92145-0091

$2.80

92154

BOLT,SOCKET,6X10

92154-1693

$1.47

92154A

BOLT,SOCKET,6X22

92154-1810

$2.95

92154B

BOLT,TORX,6X22

92154-1858

$3.01

92200

WASHER,6X20X1.6

92200-0212

$2.31

92210

NUT,FLANGED,5MM

92210-0007

$1.90
